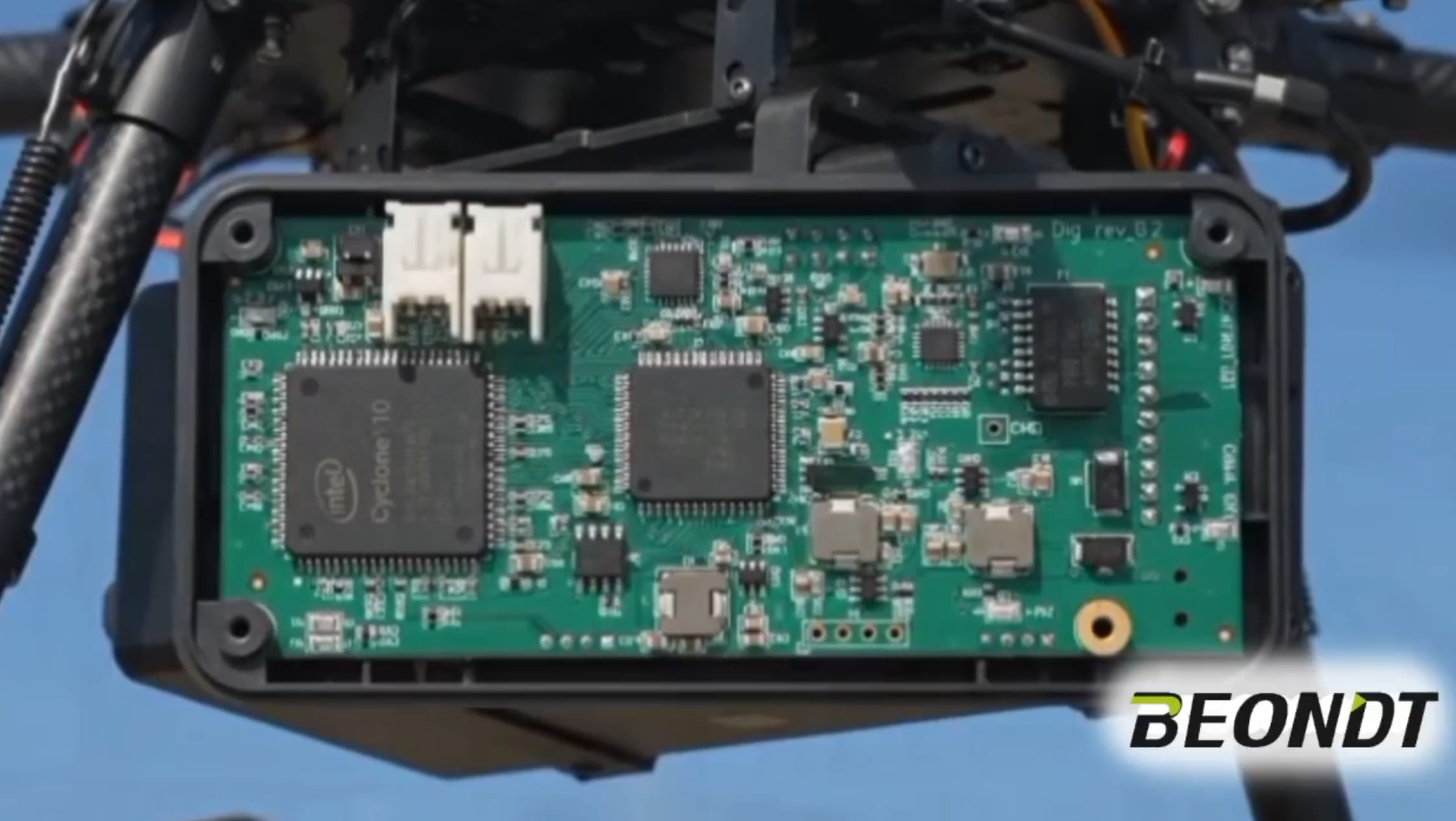

DT2022 Pulsed Eddy Current Module is an open-architecture module specially designed for aerial NDT (Non-Destructive Testing) in industrial applications. It supports secondary development and comes with host PC software. It utilizes the UDP communication protocol. It is typically used integrated into robotic systems, UAV (drone) platforms, and machine tool inspection systems.
Item No :
2022Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
GREENShipping Port :
SHANGHAILead Time :
30DAYS
|
Parameter Item
|
Specification
|
Description
|
|---|---|---|
|
Wall Thickness Measurement Range
|
≤ 30 mm
|
When insulation layer thickness is 200mm and there is a metal cladding on top, the detectable metal layer thickness is up to 30mm.
|
|
Cladding Penetration Capability
|
≤ 200 mm
|
Can penetrate non-magnetic materials such as insulation layers and foam.
|
|
Metal Cladding Penetration
|
≤ 1 mm
|
Can penetrate metal protective layers such as aluminum or iron sheeting.
|
|
Measurement Accuracy
|
Error ≤ 10%
|
Wall thickness measurement error range.
|
|
Resolution
|
5% (volume ratio)
|
Sensitivity for identifying corrosion defects.
|
|
Applicable Pipe Diameter
|
≥ 80 mm
|
Minimum detectable pipe diameter.
|
|
Operating Temperature
|
-150℃ ~ +600℃
|
Adaptable to high-temperature or low-temperature working conditions.
|
|
Stainless Steel Probe Dimensions
|
99mm x 70mm x 75mm
|
Relatively compact probe size.
|
|
Carbon Steel Probe Dimensions
|
140mm x 70mm x 65mm
|
Relatively compact probe size.
|
|
Battery Life
|
≥ 8 hours
|
Continuous operating time with built-in lithium battery.
|
EMA1000 High-temperature EMA ultrasonic thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
Details
This EMAT module is mainly used to be mounted on carriers such as robots and drones to solve the challenges of aerial inspection.
Details
EMA1800 High-temperature EMA(electromagnetic acoustic) thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
Details
The EMA1900 EMAT thickness gauge is used for corrosion detection of metal materials such as storage tanks, metal plates, and oil and gas pipelines. It requires no coupling agent and does not need to grind the surface of the metal object; simply place the gauge on the object's surface to perform the measurement. This saves manpower, material resources, and financial resources while ensuring safety.
Details
EMA3800 High-temperature ultrasonic thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
Details
M1 ultrasonic on-line corrosion monitoring system is a non immersion monitoring system.Our non-intrusive systems use electromagnetic acoustic transducer sensor technology and wireless data delivery to continuously monitor for pipework metal loss from corrosion or erosion in the most difficult environments. Due to the use of electromagnetic acoustic transducer non-destructive testing methods, the probe and metal parts can be lifted by 4mm during measurement, so there is no need to clean the workpiece and it has no damage to the workpiece itself. In addition, the system can also simultaneously monitor changes in coating thickness to help users better assess the corrosion status and remaining service life of the object.
Details
EMA2800 thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals. The working gap between the sensor and the metal can be lifted up to 8mm.
Details
The BEONDT DT1001 pulsed eddy current tester is a portable non-destructive testing device designed for rapid screening of corrosion and thickness reduction in metal structures with insulation or coating layers. The DT1001 is the basic, practical model in BEONDT's pulsed eddy current series, emphasizing rapid on-site screening and cost-effectiveness, making it suitable for industrial users who require regular large-area corrosion surveys. For more complex or higher-precision testing needs, BEONDT tech also offers upgraded models (such as the DT2008) to meet different scenarios.
