16L Agricultural Spraying Drone

16L Agricultural Spraying Drone

This spraying drone makes sense, offering a fully-automated, targeted and precise solution, and replacing labour-intensive, time-consuming, and potentially harmful use of backpack sprayers and other equipment.

  • Item No :

    6783
  • Order(MOQ) :

    1
  • Payment :

    T/T
  • Product Origin :

    CHINA
  • Color :

    Customized
  • Shipping Port :

    SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.
  • Lead Time :

    5-20Days

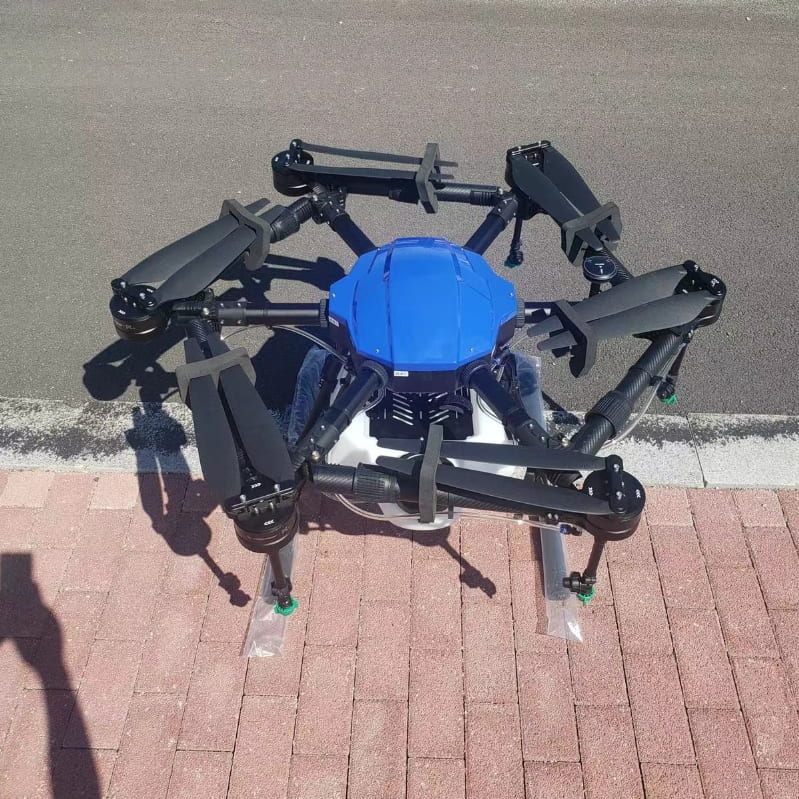

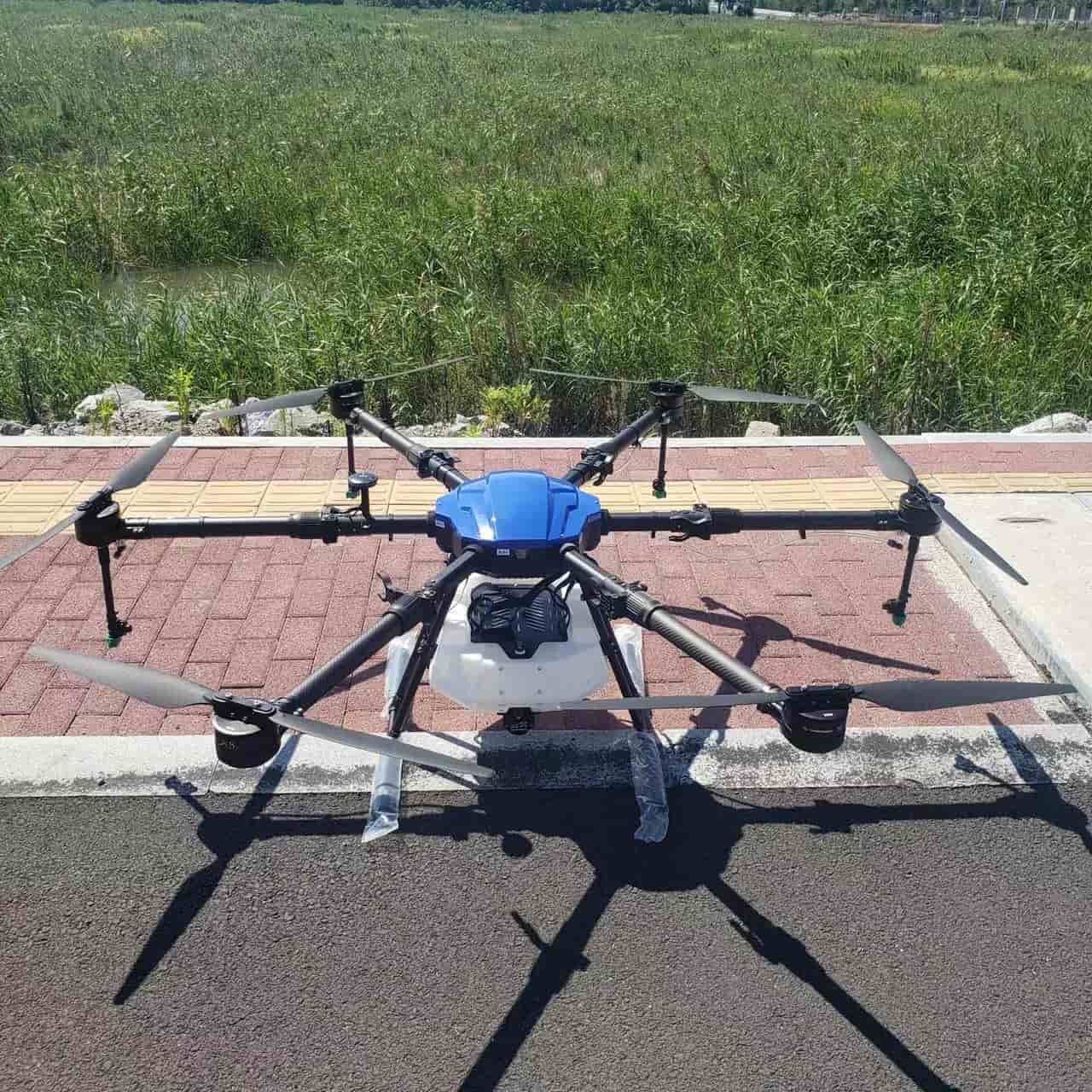

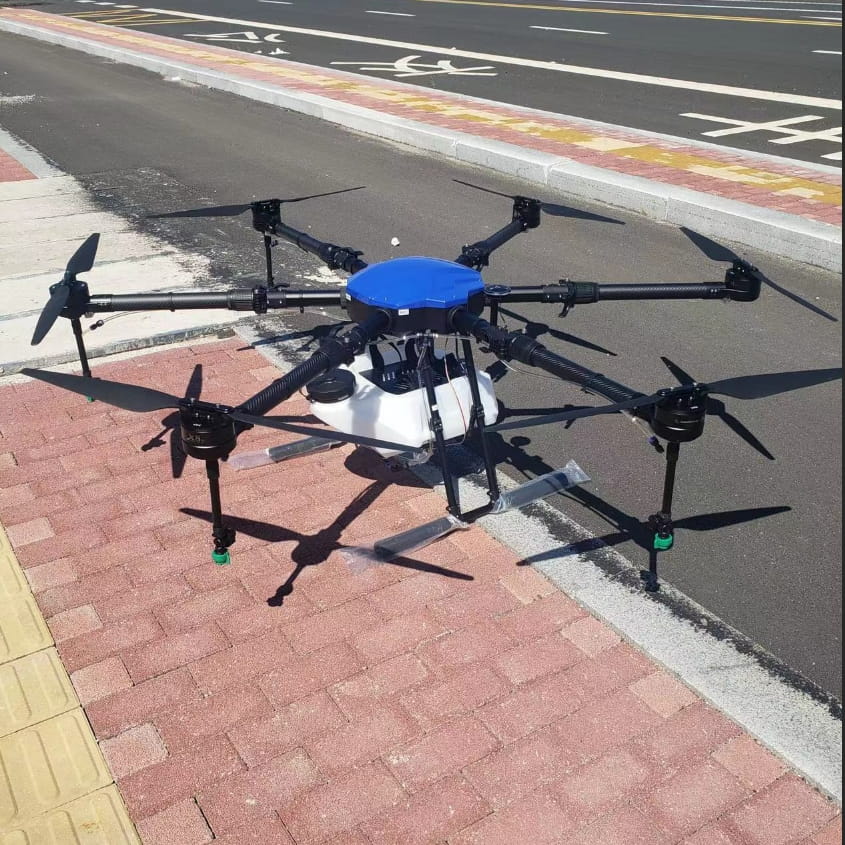

16L Agricultural Spraying Drone

16L agricultural spraying drone/UAV specially makes sense, offering a fully-automated, targeted and precise solution, and replacing labour-intensive, time-consuming, and potentially harmful use of backpack sprayers and other equipment. Spraying drones are more efficient and more effective for farming than manual methods.

Product Features

1. Three section exquisite fuselage: Adopting a three-stage fuselage layout design: flight control, medicine box, and battery, the structure is exquisite and the shape is unique.

2. Rectangular layout scheme: adopting a flat rectangular layout, extending the arm to both sides, maximizing the distance between nozzles, and thus increasing the spraying area.

3. Quick disassembly of medicine box and battery, easy to operate, time-saving and labor-saving.

4. Ultra small body, fast folding, convenient for transportation.

5. Modular design, easy disassembly, convenient maintenance.

6. Intelligent autonomous operation: It can achieve AB point operation and route planning operation.

Technical Parameter

Spread dimension

1720*1500*556mm

Folded dimension

1073*956*556mm

Symmetrical wheelbase

1628mm

Drone weight (including battery)

18.5kg

Operating load

16L

Maximum weight during takeoff

36kg

Spray flow rate

0.2-4.5L/min

Spray width

4.5m

Atomization area

110° fan shaped high-pressure nozzle

Operation height

1-5m(distance from plants)

Operation speed

3-12m/s

Operation time

8-20min

Wind resistance capability

15m/s

Atomized particles

130~250μm

Recommended working temperature

0~40

Standard battery

12S 22000mAh intelligent lithium battery

Note:

1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.

2. Customized production can be carried out according to the customer's drawings and technical parameters.

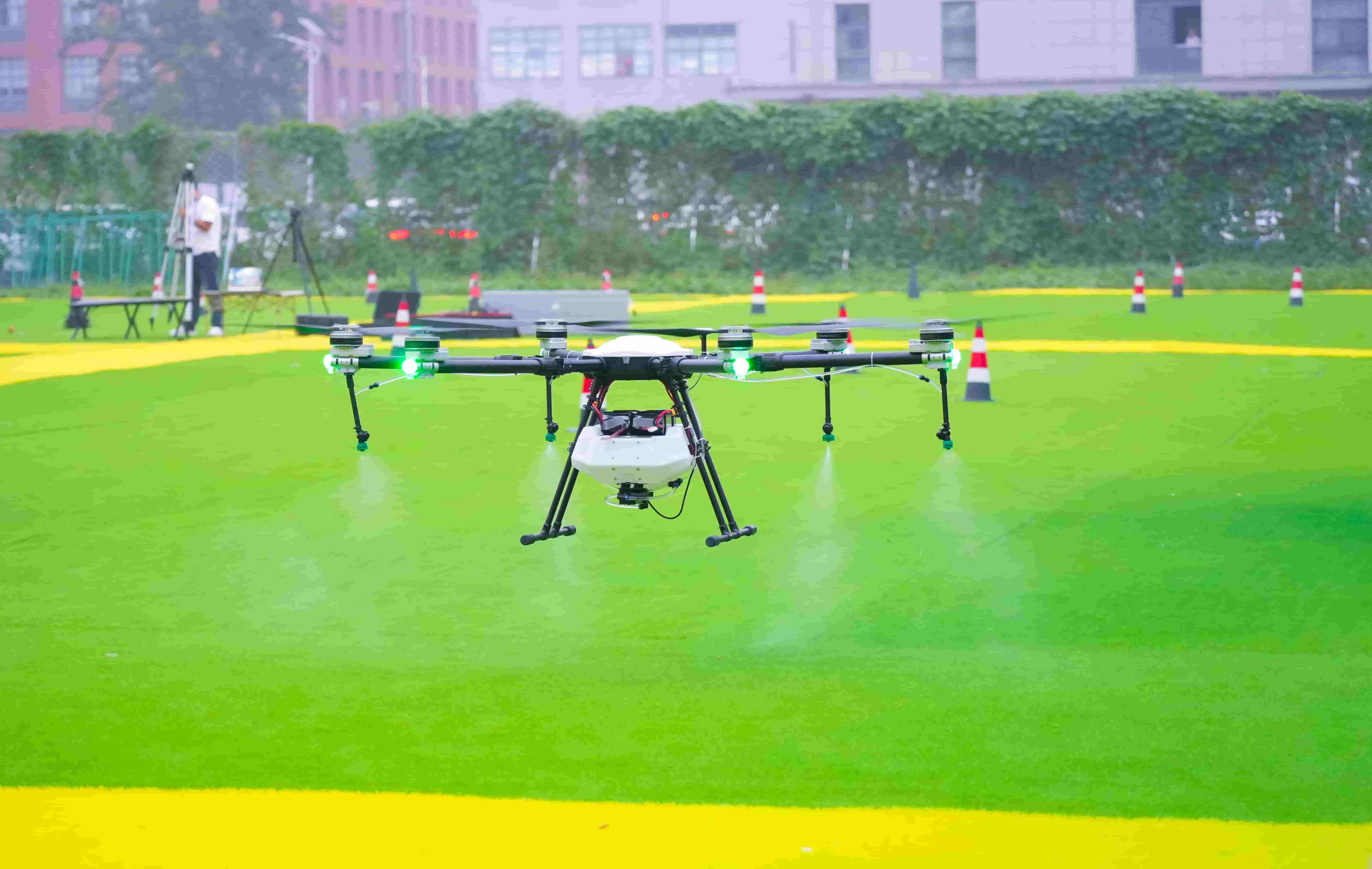

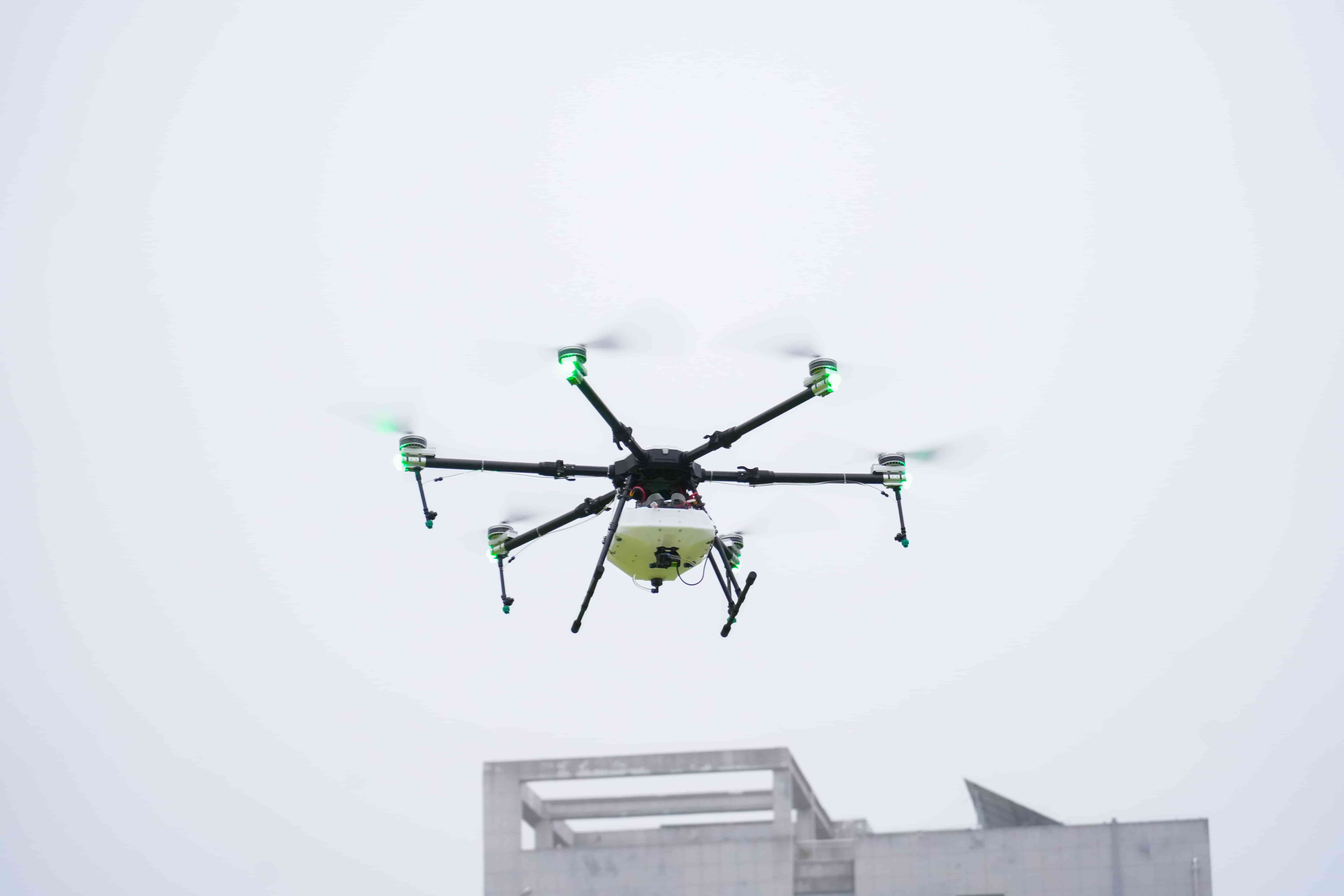

Agricultural Plant Protection Spraying Drone
