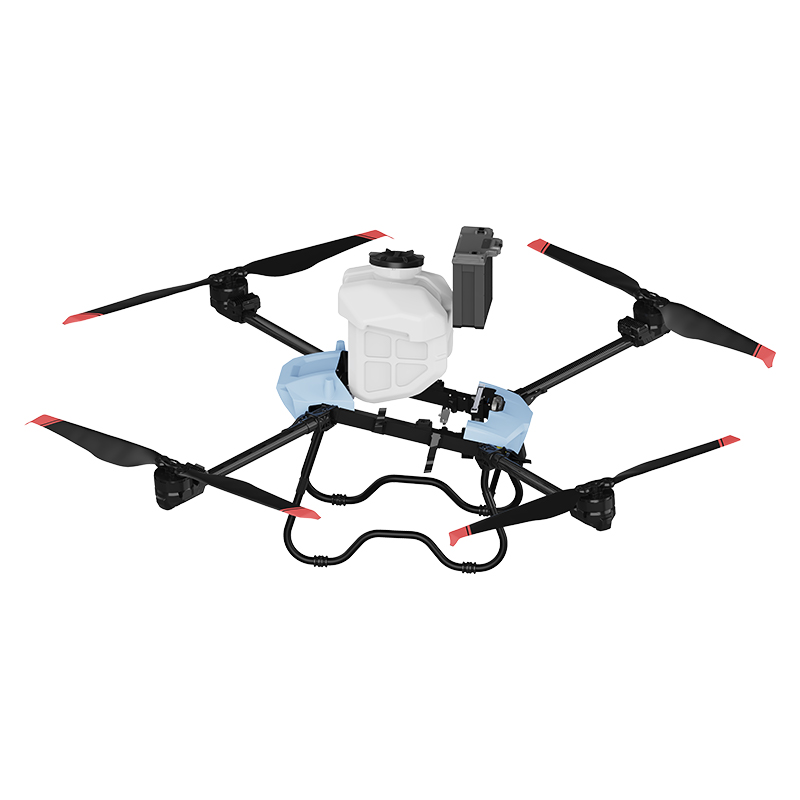

40L Fertilizer, Sowing, Irrigation, Pesticide Spreading Agriculture Sprayer Drone
This farming sprayer drone can is specially designed for fertilizing, sowing, irrigation and pesticide spreading.
Item No :
40LOrder(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :
3-15 days40L Fertilizer, Sowing, Irrigation, Pesticide Spreading Agriculture Sprayer Drone

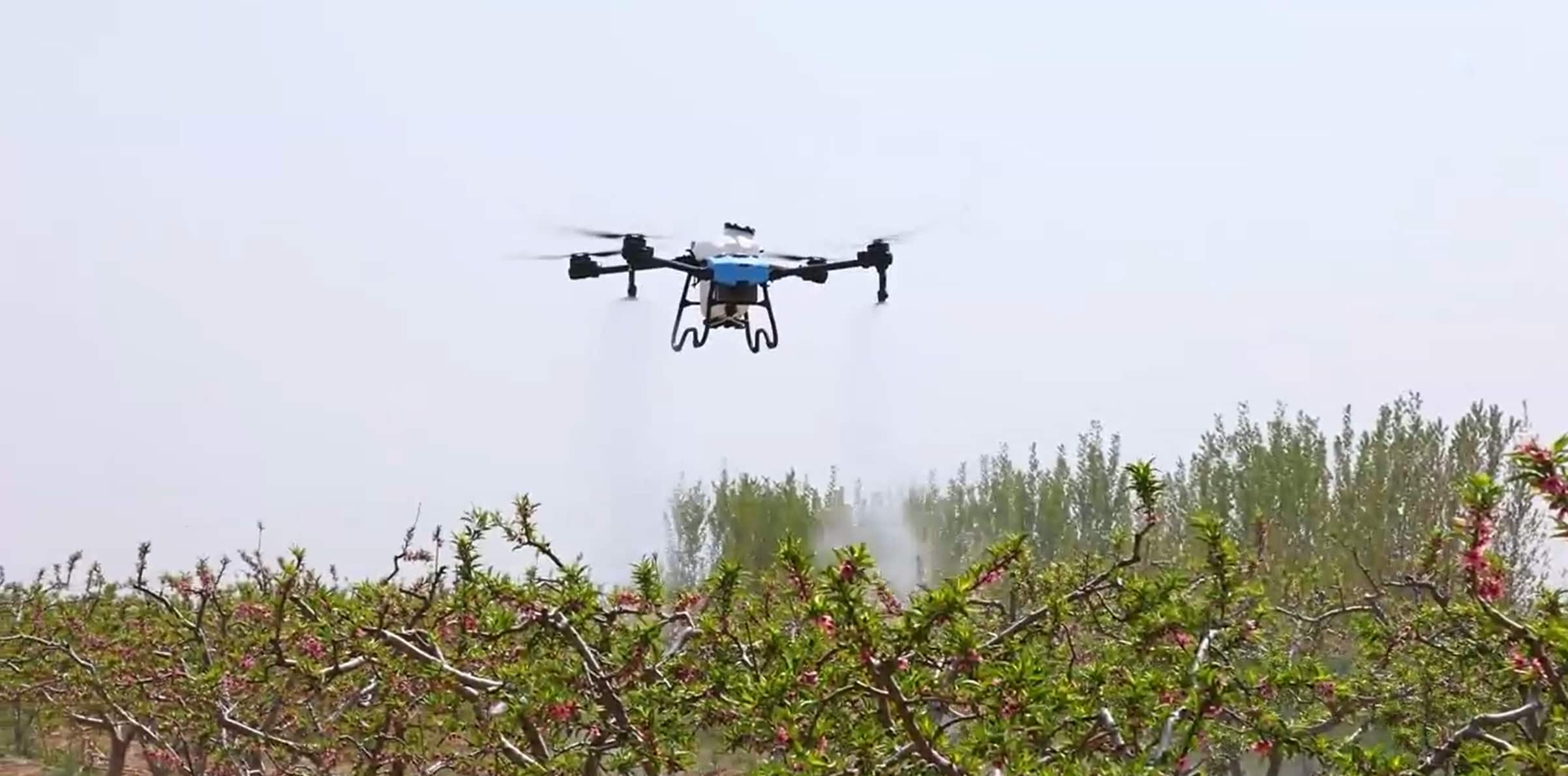

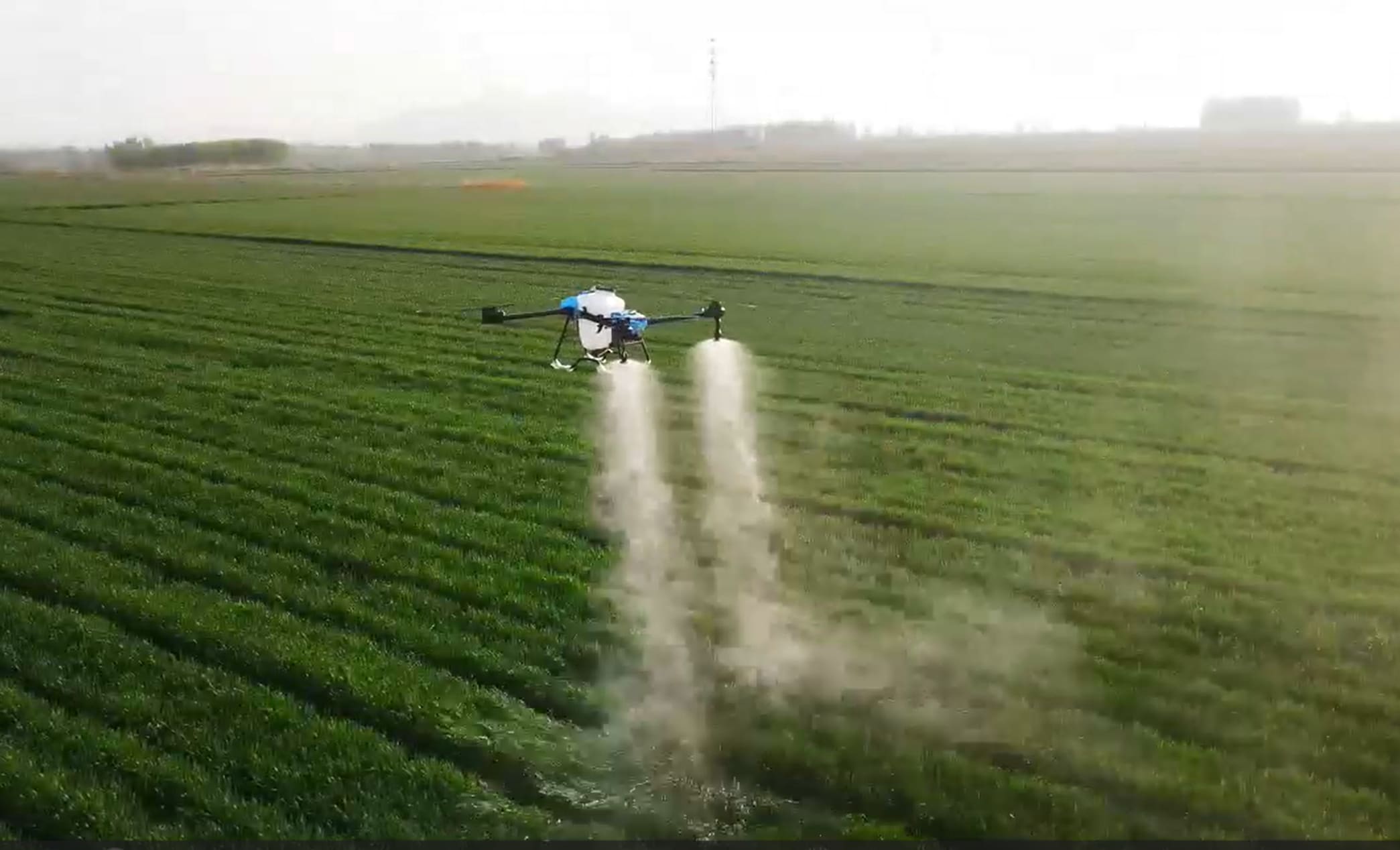

40L spraying drone can spray orchards through intelligent control. The device can operate autonomously through flight control navigation, and the operator can grasp the current status and progress of spraying at any time through the display. 40Lspraying drone accelerates the formation of an aerosol stream by airflow, which increases the penetration of medicine drops to a certain extent, saving labor costs and labor intensity while being more human.
Features:
1. 40L spraying drone is not restricted by terrain and height. It takes off from the field to implement crop operations.

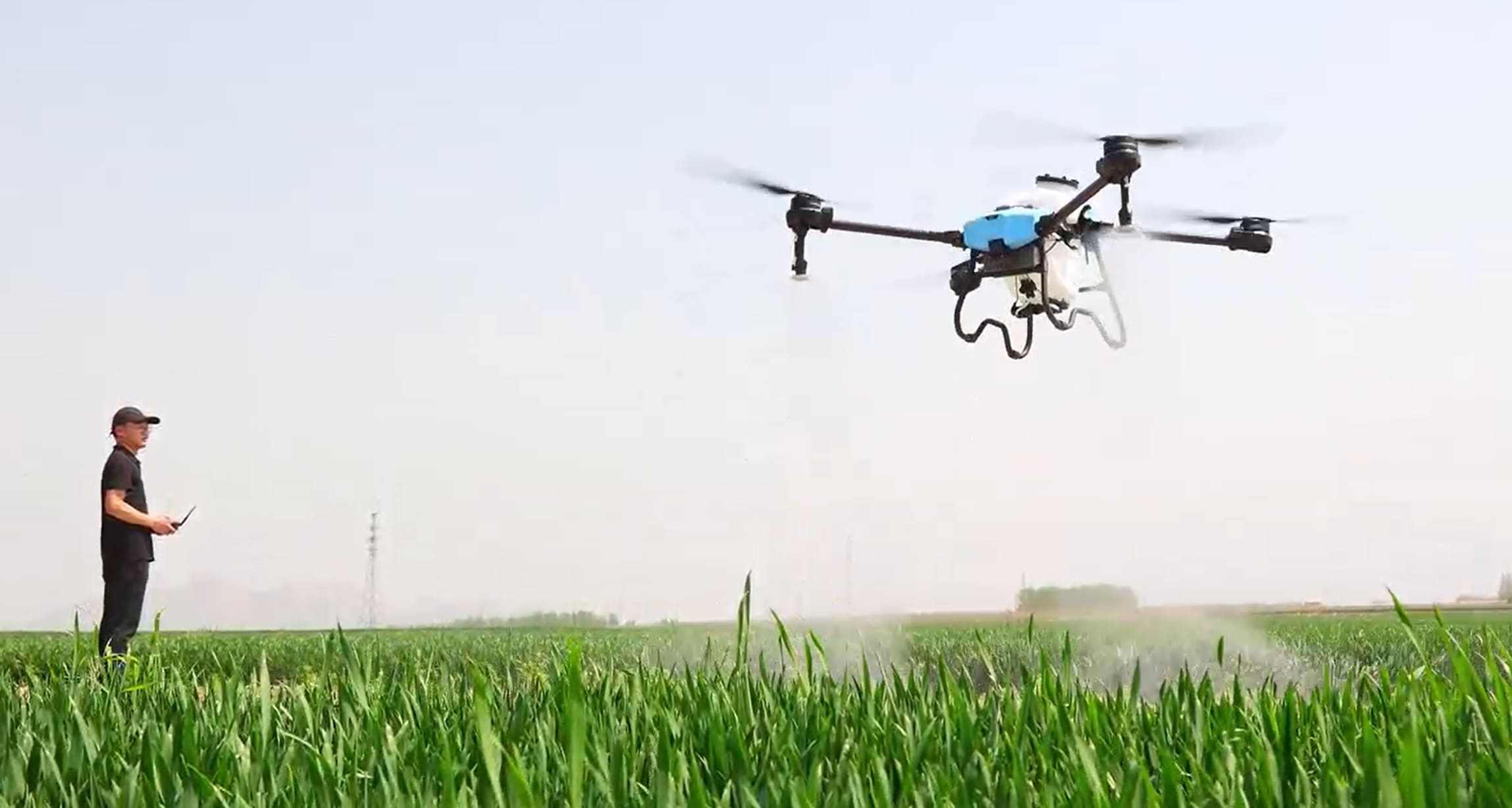

2. Handheld ground station equipment can be used for operation. 40Lspraying drone uses long-distance remote control operation and flight control navigation autonomous operation function. Before spraying operations, map the route of the map and enter it into the internal control system of the ground station. With the spraying device, the spraying operation is completed autonomously.
3. While the aircraft is spraying, the progress of the spraying operation can be observed in real time through the display interface of the handheld ground station.
4. The higher and more uniform the coverage density of the spray solution on the unit area, the better the control effect.
5. The spray drop test of liquid medicine reflects an advantage of the loss of pesticides by spraying with drone. When the liquid spray drops out from the sprayer, It is accelerated by the downward airflow of the 4 rotors to form an aerosol stream, which directly increases the penetration of the medical liquid mist droplets to the crops, reduces the degree of pesticide loss, and the chemical liquid deposition amount and medical liquid coverage are better than conventional Therefore, the control effect is better than traditional, and it can also prevent pesticides from causing pollution to the soil.
Product parameters
| Size | 2560 × 2460 × 825 mm |
| Maximum effective takeoff weight | 72 KG (within 1000 meters above sea level) |
| Battery capacity | 14S |
| Flight speed | 8m/s |
| Flight time | 8min and 30s |
| Spraying tank | 35L |
| Spreading tank | 50L |
| Tank capacity | 35KG |
| Spray efficiency | 200-600 acres per hour |
| Spray amplitude | 6-10m (3.5m height) |
| Atomized particle diameter | 50-500um |
| Fertilizer tank capacity | 50L |
| Broadcasting efficiency | 80 acres per hour |
| Spray amplitude | 6-12m (3.5m height) |

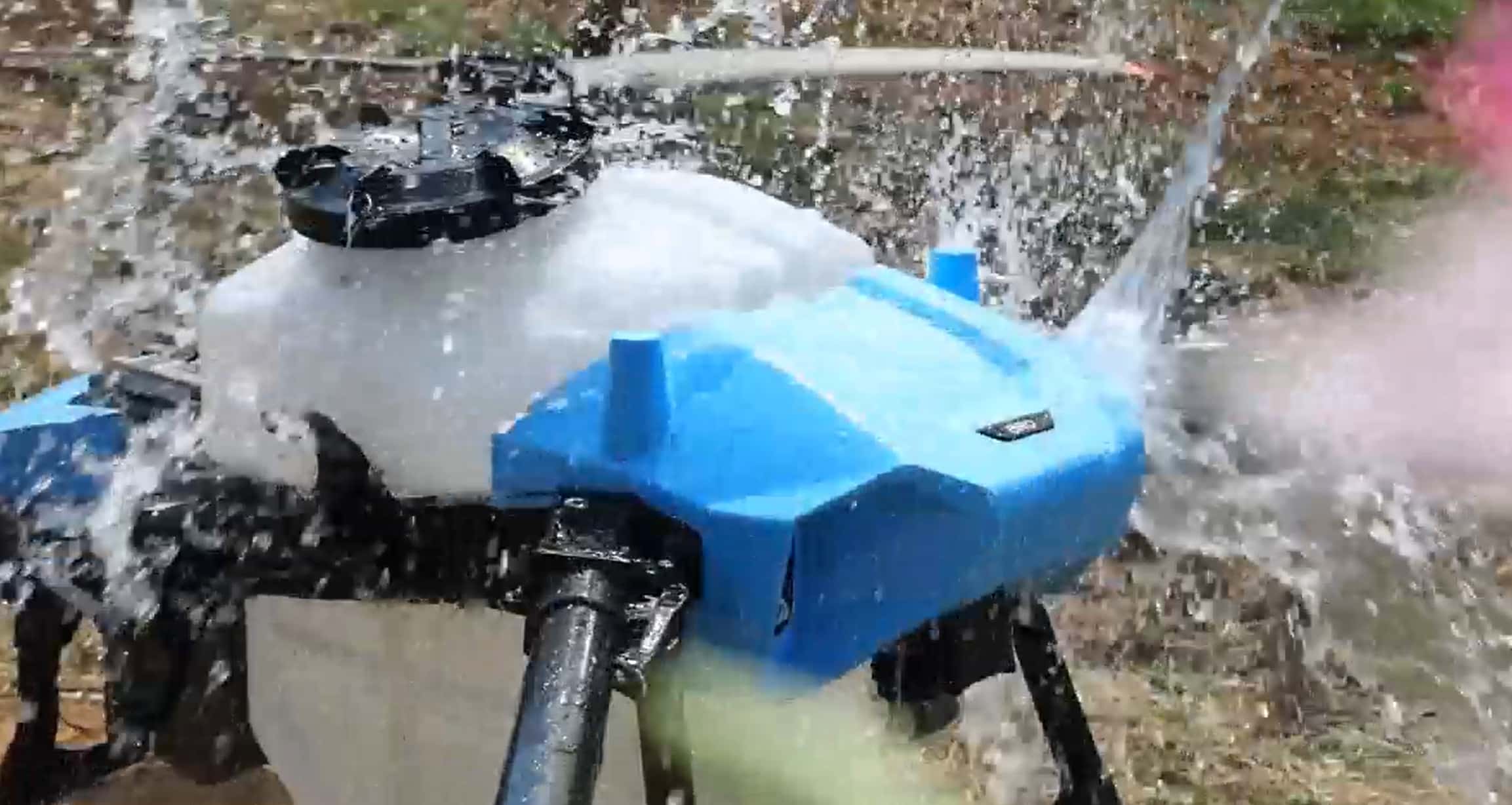

| Waterproof | IP67 |
| Atomized particle diameter | 0.5-10mm dry solid particles |
Crop spraying drones are used for agricultural and forestry plant protection operations. This type UAV consists of three parts: a flight platform, a navigation flight controller, and a spraying mechanism. It can achieve spraying operations through ground remote control or navigation flight control, and can spray pesticides, seeds, powders, etc.
Details
Agricultural drone spraying is becoming an increasingly popular application, helping to maintain crop health and yields.Drones are being deployed for spraying for disease, weed, and pest control, as well as spreading pesticides and fertilisers.
Details
This spraying drone makes sense, offering a fully-automated, targeted and precise solution, and replacing labour-intensive, time-consuming, and potentially harmful use of backpack sprayers and other equipment.
Details
Crop spraying, seed spreading and land surveying.G20 is an unmanned aerial vehicle used for agricultural and forestry plant protection operations.
Details
Data-driven agriculture for the new generation of farmer. Farming drones are becoming a key driver of innovation: Helping the new generation of farmers automate crop spraying and seeding, monitor and inspect crop growth and improve farming efficiency, leading to increased outputs and maximising productivity.
Details
New intelligent manufacturing.Capable of carrying a maximum spray volume of 50L, with 70L spray capacity and an ultra light fuselage structure.Lightweight and Foldable.Performance good.
Details
This farming sprayer drone can is specially designed for fertilizing, sowing, irrigation and pesticide spreading.
