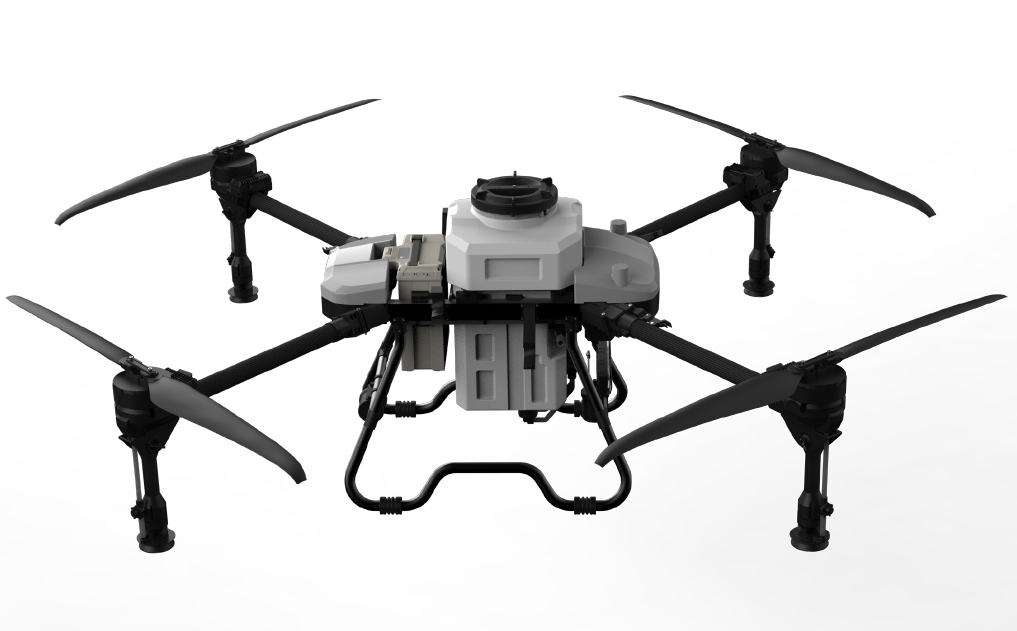

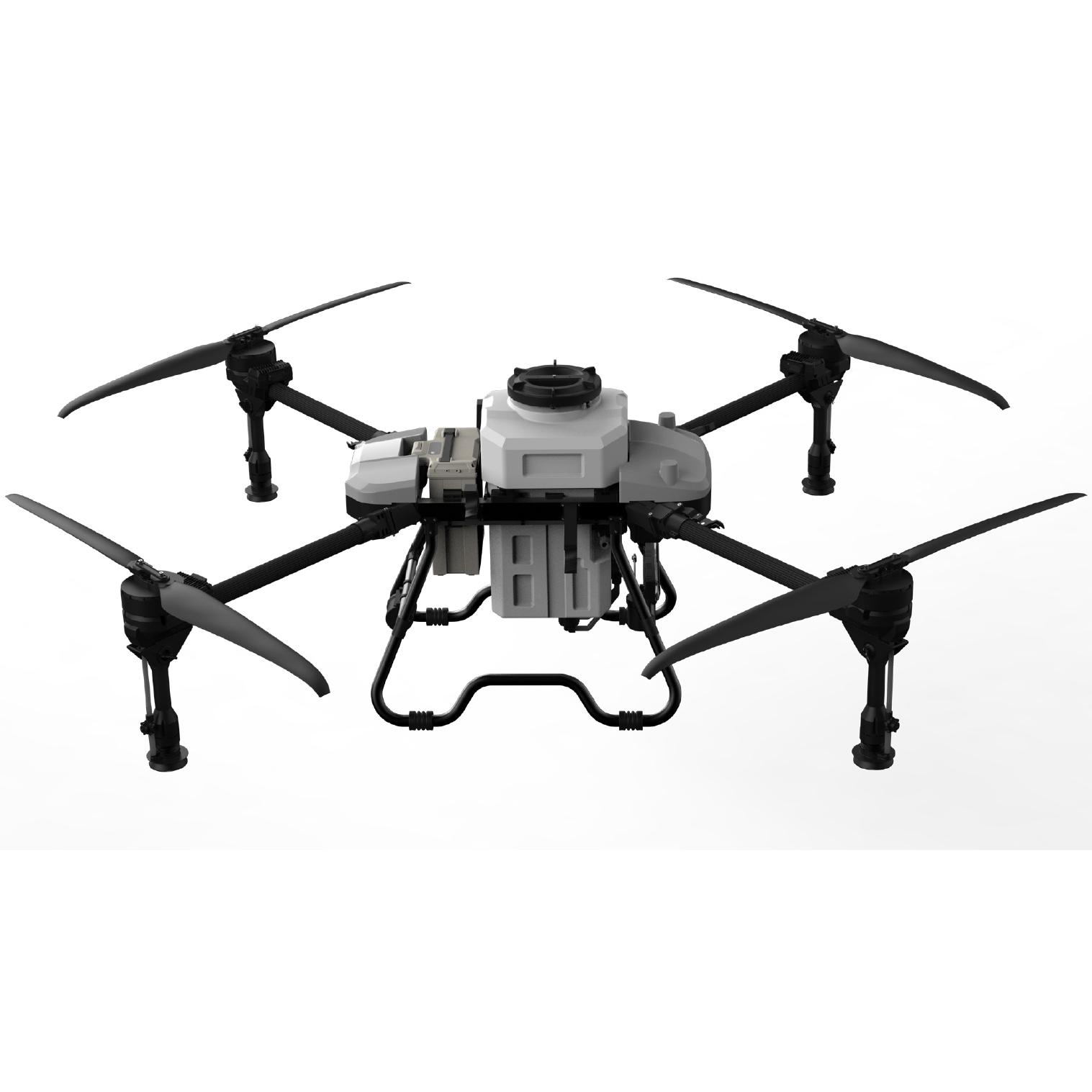

New intelligent manufacturing.Capable of carrying a maximum spray volume of 50L, with 70L spray capacity and an ultra light fuselage structure.Lightweight and Foldable.Performance good.
Item No :
R60Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :

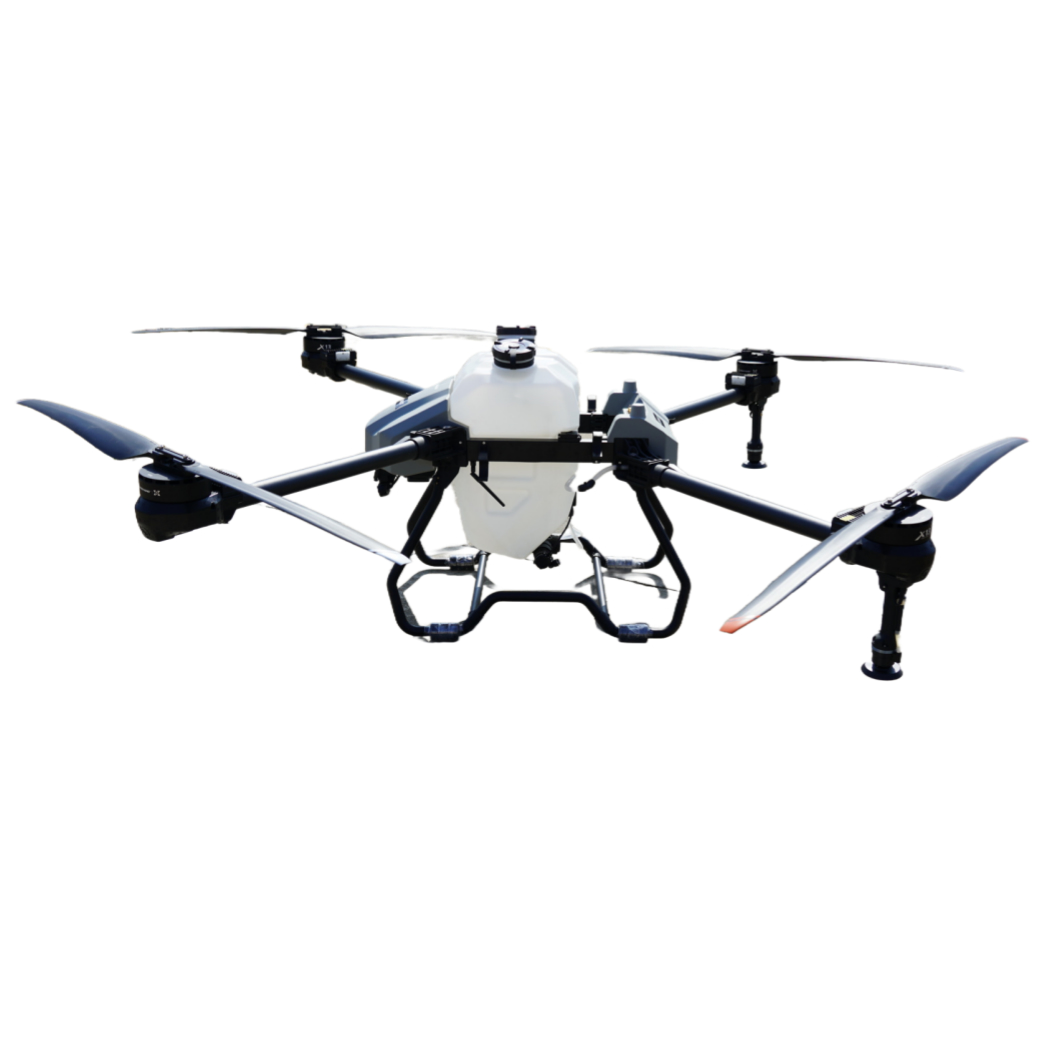

SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.50L Fertilizer Pesticide Herbicide Spraying Drone
Product Features：

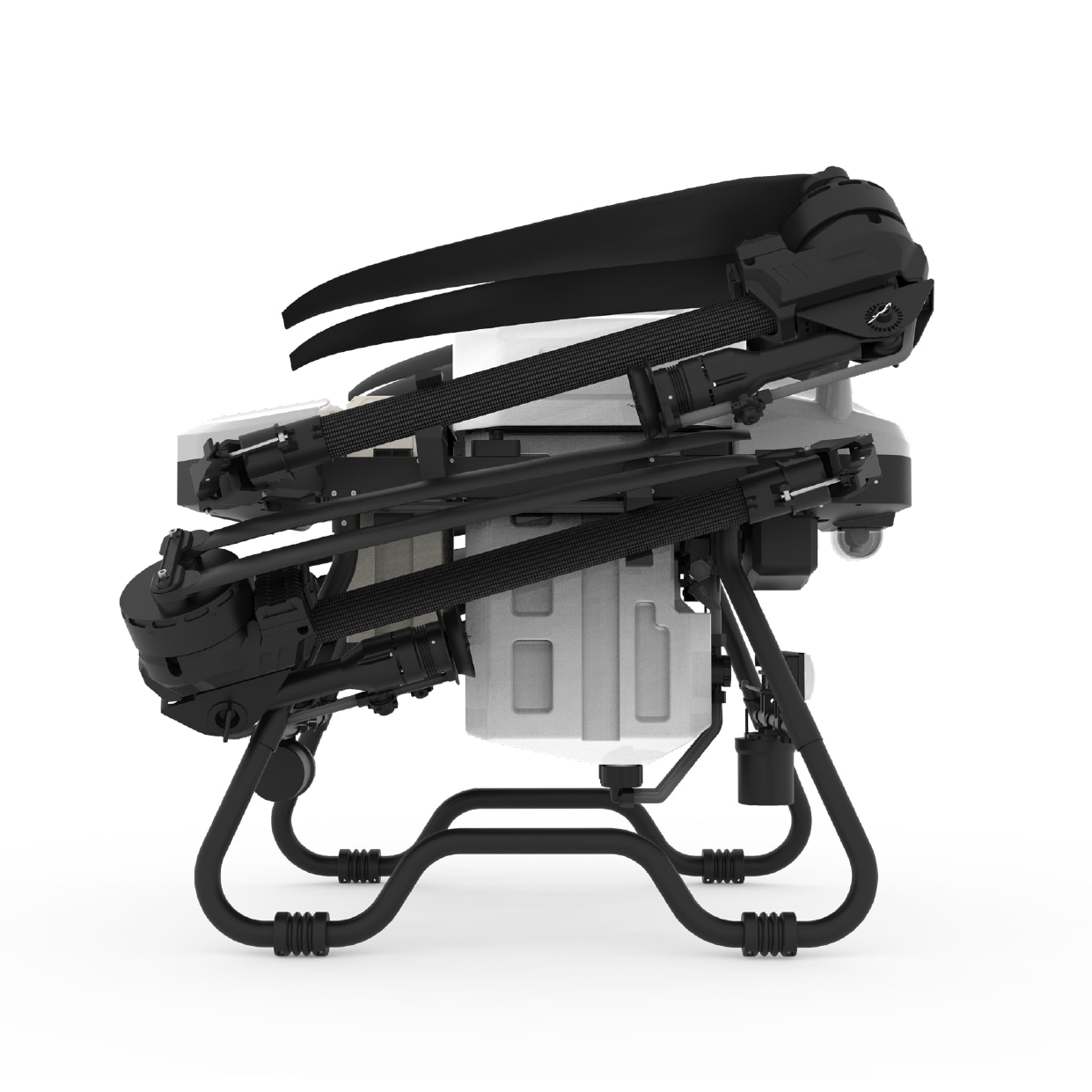

Lightweight and Foldable
Modular design

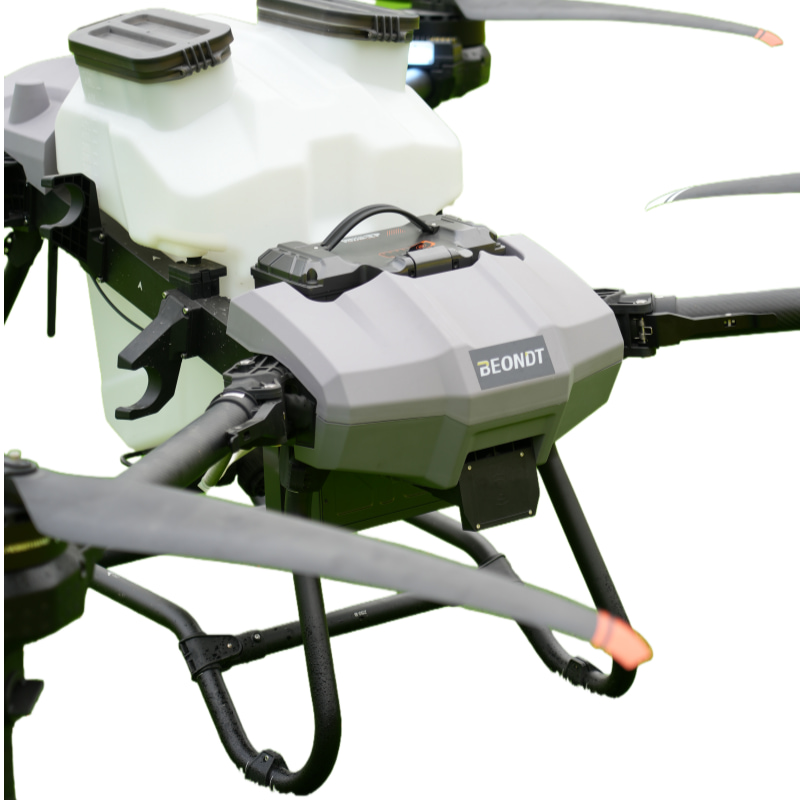

Built in integrated flight control, integrated electronic control board, dual antenna RTK module, GPS high-precision weighing module, dual tube flowmeter, waterproof rating IP67 for electronic equipment of the whole machine
Front and rear nozzles, no need to turn around
The R60 agricultural crop protection drone comes standard with 4 centrifugal nozzles and 2 brushless water pumps, which can be manually operated without the need to turn around, making it easy to operate.

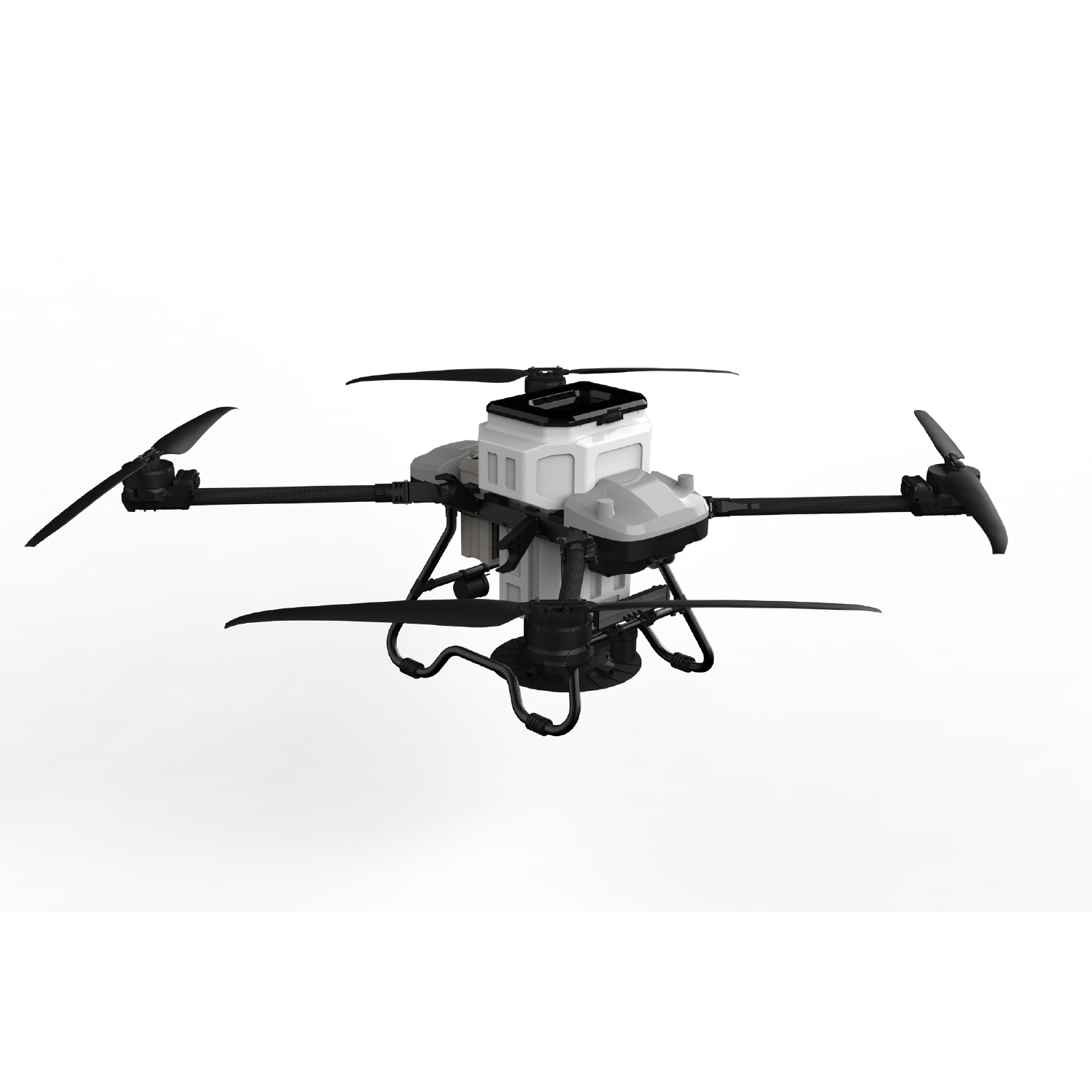

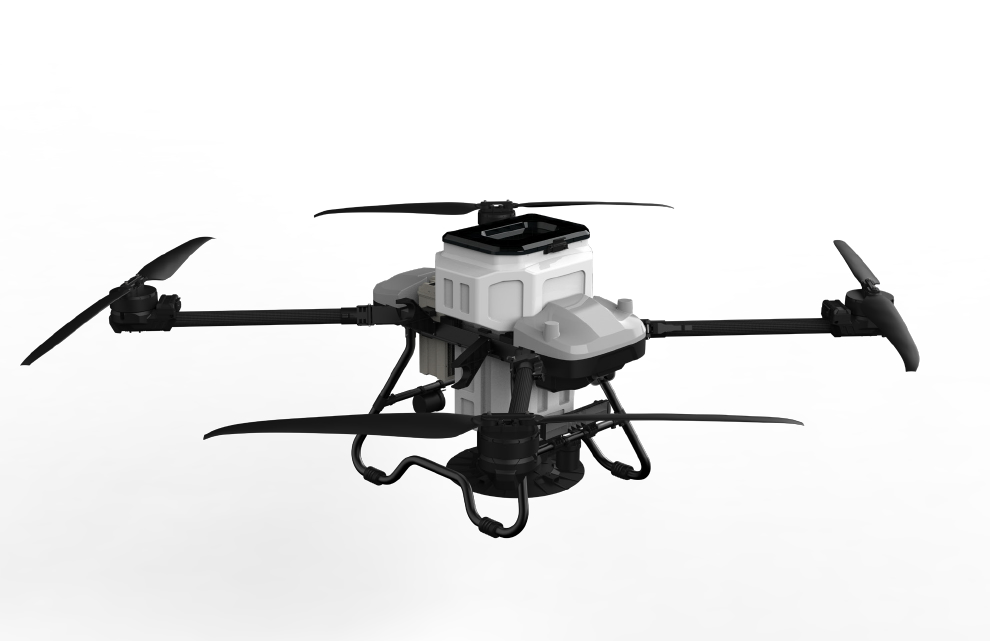

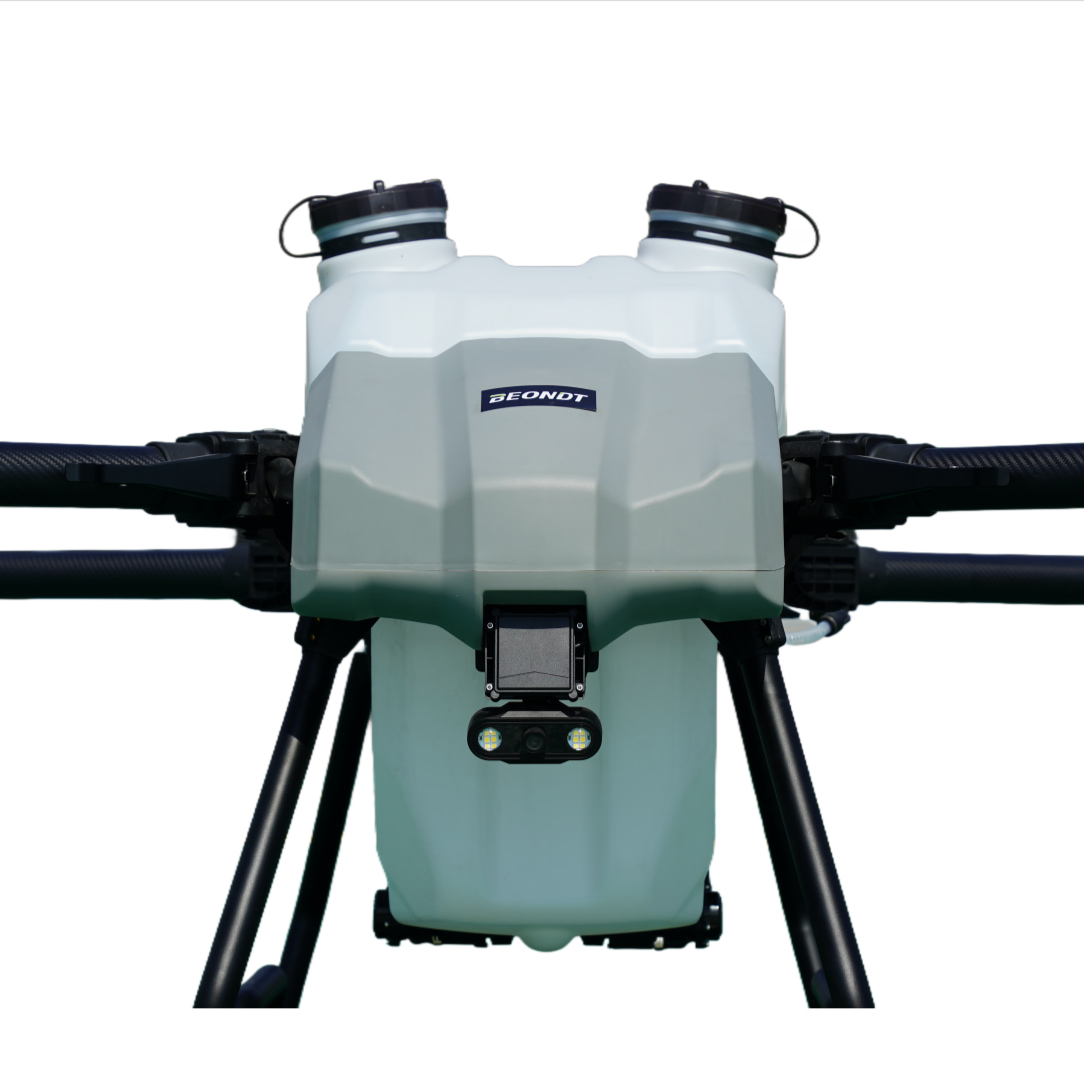

70L broadcasting box
The broadcasting box uses a large-diameter feeding port, greatly improving the feeding efficiency during operation
Multiple homework modes

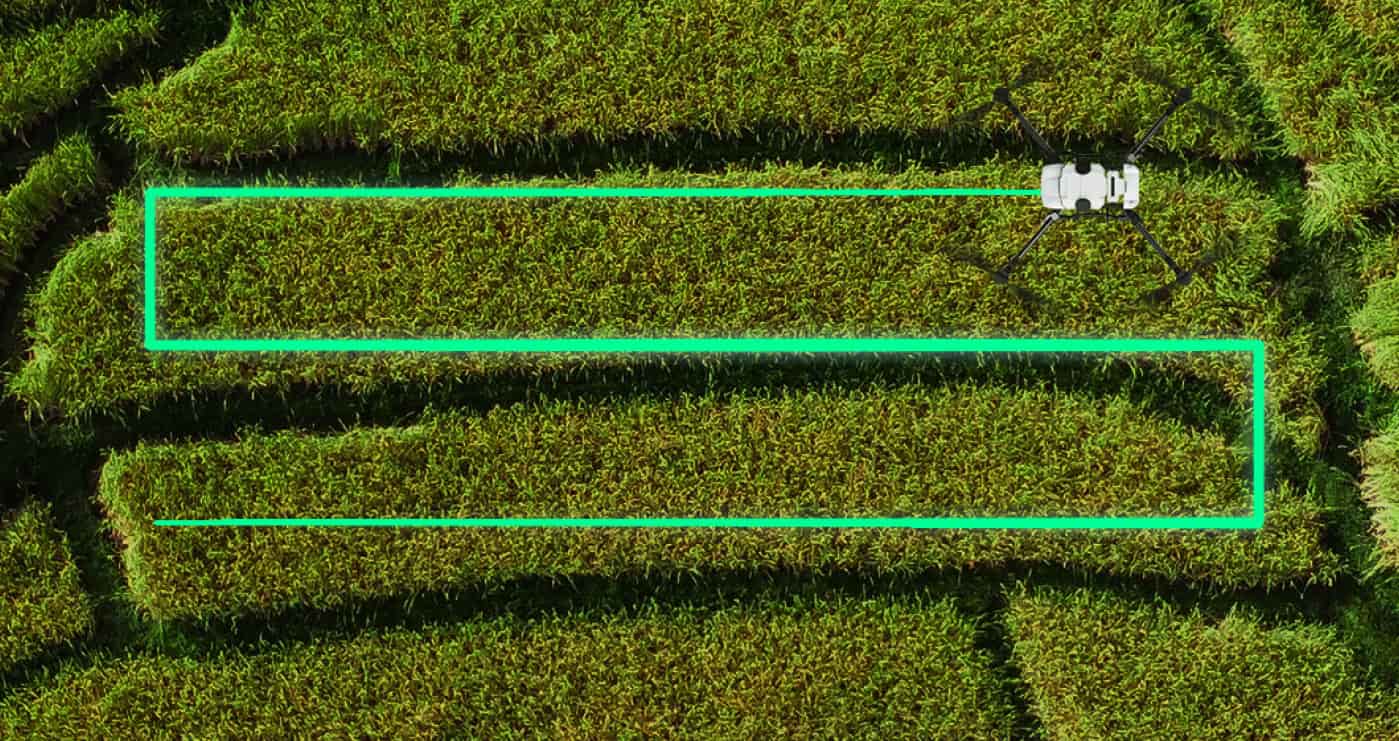

Fully autonomous flight

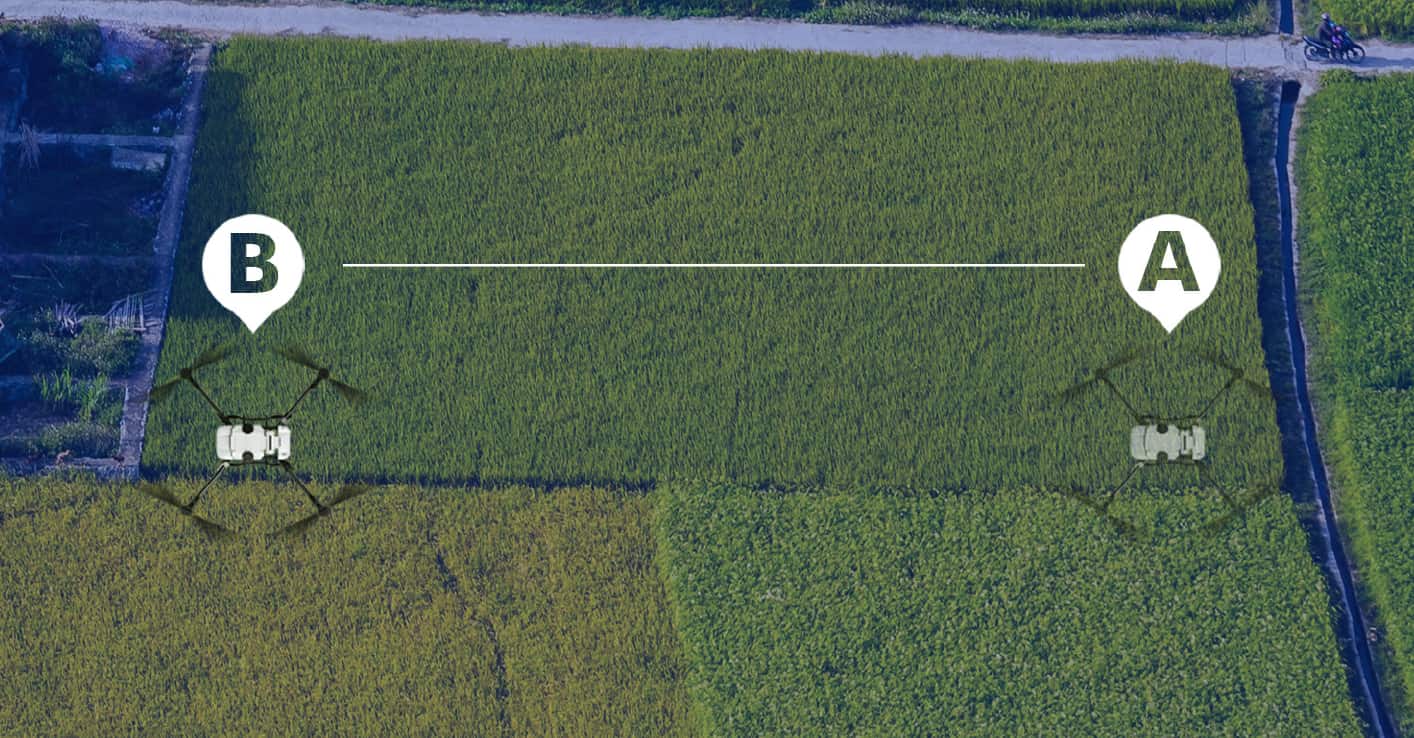

A-B point flight

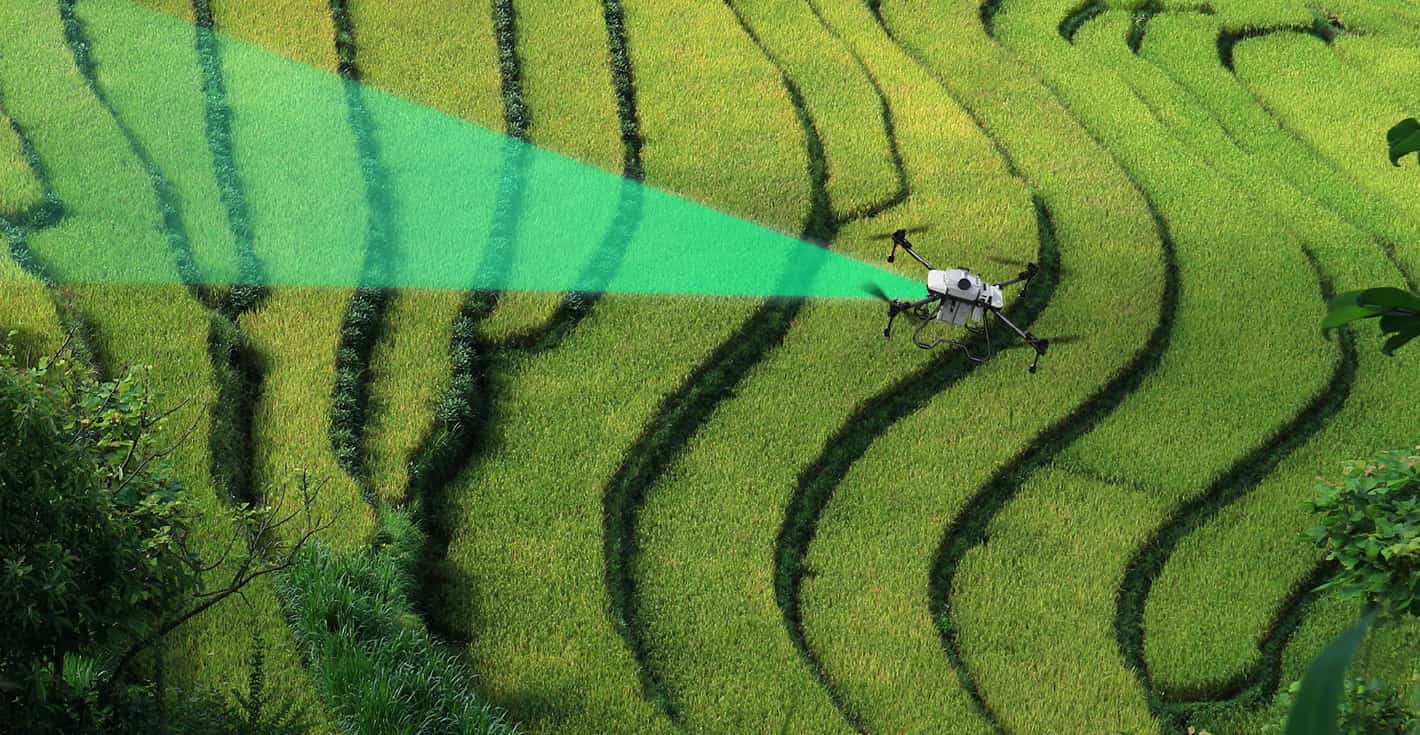

Obstacle avoidance flight
Ground defense flight
Rich homework scenarios
Spraying on farmland
Aquatic broadcasting

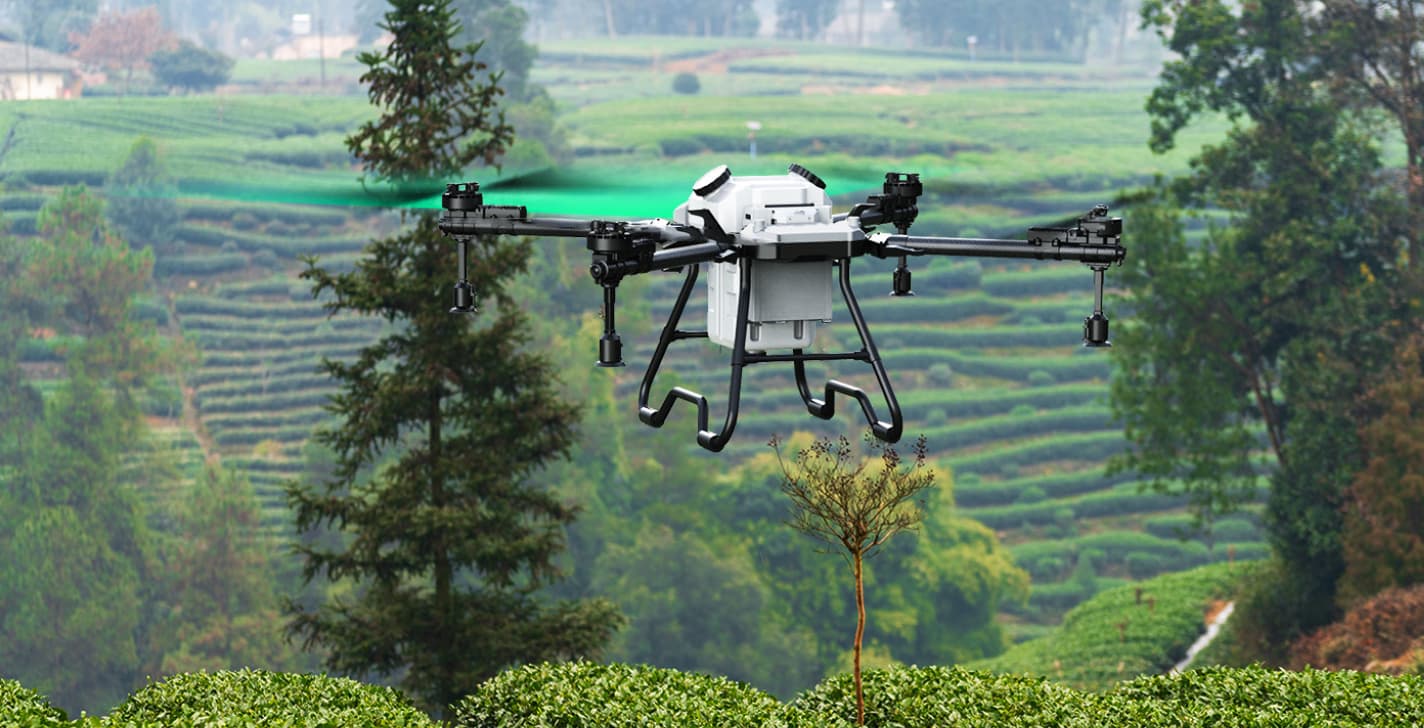

Fruit tree spraying
Forest sowing
Quickly switch homework modes
Complete the task box switch within 5 minutes

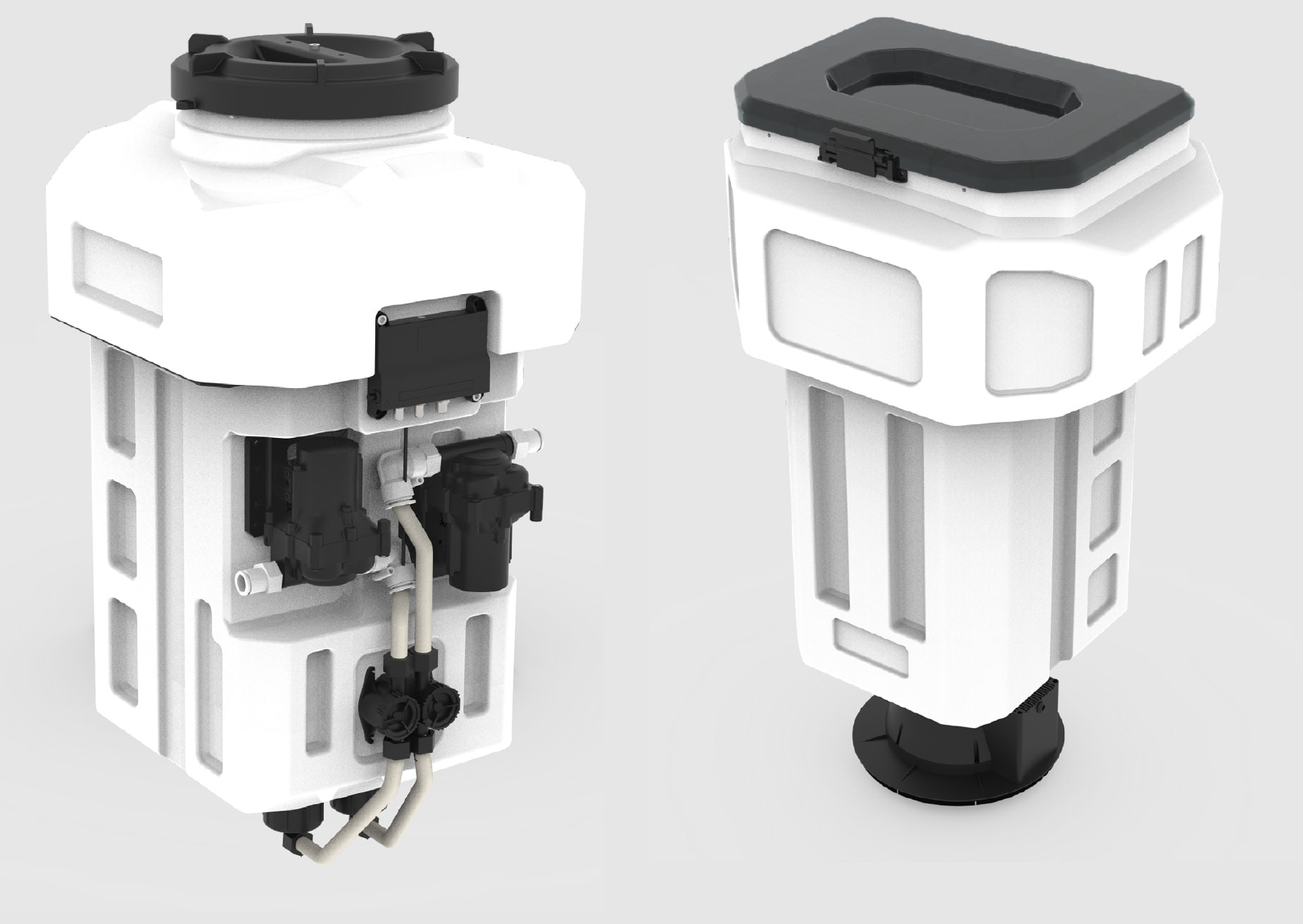

50L spray medicine box 70L broadcasting material box
Intelligent modular components
High precision weighing module
Standard weighing sensor, real-time monitoring of remaining material quantity
Homeworkized data platform
Provide global display and analysis of historical homework data, divided by region, crop protection machine, homework situation, dosage, etc. Any node data record can be statistically analyzed to deeply explore the value of data. It can be browsed through APP, PC, and PAD.
Product parameters
| Wheelbase | 2320mm |
| Size | 2850 × 2850 × 855 mm (arm unfolded, blade unfolded) 1800 × 1775 × 855 mm (arm unfolded, blade folded) 920 × 955 × 920 mm (arm folding blade folding) |
| Total weight (excluding battery) | 34.8KG |
| Standard takeoff weight | 98 KG |
| Maximum effective takeoff weight | 105 KG (within 1000 meters above sea level) |
| Battery capacity | 18S (30000MAH 70.4V) |
| Flight speed | 8m/s |
| Flight time | 8min and 30s(18S@30000 MAH Battery&Takeoff Weight: 100KG) |
| Tank capacity | 50L |
| Spray efficiency | 200-600 acres per hour |
| Spray amplitude | 6-12m (3.5m height) |
| Maximum flow rate | 24L/min |
| Atomized particle diameter | 50-500um |
| Fertilizer tank capacity | 70L |
| Broadcasting efficiency | 80 acres per hour |
| Spray amplitude | 6-12m (3.5m height) |
| Maximum flow rate | 80KG/min |
| Atomized particle diameter | 0.5-10mm dry solid particles |
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
