Agricultural drone spraying is becoming an increasingly popular application, helping to maintain crop health and yields.Drones are being deployed for spraying for disease, weed, and pest control, as well as spreading pesticides and fertilisers.
Item No :
G10Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :

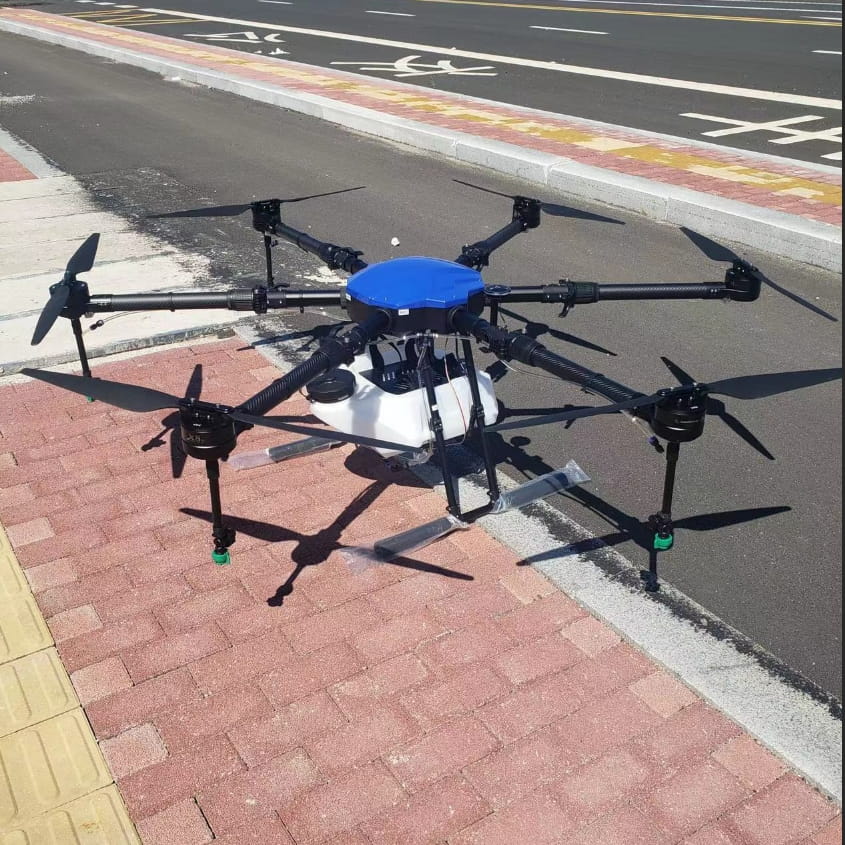

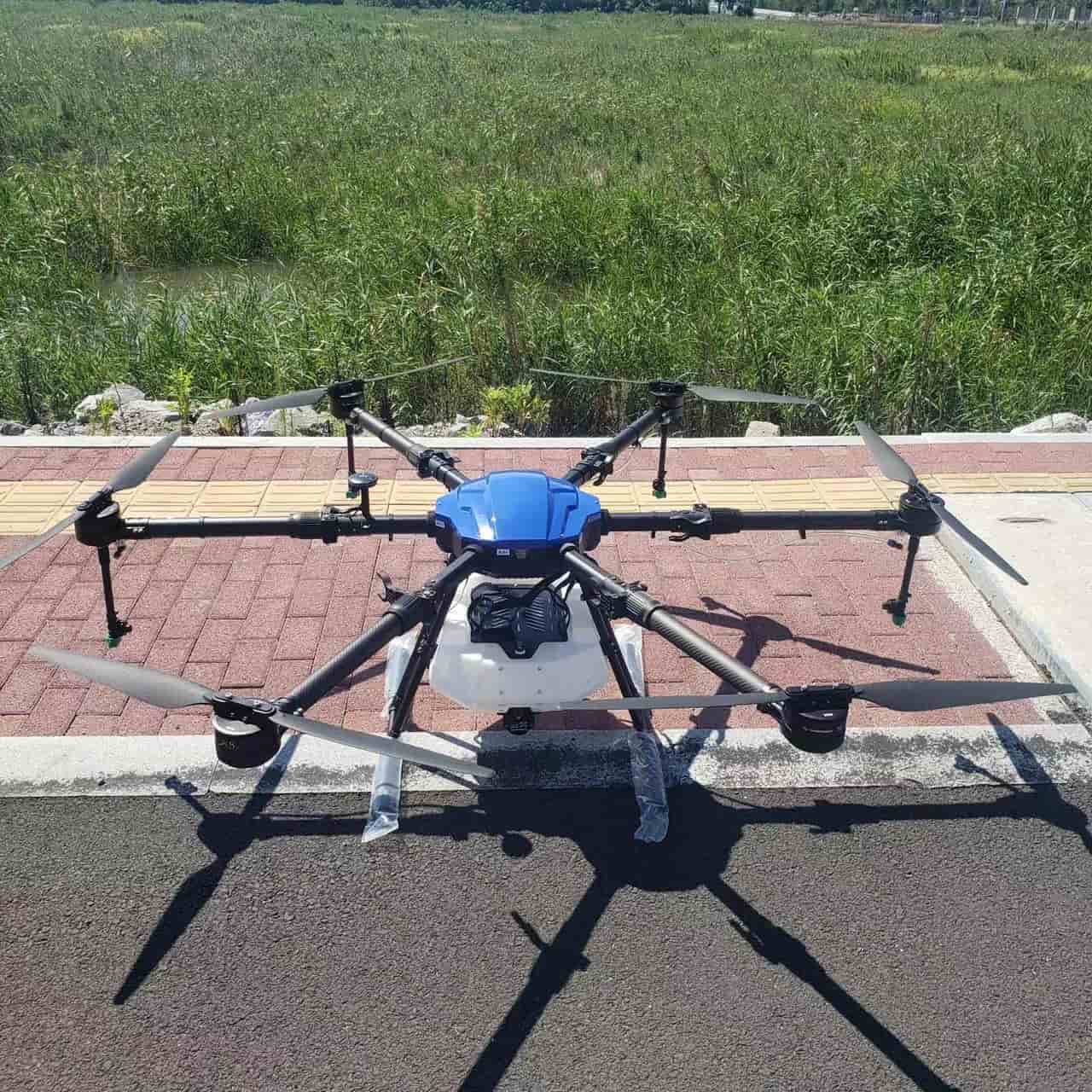

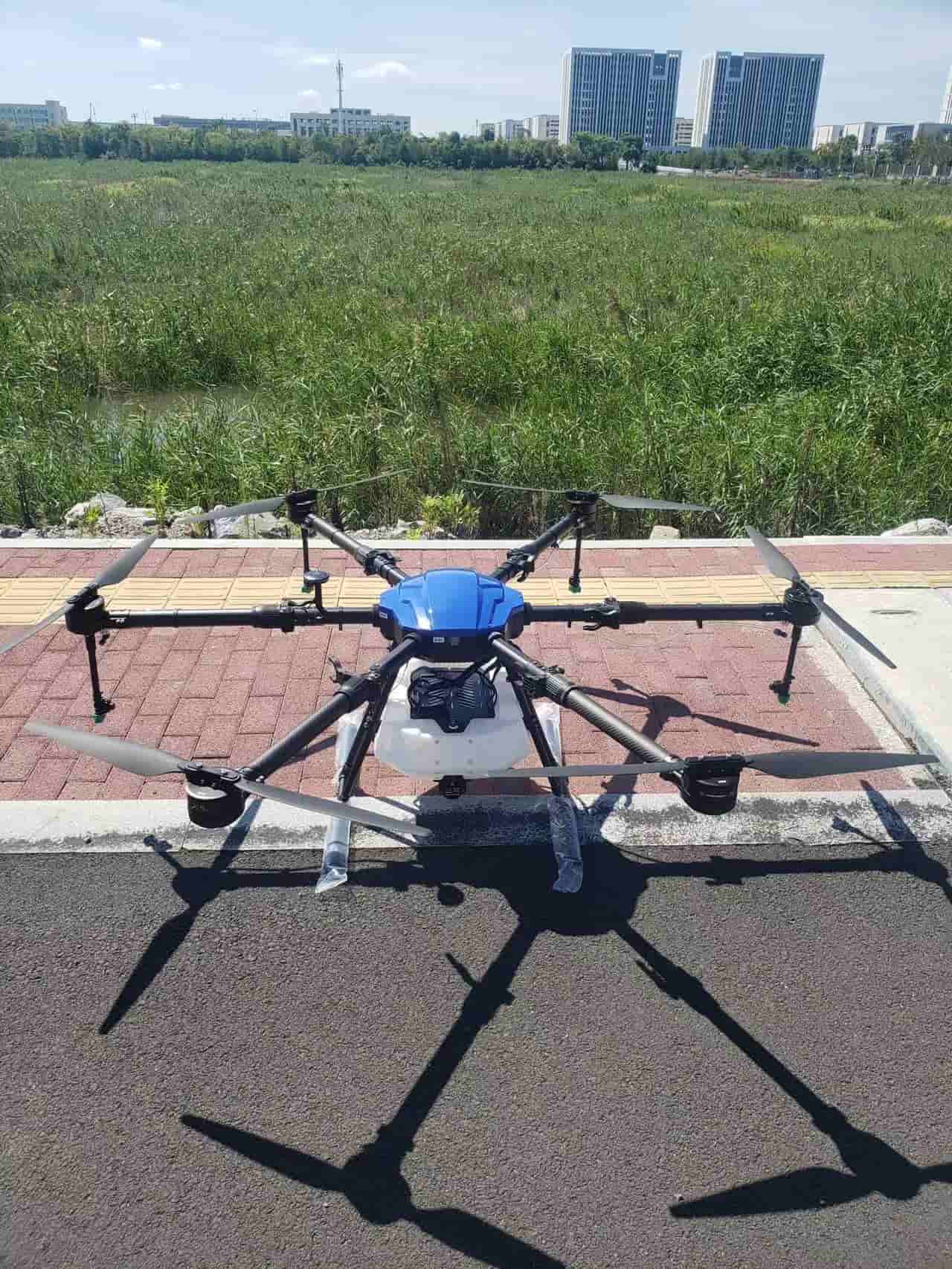

5-20Days10L Agricultural Plant Protection Drone
Agricultural plant protection spraying drones/UAV specially designed for agricultural plant protection, it integrates advanced deep customized flight control, efficient spraying system, portable folding body, and easy to operate professional grade customized handheld ground station, providing users with efficient, safe, and convenient plant protection services.
Product Features
1. Three section exquisite fuselage: Adopting a three-stage fuselage layout design: flight control, medicine box, and battery, the structure is exquisite and the shape is unique.
2. Rectangular layout scheme: adopting a flat rectangular layout, extending the arm to both sides, maximizing the distance between nozzles, and thus increasing the spraying area.
3. Quick disassembly of medicine box and battery, easy to operate, time-saving and labor-saving.

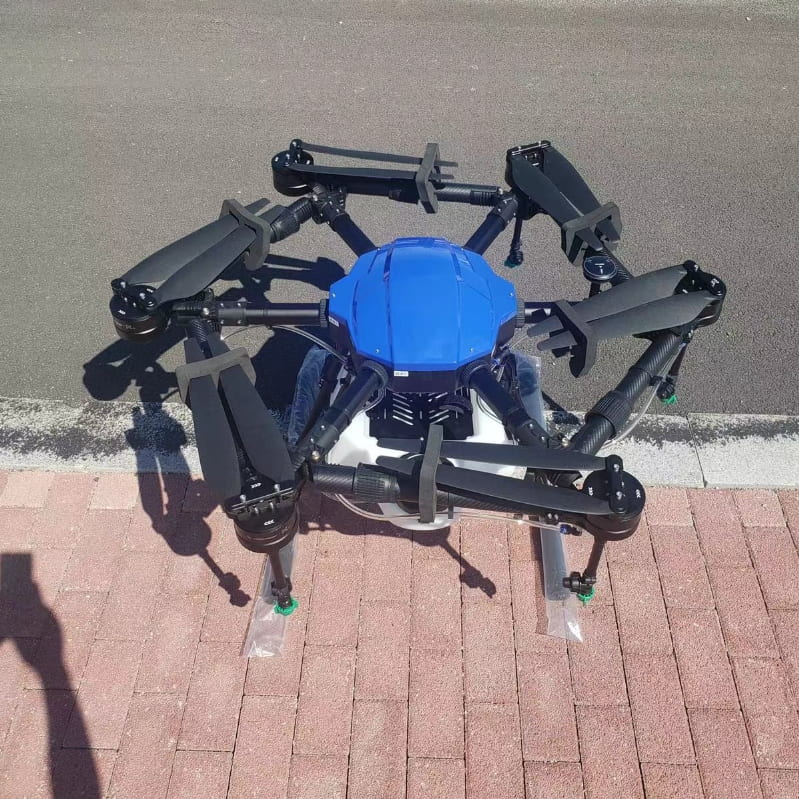

4. Ultra small body, fast folding, convenient for transportation.
5. Modular design, easy disassembly, convenient maintenance.
6. Intelligent autonomous operation: It can achieve AB point operation and route planning operation.
Technical Parameter
|
Spread dimension |
1495*1308*500mm |
|
Folded dimension |
945*848*500mm |
|
Symmetrical wheelbase |
1404mm |
|
Drone weight (including battery) |
16kg |
|
Operating load |
10L |
|
Maximum weight during takeoff |
29kg |
|
Spray flow rate |
0.2-3.5L/min |
|
Spray width |
4m |
|
Atomization area |
110° fan shaped high-pressure nozzle |
|
Operation height |
1-5m(distance from plants) |
|
Operation speed |
3-12m/s |
|
Operation time |
8-16min |
|
Wind resistance capability |
12m/s |
|
Atomized particles |
130~250μm |
|
Recommended working temperature |
0~40℃ |
|
Standard battery |
12S 16000mAh intelligent lithium battery |
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
Crop spraying drones are used for agricultural and forestry plant protection operations. This type UAV consists of three parts: a flight platform, a navigation flight controller, and a spraying mechanism. It can achieve spraying operations through ground remote control or navigation flight control, and can spray pesticides, seeds, powders, etc.
Details
Agricultural drone spraying is becoming an increasingly popular application, helping to maintain crop health and yields.Drones are being deployed for spraying for disease, weed, and pest control, as well as spreading pesticides and fertilisers.
Details
This spraying drone makes sense, offering a fully-automated, targeted and precise solution, and replacing labour-intensive, time-consuming, and potentially harmful use of backpack sprayers and other equipment.
Details
Crop spraying, seed spreading and land surveying.G20 is an unmanned aerial vehicle used for agricultural and forestry plant protection operations.
Details
Data-driven agriculture for the new generation of farmer. Farming drones are becoming a key driver of innovation: Helping the new generation of farmers automate crop spraying and seeding, monitor and inspect crop growth and improve farming efficiency, leading to increased outputs and maximising productivity.
Details
New intelligent manufacturing.Capable of carrying a maximum spray volume of 50L, with 70L spray capacity and an ultra light fuselage structure.Lightweight and Foldable.Performance good.
Details
This farming sprayer drone can is specially designed for fertilizing, sowing, irrigation and pesticide spreading.
Details
Large capacity agricultural spraying drone-55L water tank/80L fertilizer tank.
