Crop spraying, seed spreading and land surveying.G20 is an unmanned aerial vehicle used for agricultural and forestry plant protection operations.
Item No :
6784Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :
5-20Days20L Agriculture Drone

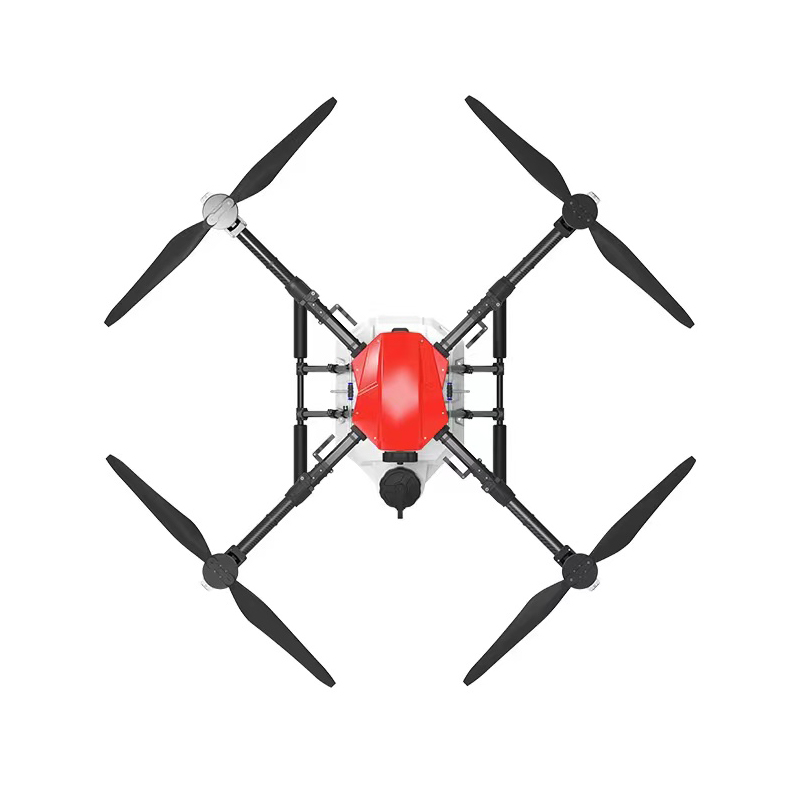

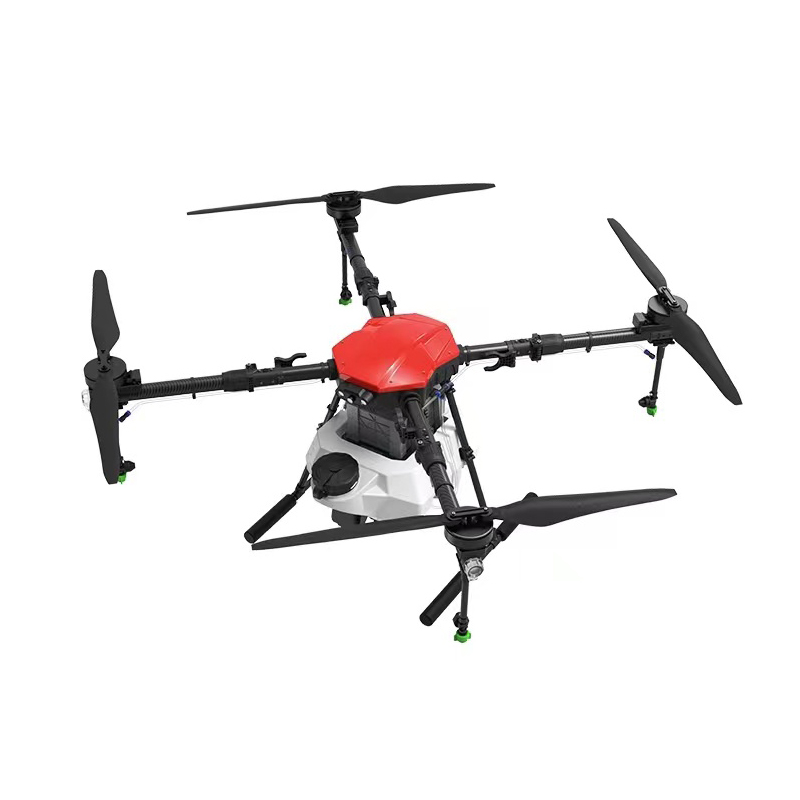

G20 agriculture drones/UAV specially designed for agricultural plant protection, it integrates advanced deep customized flight control, efficient spraying system, portable folding body, and easy to operate professional grade customized handheld ground station, providing users with efficient, safe, and convenient plant protection services.
Product Features
1. Three section exquisite fuselage: Adopting a three-stage fuselage layout design: flight control, medicine box, and battery, the structure is exquisite and the shape is unique.
2. Rectangular layout scheme: adopting a flat rectangular layout, extending the arm to both sides, maximizing the distance between nozzles, and thus increasing the spraying area.
3. Quick disassembly of medicine box and battery, easy to operate, time-saving and labor-saving.

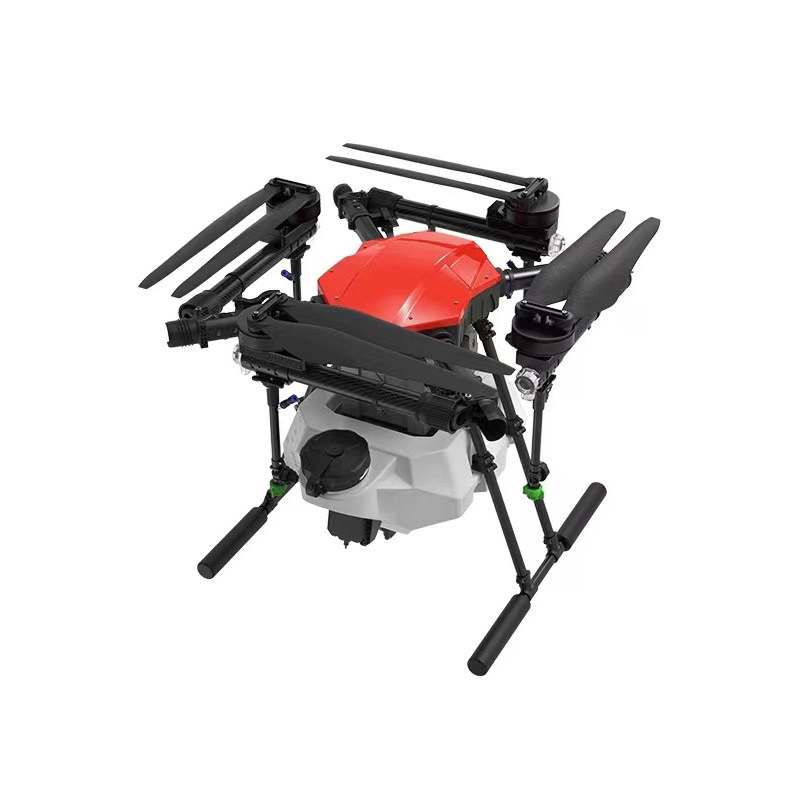

4. Ultra small body, fast folding, convenient for transportation.
5. Modular design, easy disassembly, convenient maintenance.
6. Intelligent autonomous operation: It can achieve AB point operation and route planning operation.
7. Dustproof and waterproof, with a waterproof rating of IP56, can be directly rinsed with water.
Technical Parameter
Spread dimension |
1110*1110*663mm |
Folded dimension |
713*713*663mm |
Symmetrical wheelbase |
1628mm |
Drone weight (including battery) |
22.5kg |
Operating load |
20L |
Maximum weight during takeoff |
81.5kg |
Spray flow rate |
1.5-6L/min |
Spray width |
3-5m |
Atomization area |
110° fan shaped high-pressure nozzle |
Operation height |
1-5m(distance from plants) |
Operation speed |
1-12m/s |
Operation time |
10-20min |
Wind resistance capability |
12m/s |
Atomized particles |
130~250μm |
Recommended working temperature |
0~40℃ |
Standard battery |
14S 22000mAh intelligent lithium battery |
Remote Control Parameter
Model |
H12 |
Number of channels |
12 |
Screen |
5.5-inch high brightness display screen |
Working voltage |
4.2V |
RF power |
200DB@CE/23DB@FCC |
Frequency band |
2.400~2.483GHz |
Frequency hopping |
New FHSS FM |
Weight |
530g |
Size |
190*152*94mm |
Battery |
10000mAh |
Battery life |
6-20h |
Charging interface |
Type-C |
Agriculture Drones Can Benefit Farmers and Agriculture Research Bodies
Precision Farming |
Drones gather precise data about a farm's fields. They use sensors and imaging capabilities to produce detailed maps that show variations in soil and crop health. With this intel, farmers can selectively apply fertilizers and pesticides, maximizing yield and minimizing expenses. |
Crop Health Monitoring |
Before a farmer even spots trouble, drones equipped with multispectral and hyperspectral sensors can pinpoint disease, pests, or stress in plants. Early action means fewer lost crops. |
Irrigation Management |
Drones equipped with thermal cameras can identify variations in soil moisture and detect areas of a field that may be over-irrigated or under-irrigated. Farmers using this data can make better decisions on irrigation for efficient water usage and optimizing crop yield. |
Planting |
Some drones don’t just hover – they plant! They fire seed pods packed with nutrients into the ground. Even on terrains or conditions too tough for conventional machinery, drones will get the job done. |
Livestock Monitoring |
For farmers with large pastures or rangelands, monitoring livestock can be time-consuming. With an aerial view of the livestock, farmers get to ensure that their herds are healthy, well-fed, and safe from predators. Say goodbye to those exhaustive, manual field checks. |
Estimating Crop Yields and Growth |
With the high-resolution imagery provided by drones, farmers can estimate crop yields more accurately. They can also monitor growth stages and assess if crops are developing as expected. This allows for better planning of harvest timings and logistics. |
Research & Development |
Helping scientists study plant growth, crop response to different inputs, and the impact of environmental factors on agricultural output. |
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
