EMA1800 High-temperature EMA(electromagnetic acoustic) thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
EMA1800 EMA(electromagnetic acoustic)Thickness Gauge
EMA thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals. The working gap between the sensor and the metal can be lifted up to 4mm. The operation of electromagnetic acoustic high-temperature thickness gauge does not require pre cleaning of the surface or contact with liquid. The gap can be dirt, rust, salt deposits, or other non-conductive coatings (such as paint, varnish, enamel, plastic, etc.). In addition to measuring the thickness of metals, EMA1000 can also measure the thickness of non-conductive coatings on metals.

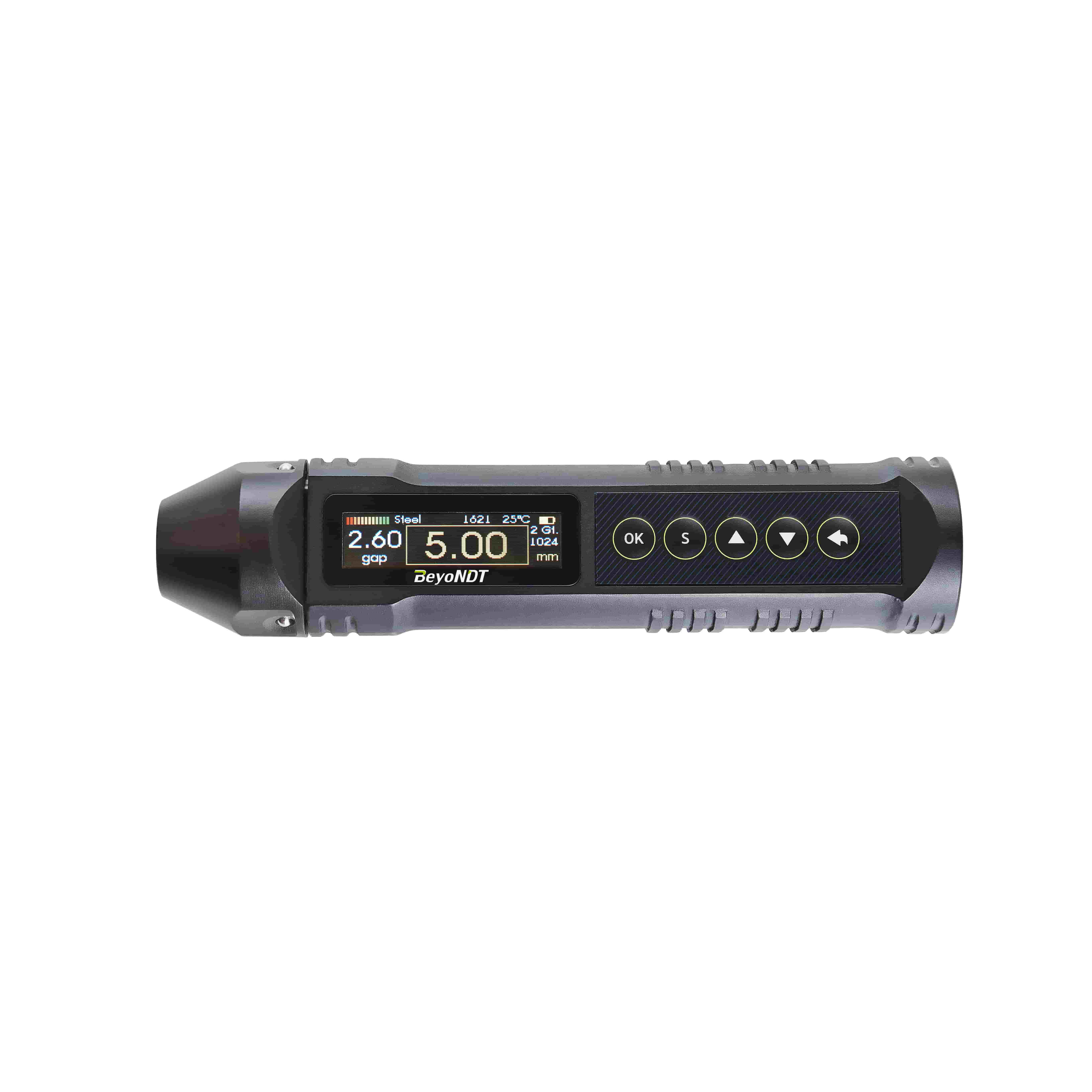

Due to the use of special sensors, the EMA1800 thickness gauge can be used to measure the thickness of objects heated to 800 degrees Celsius. The EMA1800 electromagnetic ultrasonic high-temperature thickness gauge has a color display screen protected by impact resistant glass.

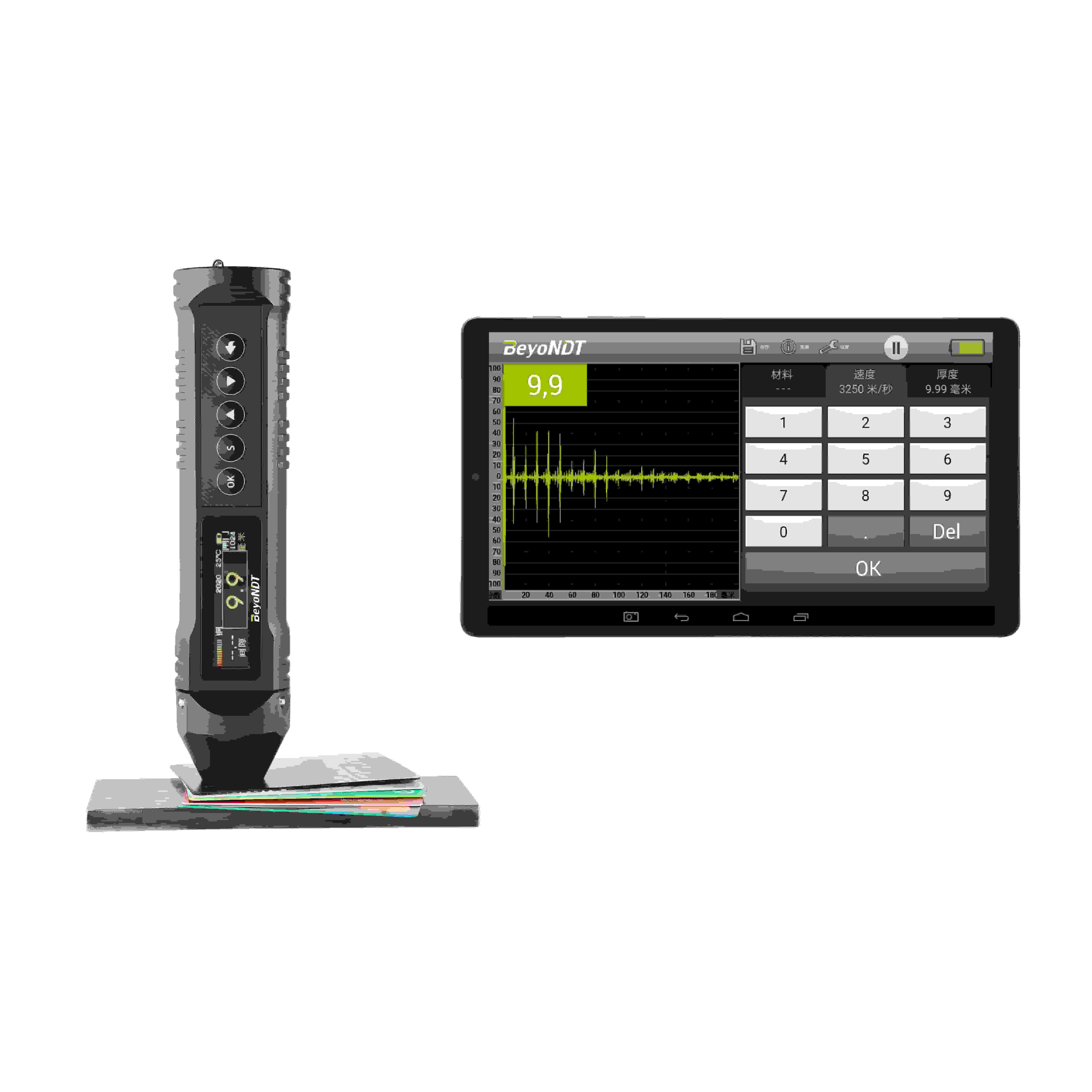

The EMA1800 electromagnetic acoustic thickness gauge can be connected to tablets, smartphones, or other devices based on the Android operating system. This can expand the functions of the thickness gauge, including A-scan, B-scan and C-scan analysis; You can use gates, select thickness measurement modes, and signal processing parameters. The connection between EMA1800 electromagnetic ultrasonic high-temperature thickness gauge and tablet computer can be wireless connection using Bluetooth or wired connection using USB.
Technical parameter
|
Range of metal thickness |
2-220mm |
|
Accuracy |
0.01mm |
|
Measurement error |
≤ 0.08mm |
|
Gap between the sensor and the detected workpiece |
4mm |
|
Measurable coating thickness |
0-5mm |
|
Speed range |
1000-9999m/s, step 1m/s |
|
Power supply |
Lithium battery |
|
working time |
≥ 8 hours |
|
Interface |
Micro USB, Mini USB, Bluetooth |
|
Temperature range of objects |
-20~+800℃ |
|
Weight |
230g |
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
EMA1000 High-temperature EMA ultrasonic thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
Details
EMA1800 High-temperature EMA(electromagnetic acoustic) thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
Details
EMA3800 High-temperature ultrasonic thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
Details
M1 ultrasonic on-line corrosion monitoring system is a non immersion monitoring system.Our non-intrusive systems use electromagnetic acoustic transducer sensor technology and wireless data delivery to continuously monitor for pipework metal loss from corrosion or erosion in the most difficult environments. Due to the use of electromagnetic acoustic transducer non-destructive testing methods, the probe and metal parts can be lifted by 4mm during measurement, so there is no need to clean the workpiece and it has no damage to the workpiece itself. In addition, the system can also simultaneously monitor changes in coating thickness to help users better assess the corrosion status and remaining service life of the object.
Details
AI163 is a handheld ultrasound source imaging device and one of BEYONDT's "Multi Ear God" acoustic camera series products. AI163 uses a large number of microphones and a large array surface, while balancing low-frequency and high-frequency imaging performance, with good imaging effects from 2kHz to 100kHz.
Details
Customize EMAT probe for clients according to your requirements.
Details
Customize EMAT high-temperature probe for clients according to your requirements.
Details
EMAT probe with wheels.Customize EMAT probe for clients according to clients' requirements.
