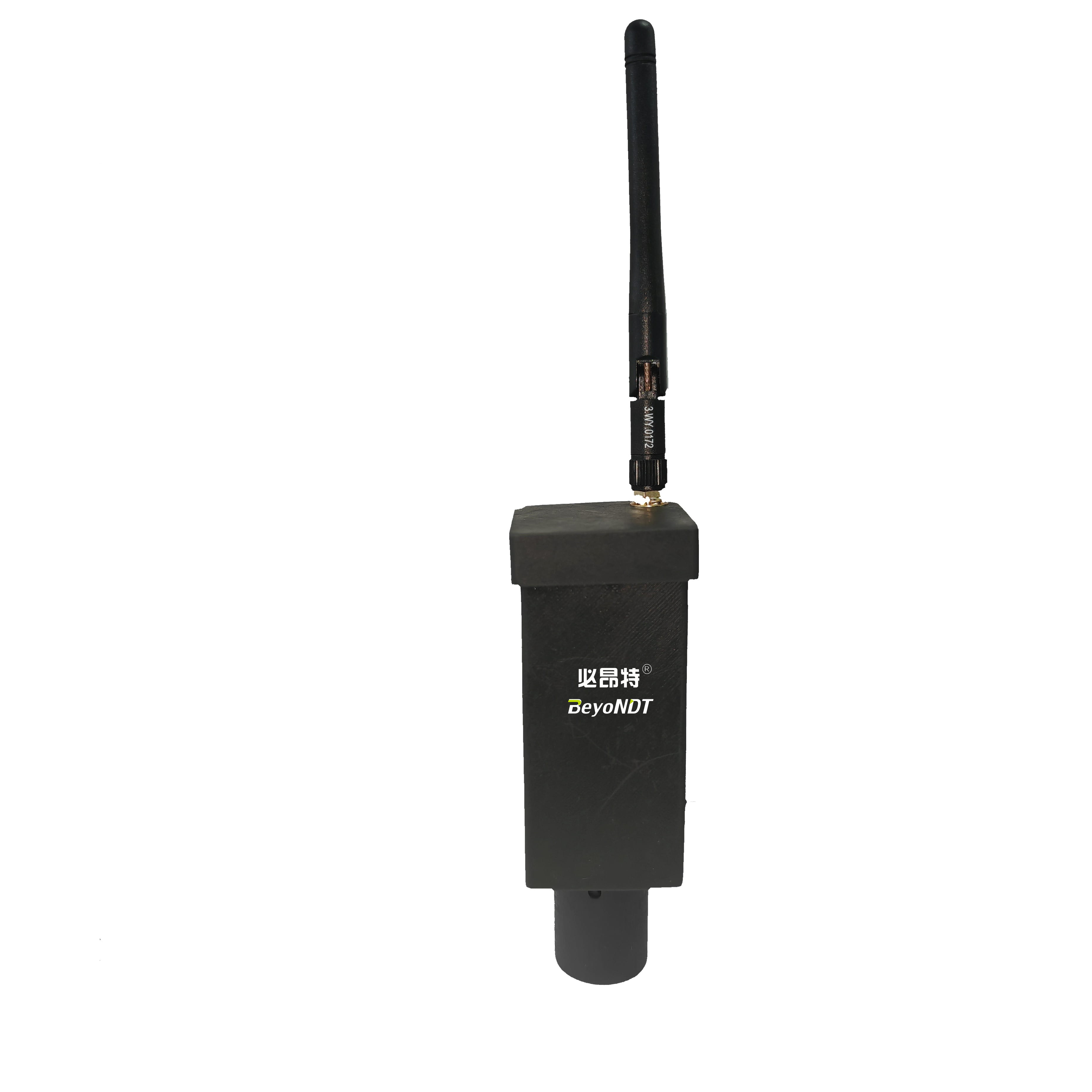

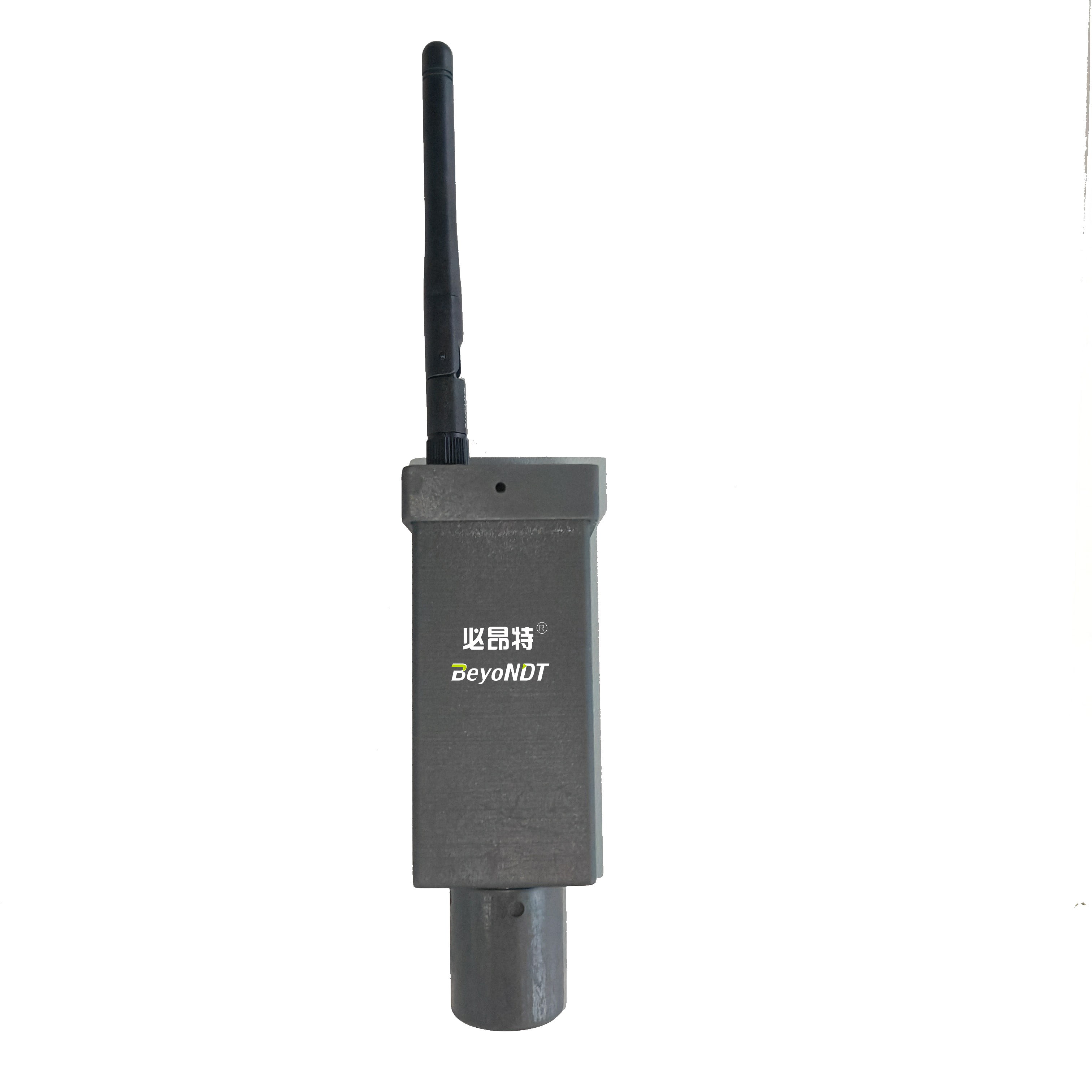

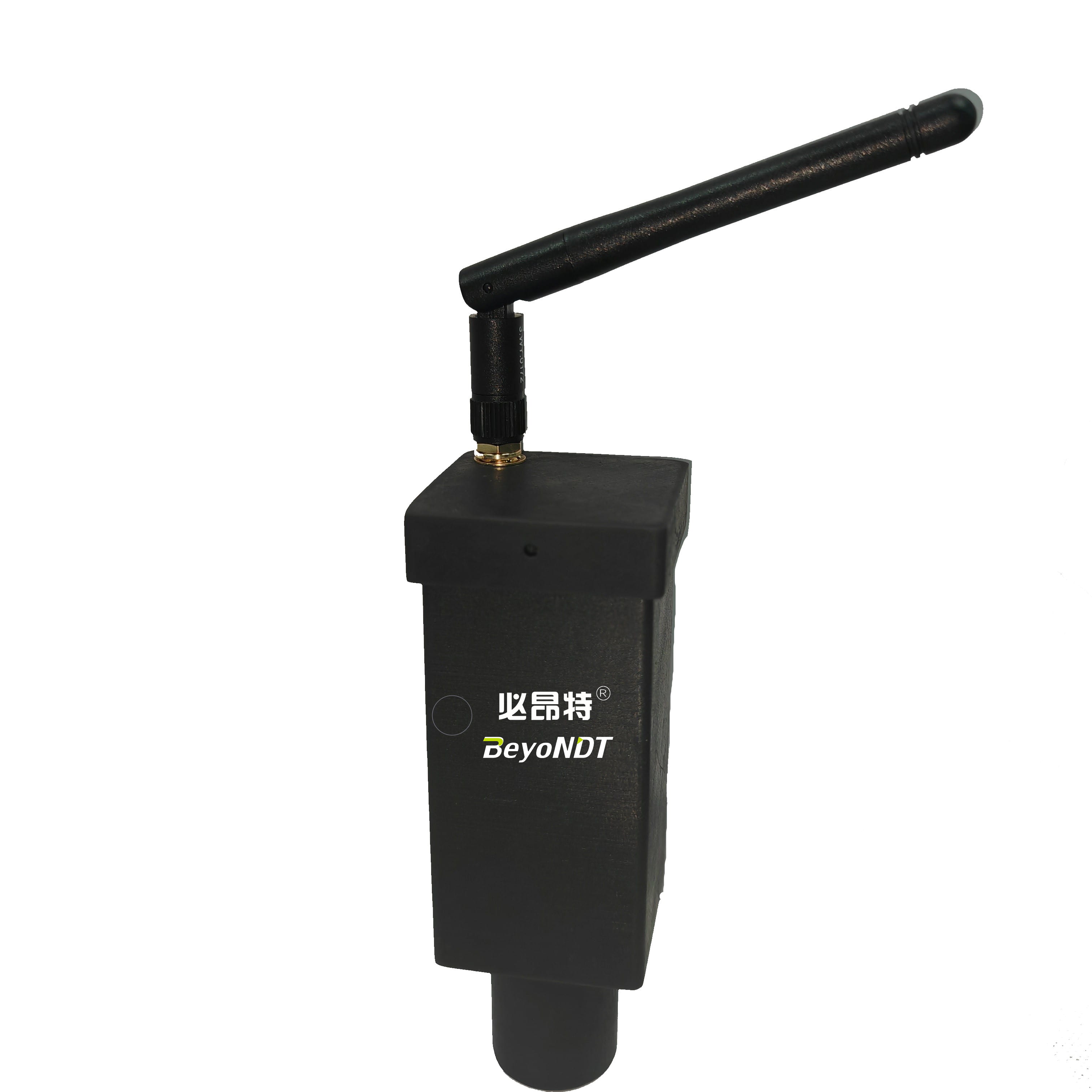

M1 On-line Corrosion Monitoring System

M1 On-line Corrosion Monitoring System

M1 ultrasonic on-line corrosion monitoring system is a non immersion monitoring system.Our non-intrusive systems use  electromagnetic acoustic transducer sensor technology and wireless data delivery to continuously monitor for pipework metal loss from corrosion or erosion in the most difficult environments. Due to the use of electromagnetic acoustic transducer non-destructive testing methods, the probe and metal parts can be lifted by 4mm during measurement, so there is no need to clean the workpiece and it has no damage to the workpiece itself. In addition, the system can also simultaneously monitor changes in coating thickness to help users better assess the corrosion status and remaining service life of the object.

  • Item No :

    4563
  • Order(MOQ) :

    1
  • Payment :

    T/T
  • Product Origin :

    CHINA
  • Color :

    BLACK
  • Shipping Port :

    SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.
  • Lead Time :

    5-30days

M1 Ultrasonic On-line Corrosion Monitoring System

M1 EMAT(electromagnetic acoustic transducer) online corrosion monitoring system is a non immersion monitoring system. Our non-intrusive systems use  electromagnetic acoustic transducer sensor technology and wireless data delivery to continuously monitor for pipework metal loss from corrosion or erosion in the most difficult environments. Due to the use of electromagnetic acoustic transducer non-destructive testing methods, the probe and metal parts can be lifted by 4mm during measurement, so there is no need to clean the workpiece and it has no damage to the workpiece itself. In addition, the system can also simultaneously monitor changes in coating thickness to help users better assess the corrosion status and remaining service life of the object.

Principle of EMAT thickness measurement:

According to the principle of pulse reflection measurement, when the ultrasonic pulse is transmitted to the measured object and reaches the pipe wall interface, it sequentially generates a first bottom wave, a second bottom wave, etc. The pulse waveform is reflected back to the probe, and the high-speed AD is used to collect the ultrasonic echo waveform (bottom right figure). The thickness value is determined by accurately measuring the time that the ultrasonic wave propagates in the pipe wall. That is, the sound velocity remains constant in the same uniform material, and the time that the ultrasonic wave propagates in the pipe wall is proportional to the thickness of the pipe wall. After converting the time value through the formula, the thickness d can be obtained:

d=ct/2

(c - sound velocity value of ultrasound, t - round-trip time of ultrasound propagation in the pipe wall)

Installation steps:

Step 1: After selecting the parts to be monitored on the pipeline, fix the sensor to the contact surface of the pipeline and install it directly on the outer wall of the pipeline using clamps. The entire sensor installation device is designed as a matching product;

Step 2: Connect the sensor to the thickness gauge host via wired connection;

Step 3: Fix the thickness gauge on the instrument bracket.

Debugging:

The installation of the multi-point online monitoring system is shown in the diagram above. The same thickness measuring instrument can monitor up to 4 points simultaneously. Each instrument is first functionally debugged and then connected to the internet to form the entire network online monitoring system.

Advantages:

1. No need for acoustic coupling agent.

2. Can simultaneously measure coating thickness and workpiece thickness.

3. Low risk pipelines do not require shutdown monitoring, and there is no need for regular shutdown inspections, making full use of pipeline service time and increasing output value.

4. Easy to operate, fast monitoring report, and only require one installation.

5. No need for periodic non-destructive testing of corrosion by testing personnel.

6. Automatic alarm to avoid losses caused by accidents due to corrosion.

7. Wide range of applications: oil and gas extraction, storage and transportation, oil and gas refining.

Technical Parameter

Range of metal thickness

1-250mm

Accuracy

0.01mm

Measurement error

 0.08mm

Gap between the sensor and the detected workpiece

4mm

Measurable coating thickness

0-12mm

Speed range

1000-9999m/s, step 1m/s

Power supply

Lithium battery

working time

 8 hours

Interface

Micro USB, Mini USB, Bluetooth

Temperature range of objects

-20~+800

Weight

230g
