EMA3800 EMA Thickness Gauge

EMA3800 EMA Thickness Gauge

EMA3800 High-temperature ultrasonic thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.

  • Item No :

    2345
  • Order(MOQ) :

    1
  • Payment :

    T/T
  • Product Origin :

    CHINA
  • Color :

    Black
  • Shipping Port :

    SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.
  • Lead Time :

    5-30 days

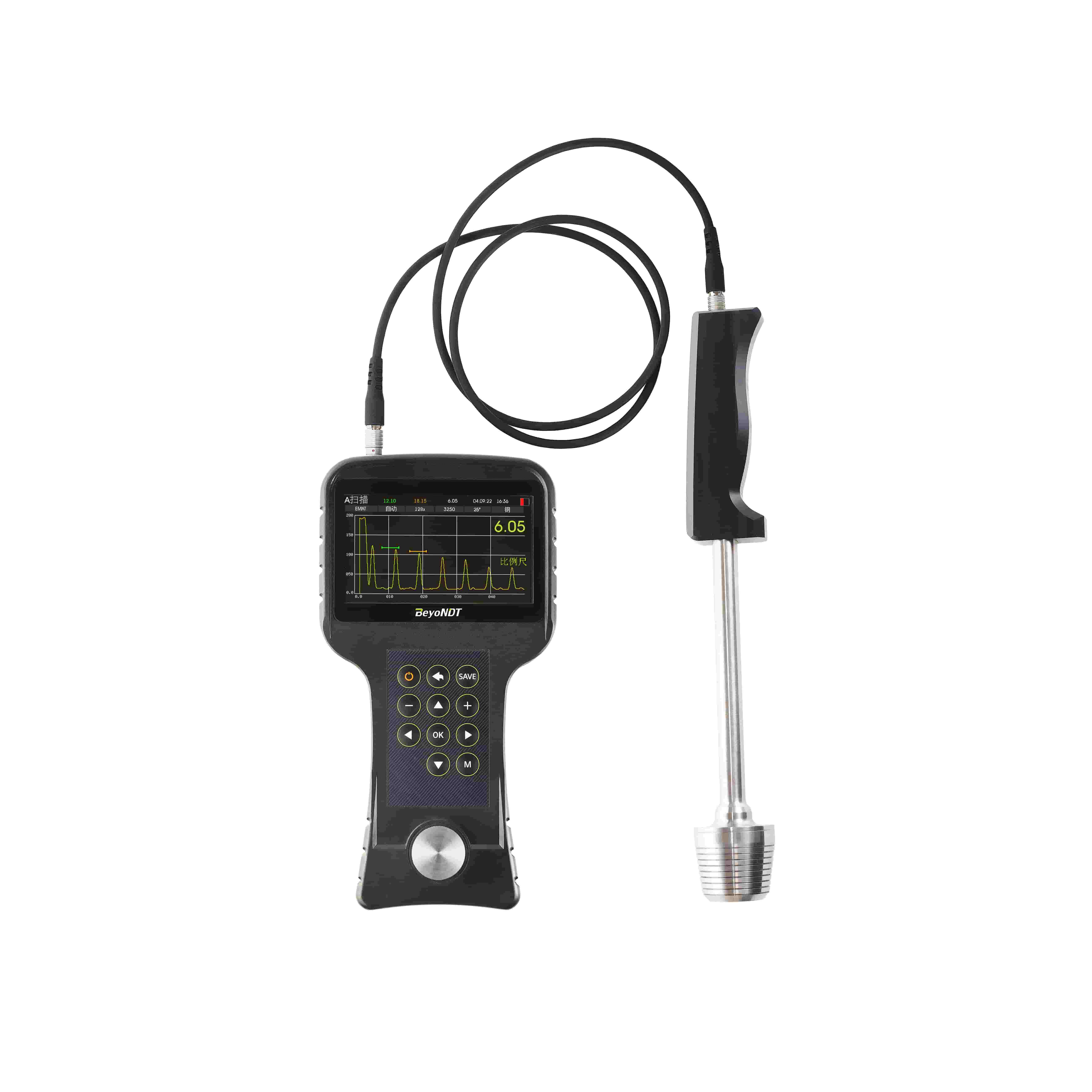

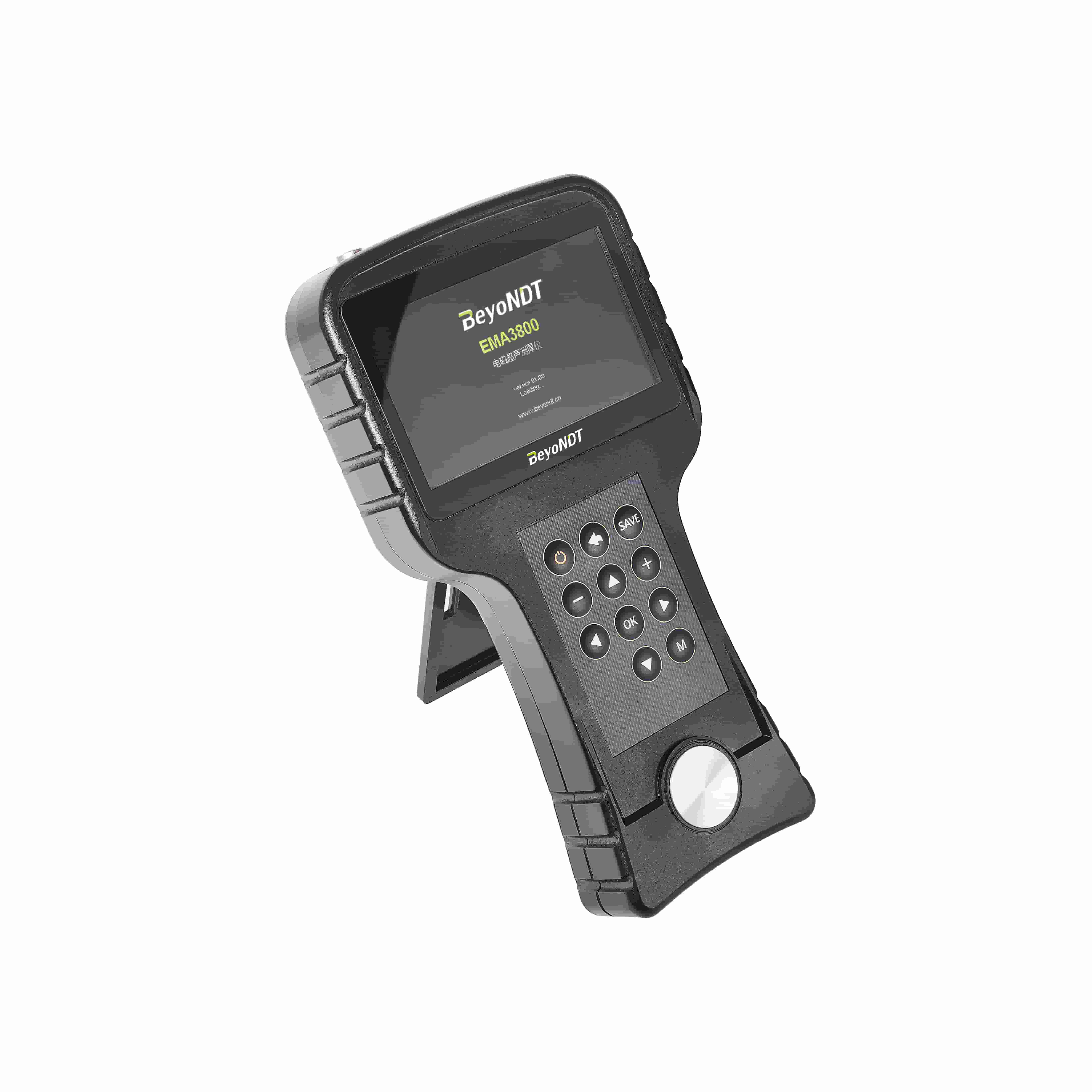

EMA3800 EMA (electromagnetic acoustic) thickness gauge.

EMA thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals. The working gap between the sensor and the metal can be lifted up to 4mm. The operation of EMA thickness gauge does not require pre cleaning of the surface or contact with liquid. The gap can be dirt, rust, salt deposits, or other non-conductive coatings (such as paint, varnish, enamel, plastic, etc.). In addition to measuring the thickness of metals.

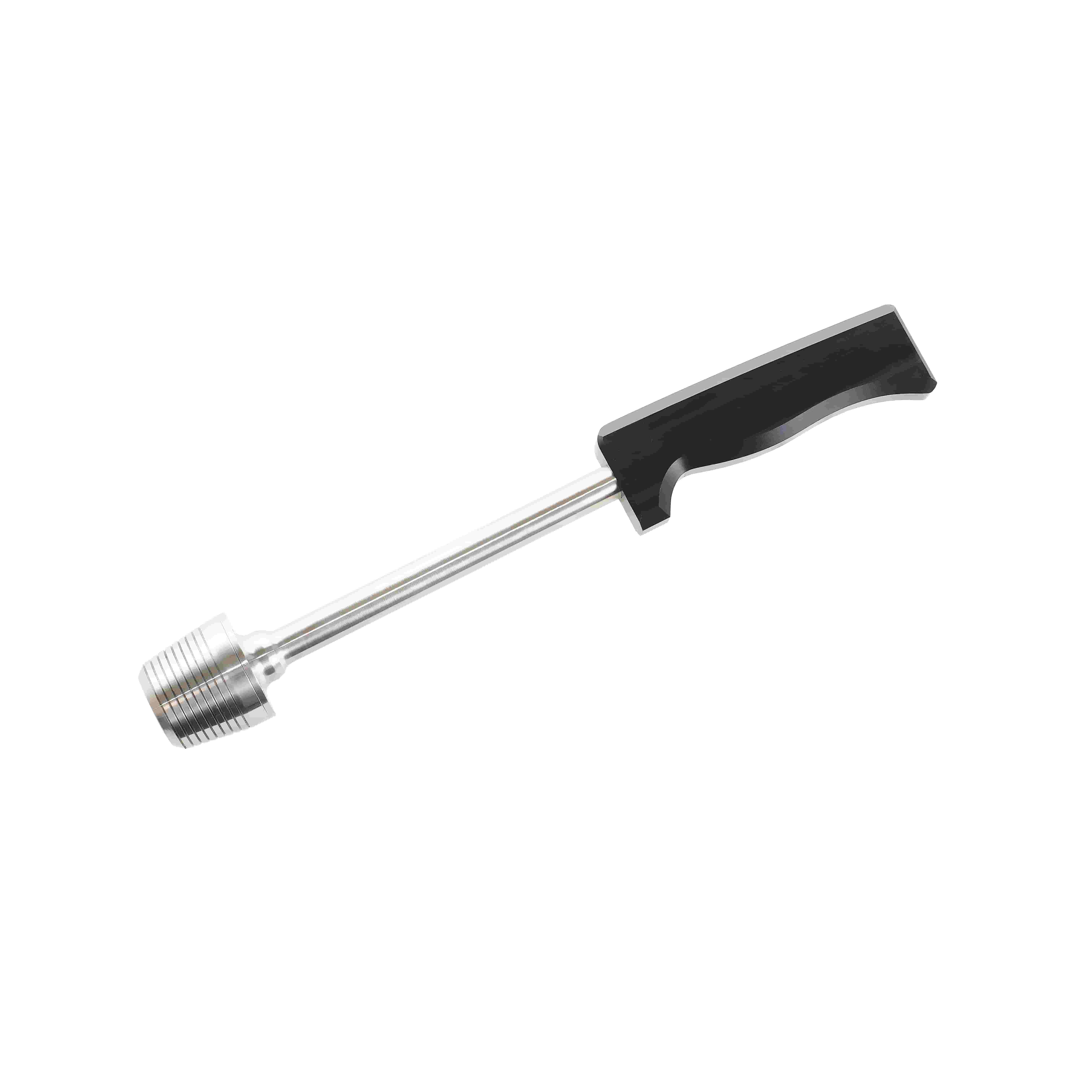

Due to the use of special sensors, the EMA3800 thickness gauge can be used to measure the thickness of objects heated to 800℃. The EMA3800  electromagnetic acoustic transducer(EMA) high-temperature thickness gauge has a color display screen protected by impact resistant glass.

The EMA3800 electromagnetic acoustic(EMA) thickness gauge can be connected to tablets, smartphones, or other devices based on the Android operating system. This can expand the functions of the thickness gauge, including A-scan, B-scan and C-scan analysis; You can use gates, select thickness measurement modes, and signal processing parameters.

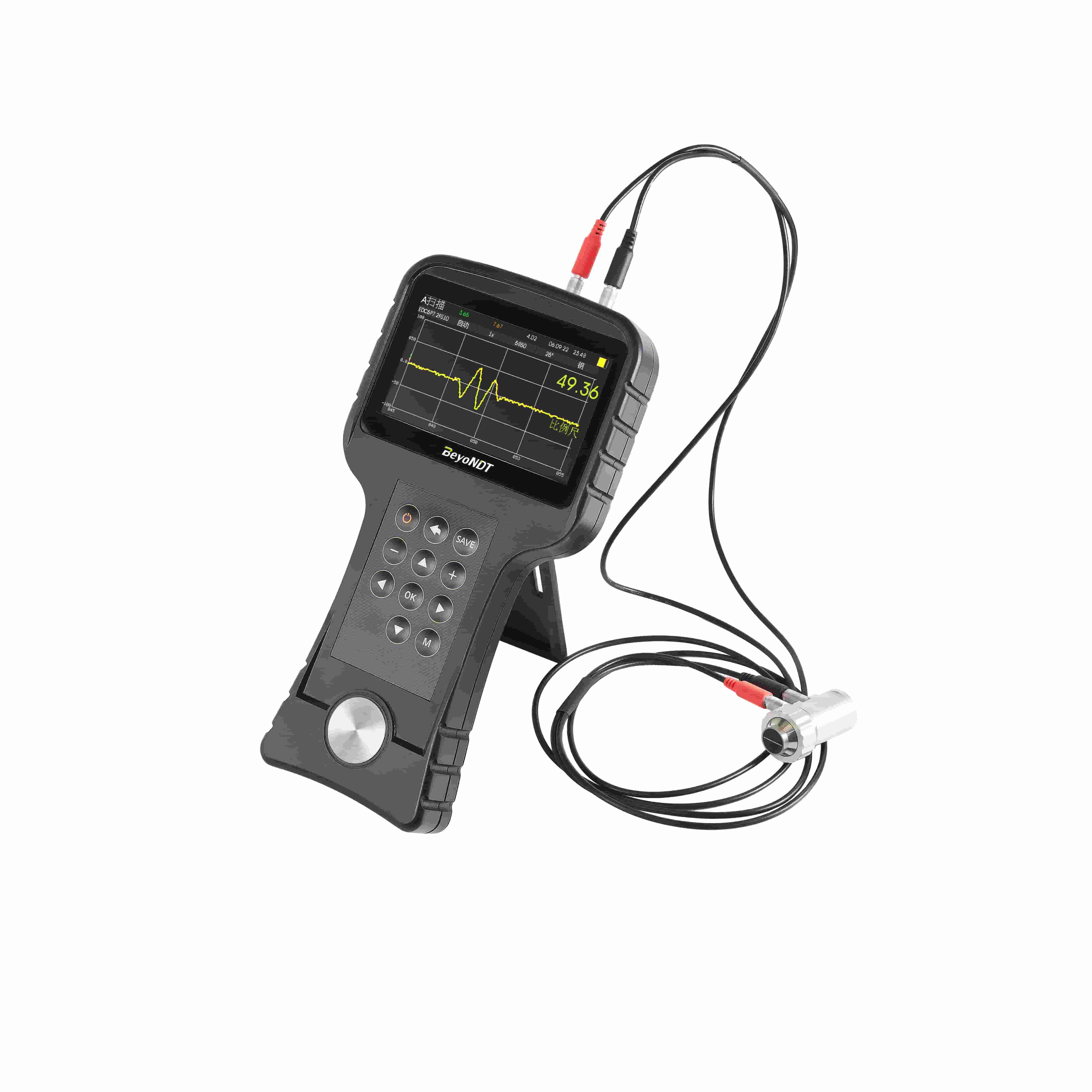

The thickness gauge has two independent measurement channels - the EMA sensor connection channel and the piezoelectric chip sensor connection channel, which greatly improve the accuracy of the measurement. Piezoelectric chip sensors are recommended for workpieces with thick metal surface deposits that cannot be used with EMAT sensors.



Range of metal thickness

2-320mm

Accuracy

0.01mm

Measurement error

 0.08mm

Gap between the sensor and the detected workpiece

4mm

Scan

A/B/C

Speed range

1000-9999m/s, step 1m/s

Power supply

Lithium battery

working time

 8 hours

Interface

Micro USB, Mini USB, Bluetooth

Temperature range of objects

-20~+800

Weight

730g

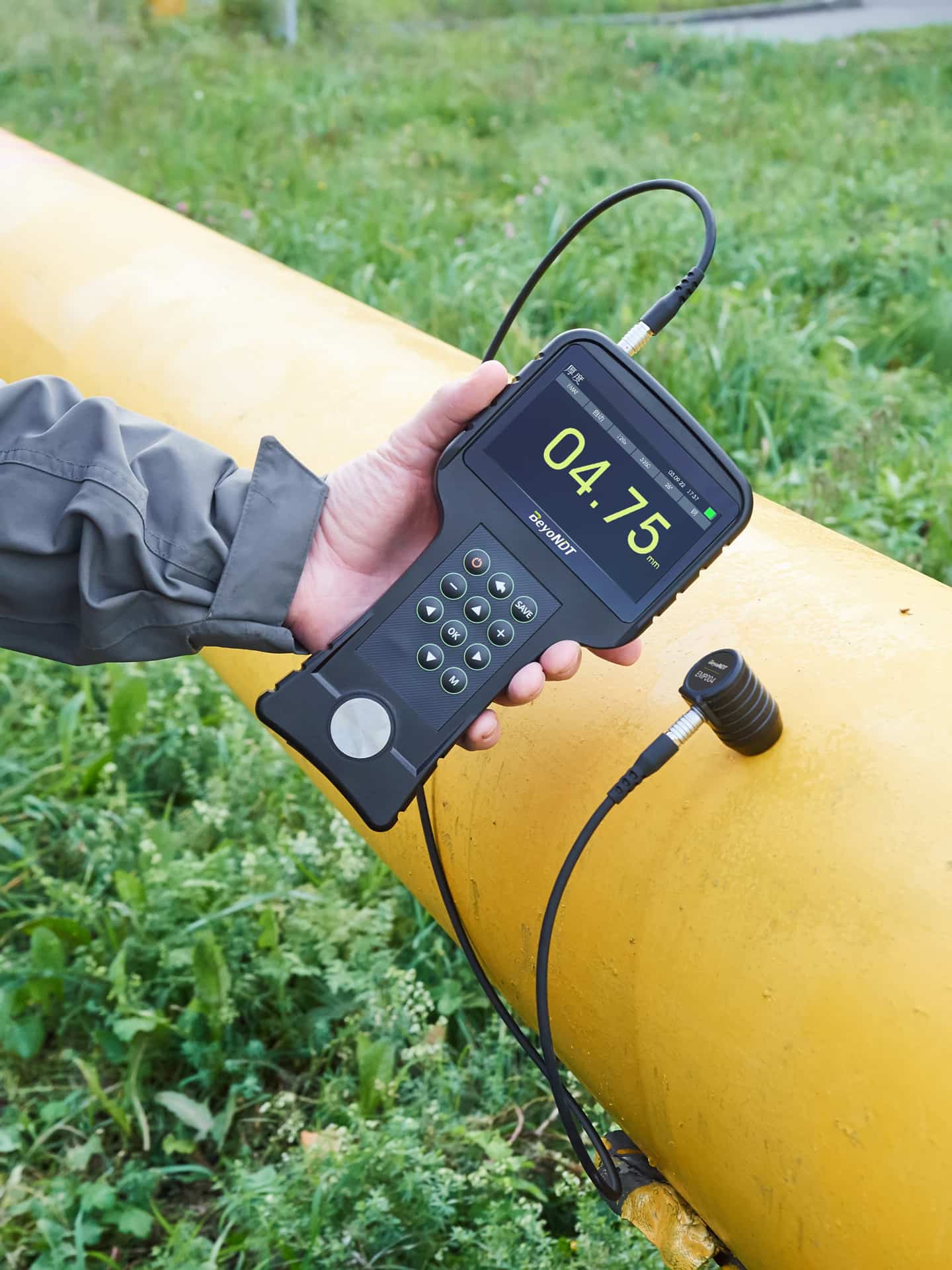

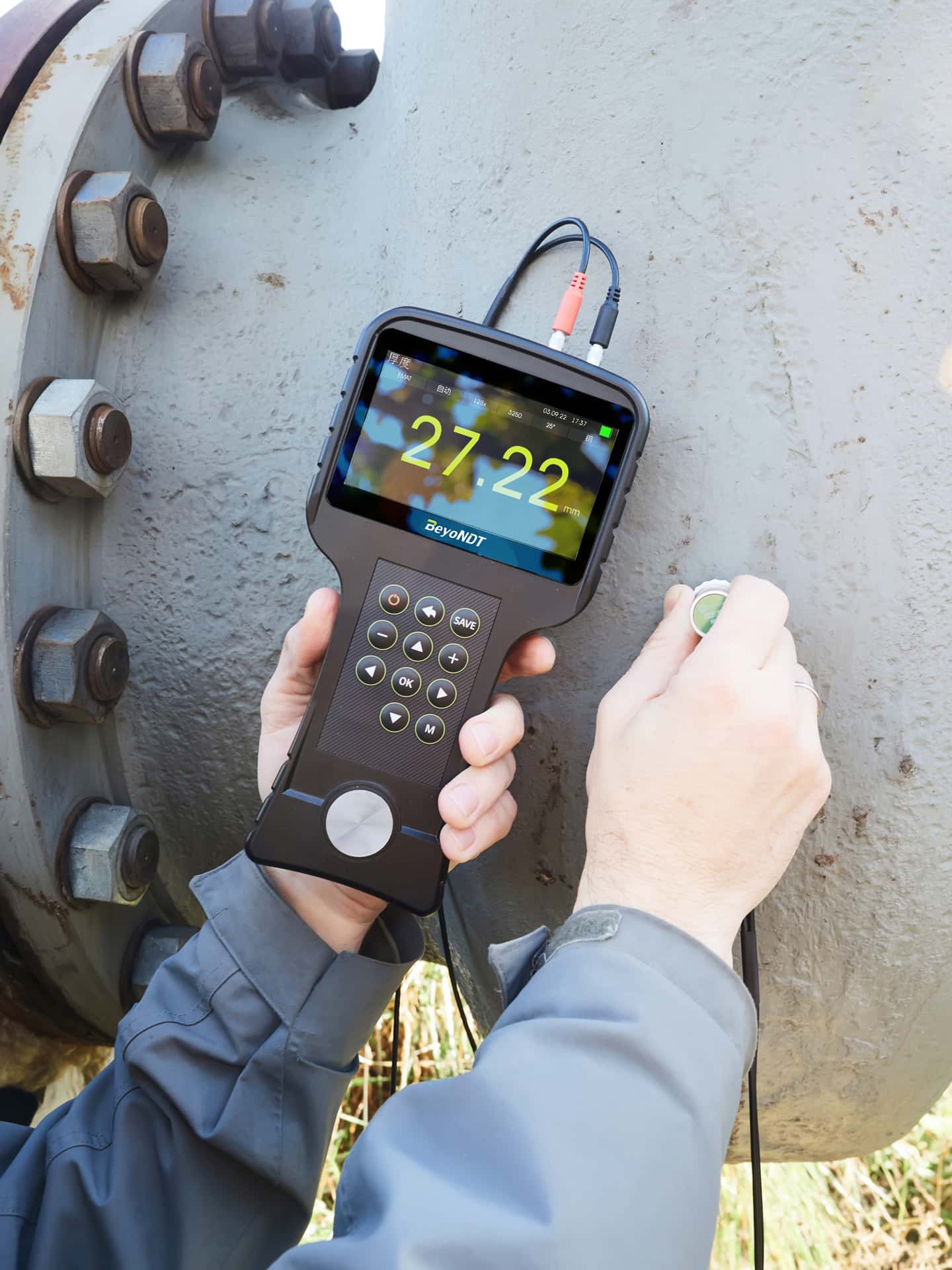

ultrasonic thickness gauge measures pipes

ultrasonic thickness gauge measures pipes,no need cleaning, no need polishing, no need gel



Why choose BEYONDT?

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.

2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.

3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
