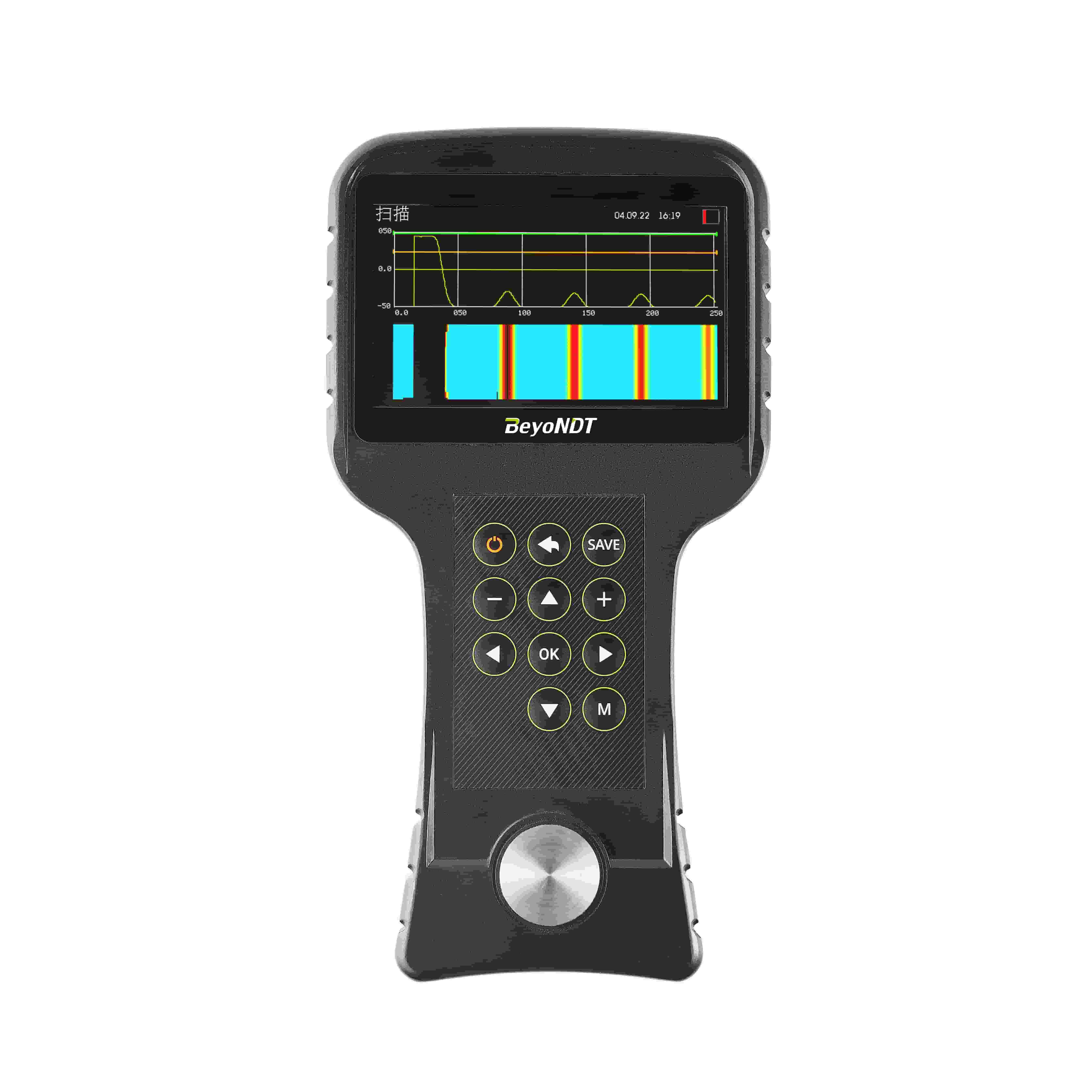

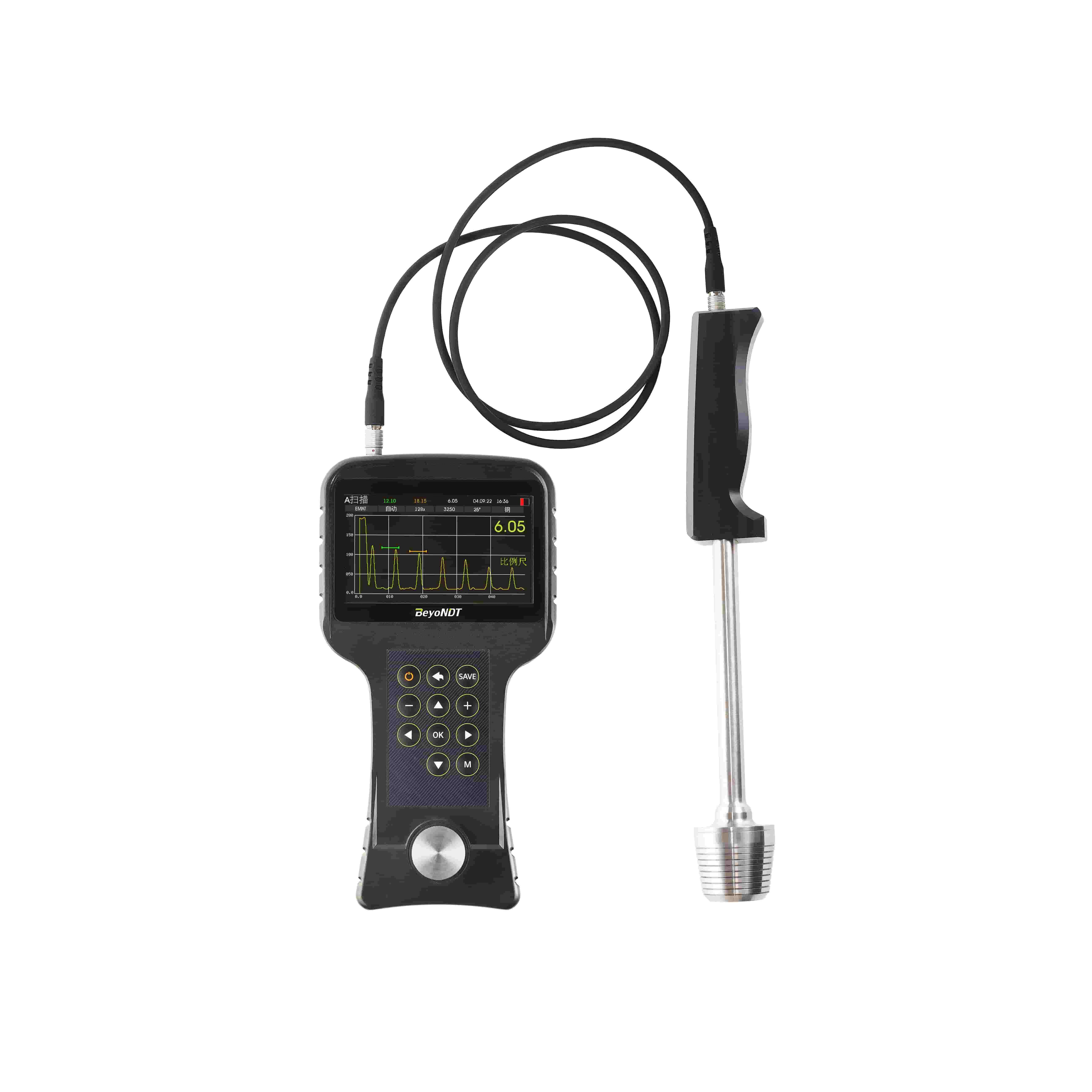

EMA2800 Electromagnetic Acoustic Transducer Thickness Gauge
EMA2800 thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals. The working gap between the sensor and the metal can be lifted up to 8mm.
Item No :
EMA2800Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
BLACKShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :
7daysEMA2800 Electromagnetic Acoustic Transducer Thickness Gauge
EMA2800 thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals. The working gap between the sensor and the metal can be lifted up to 8mm. The operation of EMA thickness gauge does not require pre cleaning of the surface or contact with liquid. The gap can be dirt, rust, salt deposits, or other non-conductive coatings (such as paint, varnish, enamel, plastic, etc.). In addition to measuring the thickness of metals.
Due to the use of special sensors, the EMA2800 thickness gauge can be used to measure the thickness of objects heated to 800℃. The EMA2800 electromagnetic acoustic transducer(EMAT) high-temperature thickness gauge has a color display screen protected by impact resistant glass.
The EMA2800 electromagnetic acoustic(EMA) thickness gauge can be connected to tablets, smartphones, or other devices based on the Android operating system. This can expand the functions of the thickness gauge, including A-scan, B-scan and C-scan analysis; You can use gates, select thickness measurement modes, and signal processing parameters.
Technical Parameter
|
Range of metal thickness |
2-300mm |
|
Accuracy |
0.01mm |
|
Measurement error |
≤ 0.08mm |
|
Gap between the sensor and the detected workpiece |
≤ 8mm |
|
Scan |
A/B/C |
|
Speed range |
1000-9999m/s, step 1m/s |
|
Power supply |
Lithium battery |
|
working time |
≥ 8 hours |
|
Interface |
Micro USB, Mini USB, Bluetooth |
|
Temperature range of objects |
-20~+800℃ |
|
Weight |
730g |
EMA1000 High-temperature EMA ultrasonic thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
Details
EMA1800 High-temperature EMA(electromagnetic acoustic) thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
Details
EMA2800 thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals. The working gap between the sensor and the metal can be lifted up to 8mm.
Details
EMA3800 High-temperature ultrasonic thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.
Details
M1 ultrasonic on-line corrosion monitoring system is a non immersion monitoring system.Our non-intrusive systems use electromagnetic acoustic transducer sensor technology and wireless data delivery to continuously monitor for pipework metal loss from corrosion or erosion in the most difficult environments. Due to the use of electromagnetic acoustic transducer non-destructive testing methods, the probe and metal parts can be lifted by 4mm during measurement, so there is no need to clean the workpiece and it has no damage to the workpiece itself. In addition, the system can also simultaneously monitor changes in coating thickness to help users better assess the corrosion status and remaining service life of the object.
Details
The EMA1900 EMAT thickness gauge is used for corrosion detection of metal materials such as storage tanks, metal plates, and oil and gas pipelines. It requires no coupling agent and does not need to grind the surface of the metal object; simply place the gauge on the object's surface to perform the measurement. This saves manpower, material resources, and financial resources while ensuring safety.
Details

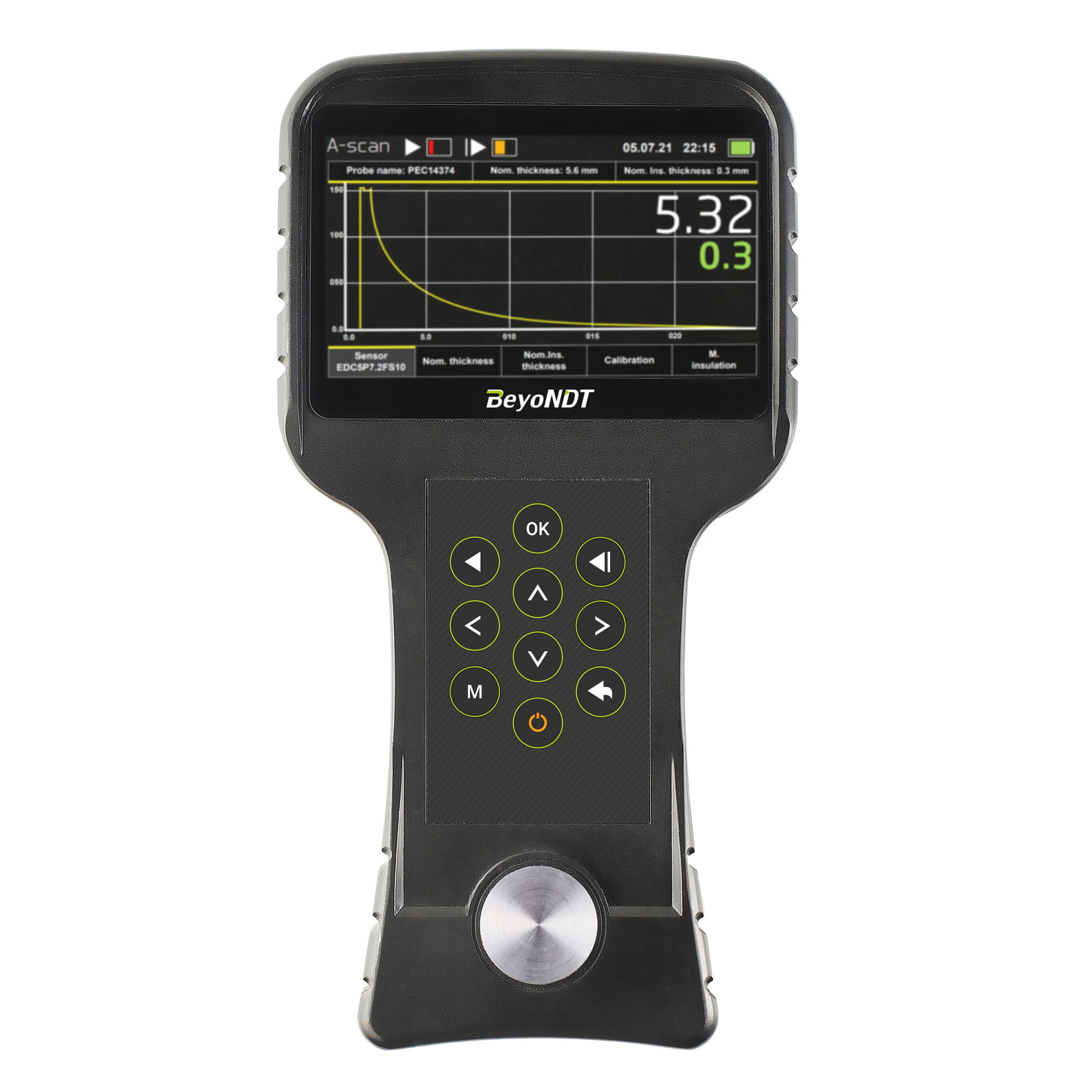

The BEONDT DT1001 pulsed eddy current tester is a portable non-destructive testing device designed for rapid screening of corrosion and thickness reduction in metal structures with insulation or coating layers. The DT1001 is the basic, practical model in BEONDT's pulsed eddy current series, emphasizing rapid on-site screening and cost-effectiveness, making it suitable for industrial users who require regular large-area corrosion surveys. For more complex or higher-precision testing needs, BEONDT tech also offers upgraded models (such as the DT2008) to meet different scenarios.
