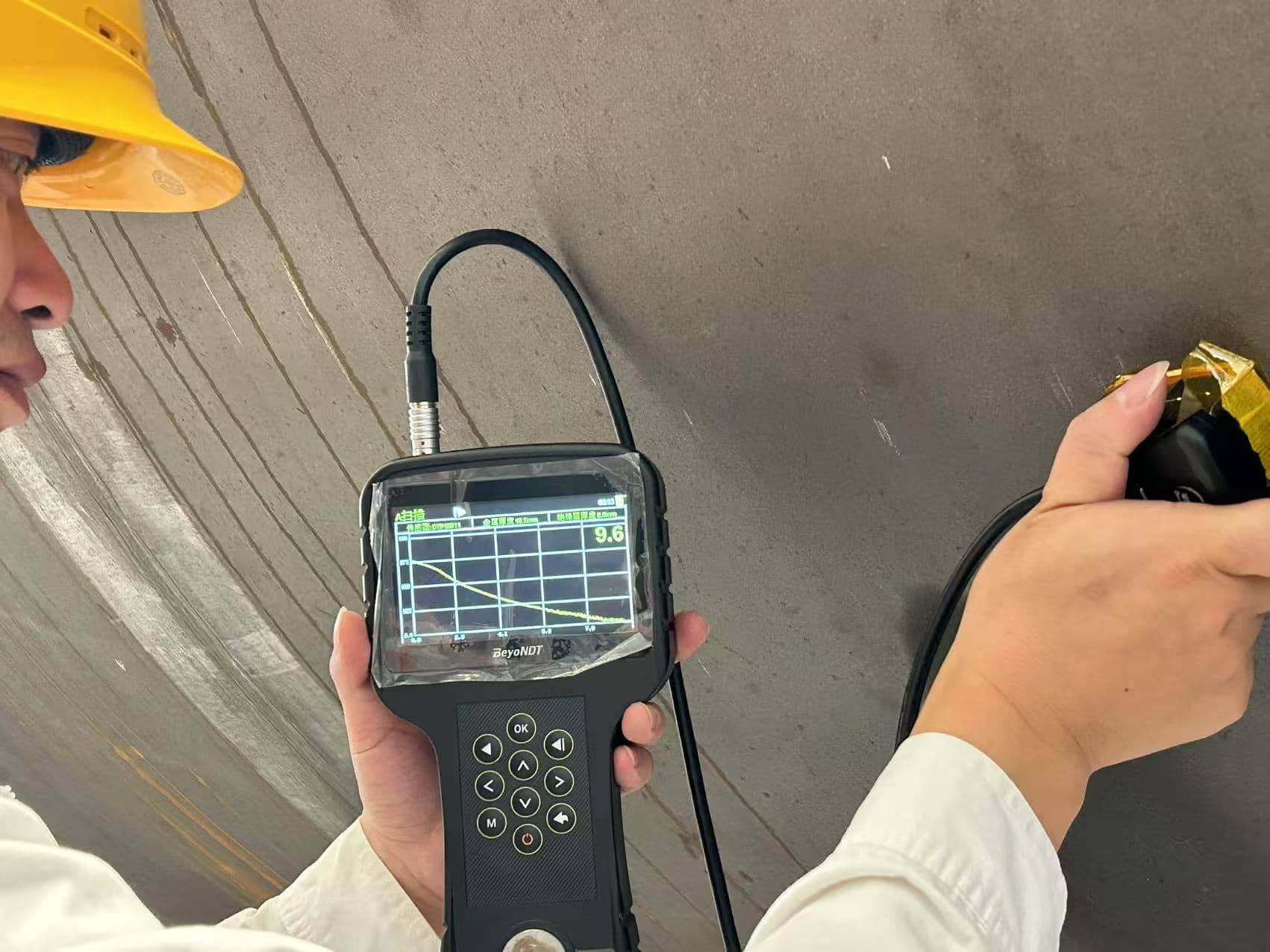

The BEONDT DT1001 pulsed eddy current tester is a portable non-destructive testing device designed for rapid screening of corrosion and thickness reduction in metal structures with insulation or coating layers. The DT1001 is the basic, practical model in BEONDT's pulsed eddy current series, emphasizing rapid on-site screening and cost-effectiveness, making it suitable for industrial users who require regular large-area corrosion surveys. For more complex or higher-precision testing needs, BEONDT tech also offers upgraded models (such as the DT2008) to meet different scenarios.
Item No :
DT1001Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
BLACKShipping Port :
SHANGHAILead Time :
15DAYS
The DT1001 pulsed eddy current detector can detect corroded areas in metal objects without removing or restoring the insulating coating (non-conductive coating) on the metal. It can measure the thickness of metal through insulating layers such as rust, dirt, scale deposits, or paint up to 60mm deep.
The DT1001 pulsed eddy current detector measures the average thickness of the metal under the sensor. Users need to find a point of known thickness on the workpiece to calibrate the device, after which the device will measure all other points relative to the calibration point. It is suitable for general area corrosion and large-scale canker corrosion, both internal and external, of metals.
Application Scenarios
1) Detecting corrosion on metal components of ships through thick paint layers
2) Detecting metal corrosion in pipes with internal cement coatings
3) Detecting corrosion in metal brackets of streetlights
4) Detecting rusted steel pipes without cleaning
5) Corrosion detection in PU insulated pipes
6) Corrosion detection in pipes with three-layer polypropylene coatings
Technical Parameters
Steel thickness measurement range (sensor can be customized):
Average thickness measurement error: <10%, error remains below 5% on normal workpieces
Insulation coating thickness range: 0~60mm (sensor can be customized upon request)
Using DTP1001 sensor: 0~60mm
Using DTP1002 sensor: 0~120mm
Minimum diameter of the pipe being inspected: 25mm
Temperature of the metal being inspected: -20℃~+100℃
Surface temperature of the housing at the sensor location: -20℃~+60℃
Ambient temperature range: -20℃~+50℃
Continuous operating time: ≤8 hours
Cable length: 1.5m
Main unit dimensions: 232x135x44mm
Main unit weight: <800g
