Product Details

AI163 Acoustic Imaging

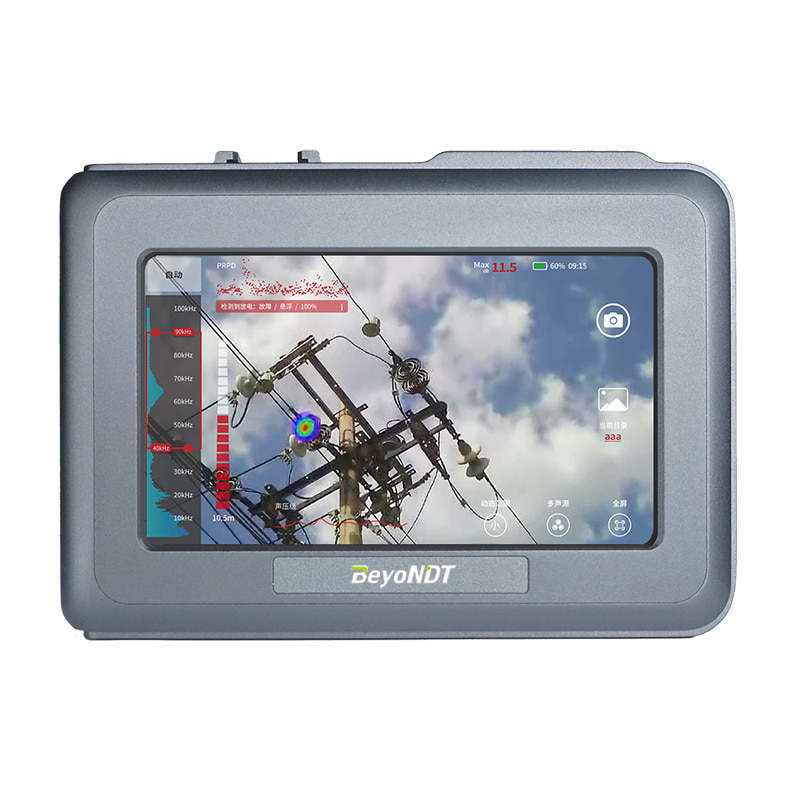

BEYONDT AI163 is a handheld ultrasound source imaging device and one of BEYONDT's "Multi Ear God" acoustic camera series products. The microphone array of AI163 includes 163 high-sensitivity digital MEMS ultrasonic microphones, optimized in a spiral array design that balances the size of the microphone array with the portability of the device. AI163 uses a large number of microphones and a large array surface, while balancing low-frequency and high-frequency imaging performance, with good imaging effects from 2kHz to 100kHz.

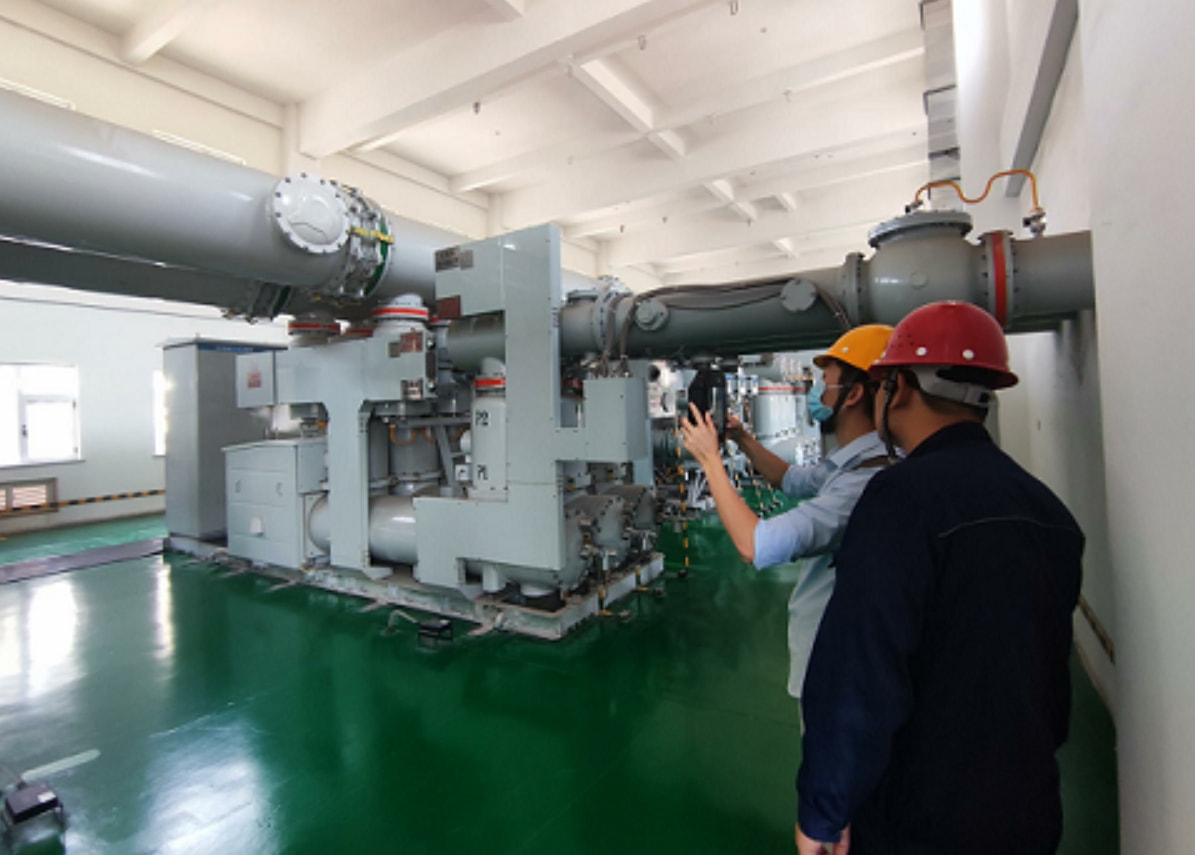

AI163 has good portability and practicality, with a 7-inch touch screen that is just the right size, providing a sufficiently large display area while appearing lightweight. The display screen has a resolution of up to 1920 × 1200, and the visible light camera has a maximum pixel count of 13 million, providing clear display of sound imaging effects. The battery has a continuous working time of more than 4 hours and a comprehensive usage time of at least one day. The equipment weighs 1.2kg and is an ideal testing instrument for inspection engineers, suitable for long-distance and large-scale inspection work.

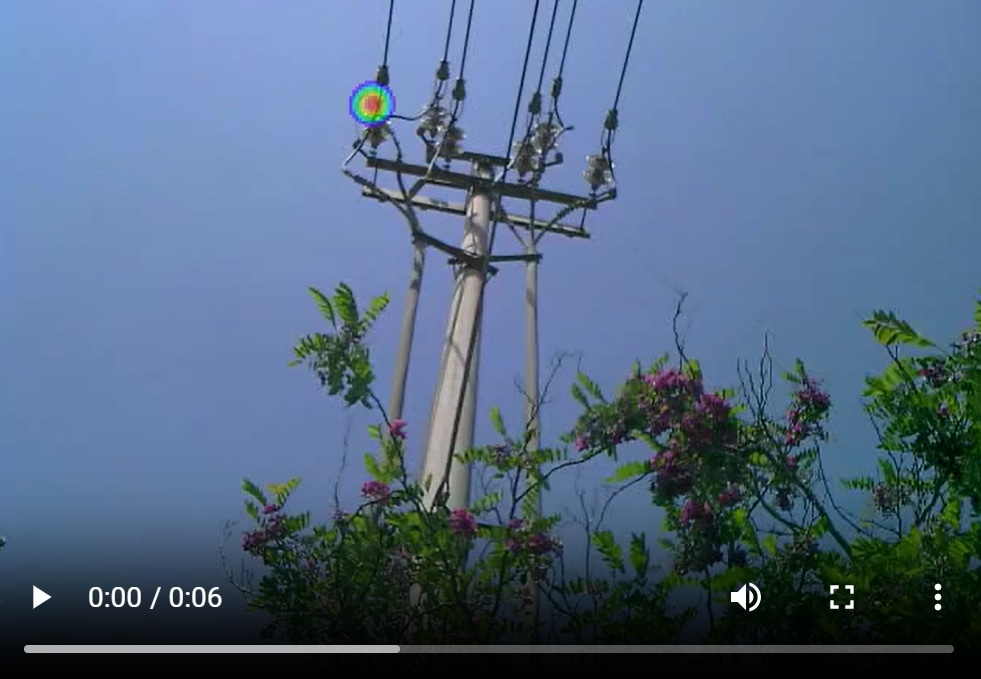

AI163 has functions such as automatic discrimination of partial discharge types and estimation of leakage, which help engineers to judge signal characteristics in an intuitive way. AI163 supports fully automatic imaging mode without setting, greatly reducing the complexity of use.

Technical Parameter

Number of microphones	136/163
Microphone signal-to-noise ratio	64.3 dB(A)
Positioning frequency range	2kHz ~ 100kHz
Microphone sensitivity	-26 dBFS (1 kHz, 94 dB SPL)
Acoustic refresh rate	25FPS real-time refresh
Display Size	5 inches/7 inches
Camera Pixel	13 million
Wan Communication Interface	Type-C/Bluetooth/WiFi
Battery capacity	3400 mAh
Battery usage duration	5.5 hours and 4 hours
Weight	820 g1.2 kg
Explosion proof mark	Ex ic IIC T6 Gc optional
