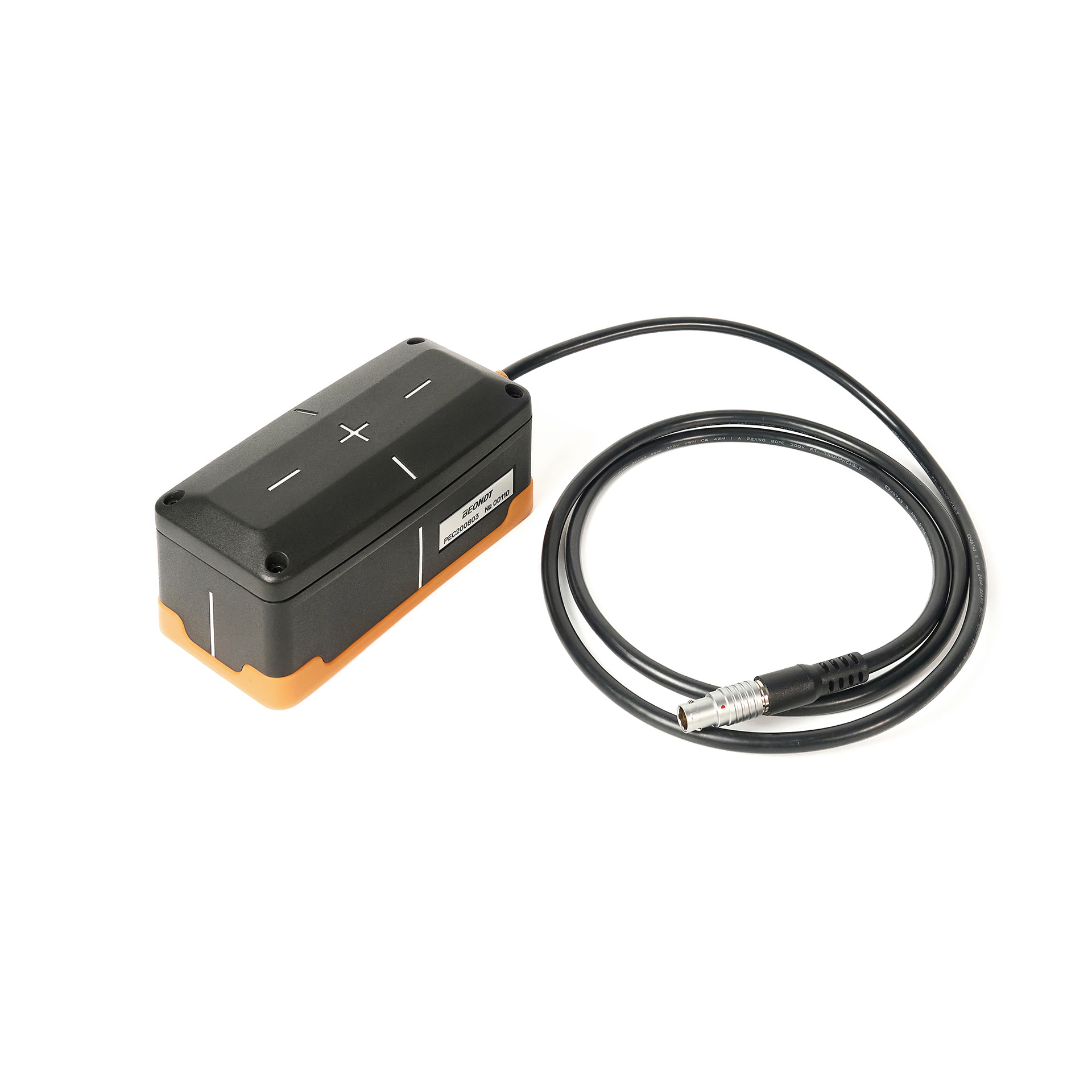

The BEONDT PEC200804 is a dedicated ferromagnetic sensor designed for use with the DT2008 handheld pulsed eddy current (PEC) testing instrument. It is specifically calibrated and developed for ferromagnetic steel materials, including low-carbon steel, Grade 20 steel, Q245R, Q345B, 16Mn, and chromium-molybdenum alloy steel. Unlike probes designed for non-ferromagnetic stainless steel applications, this sensor is optimized specifically for carbon steel inspection.
Item No :
PEC200804Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
BLACKShipping Port :
SHANGHAILead Time :
10DAYSThe PEC200804 addresses key industry challenges associated with the high magnetic permeability of carbon steel, including magnetic saturation, signal nonlinearity, wall thickness quantification drift, and interference from steel cladding beneath insulation.
It is primarily designed for in-service corrosion under insulation (CUI) inspection of carbon steel pipelines and storage tanks in the petrochemical, power generation, and district heating industries.

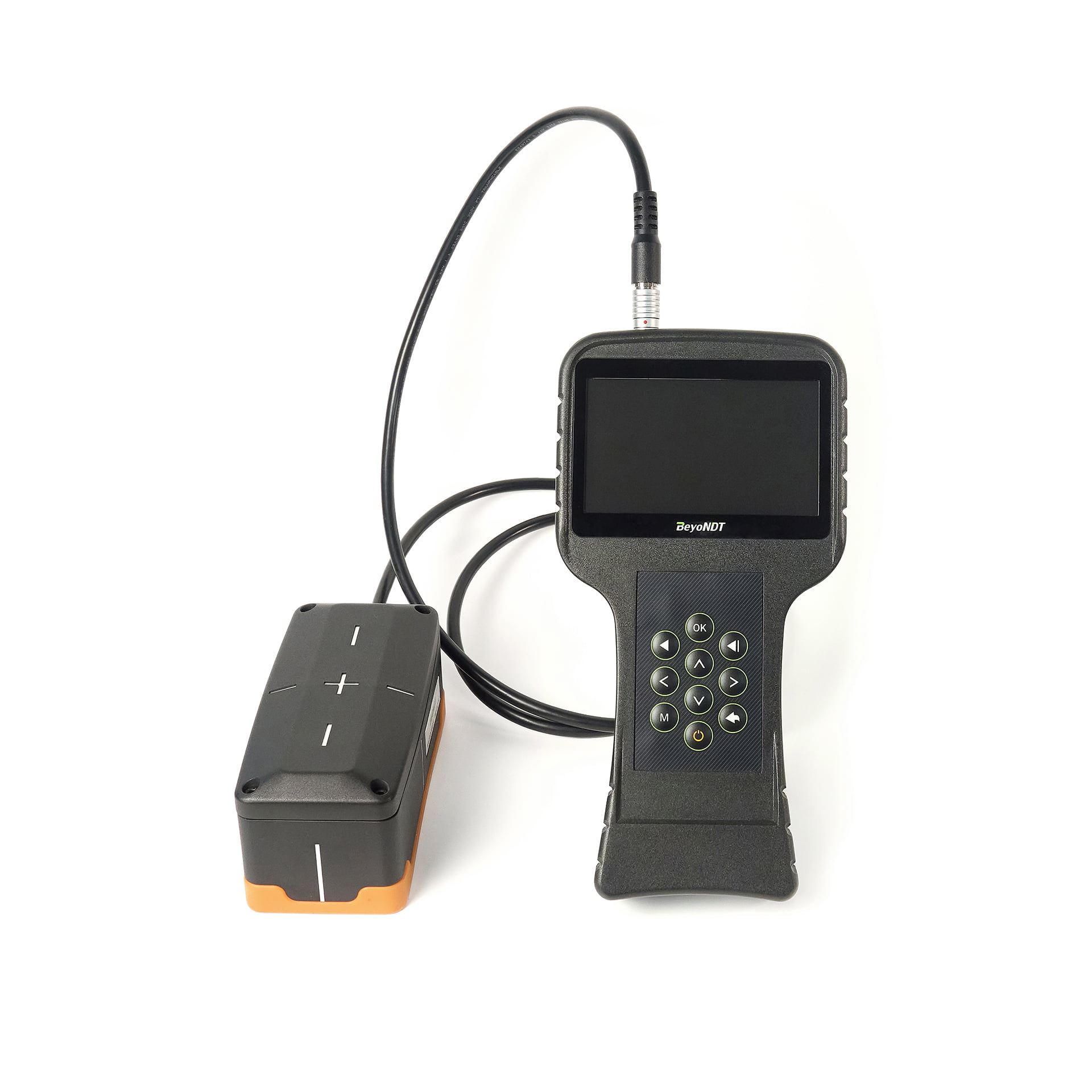

When connected to the DT2008 instrument, the sensor is automatically recognized, allowing users to switch to the dedicated carbon steel inspection algorithm with a single operation.
| Parameter | Specification |
|---|---|
| Sensor Model | PEC200804 |
| Sensor Type | Carbon Steel-Specific Pulsed Eddy Current Sensor |
| Compatible Instrument | DT2008 Handheld Pulsed Eddy Current Testing Instrument |
| Applicable Materials | Low-carbon steel, Grade 20 steel, Q245R, Q345B, 16Mn, chromium-molybdenum alloy steel, and other ferromagnetic steels |
| Metal Wall Thickness Range | 0–30 mm |
| Insulation/Cladding Thickness Range | Depends on the cladding material and inspection conditions, as detailed below |
| Sensor Model | Material Under Inspection | Cladding Material | Metal Wall Thickness Range | Insulation/Cladding Thickness Range |
|---|---|---|---|---|
| PEC200804 | Carbon steel | No cladding | 0–30 mm | 0–200 mm |
| PEC200804 | Carbon steel | Stainless steel cladding | 0–30 mm | 0–200 mm |
| PEC200804 | Carbon steel | Aluminum cladding | 0–30 mm | 0–180 mm |
| PEC200804 | Carbon steel | Galvanized steel cladding | 0–30 mm | 0–150 mm |
| PEC200804 | Stainless steel | All listed cladding types | — | Not applicable (X) |
Note: The inspection ranges above are based on the supplied specifications. Actual performance may vary depending on material properties, cladding conditions, and the inspection setup.
Dedicated carbon steel calibration: Optimized for ferromagnetic steel materials and carbon steel corrosion inspection.
Compatible with the DT2008: Designed specifically for the BEONDT DT2008 handheld pulsed eddy current testing instrument.
Automatic sensor recognition: Enables convenient identification and switching to the dedicated carbon steel inspection algorithm.
Improved measurement stability: Designed to address magnetic saturation, signal nonlinearity, and wall thickness quantification drift associated with carbon steel.
Reduced cladding interference: Designed to mitigate interference caused by steel cladding beneath insulation.
In-service CUI inspection: Supports corrosion screening without removing insulation, subject to the applicable inspection conditions.
The BEONDT PEC200804 Carbon Steel-Specific Pulsed Eddy Current Sensor provides a dedicated solution for carbon steel corrosion screening, helping improve inspection efficiency and measurement reliability in demanding industrial environments.
