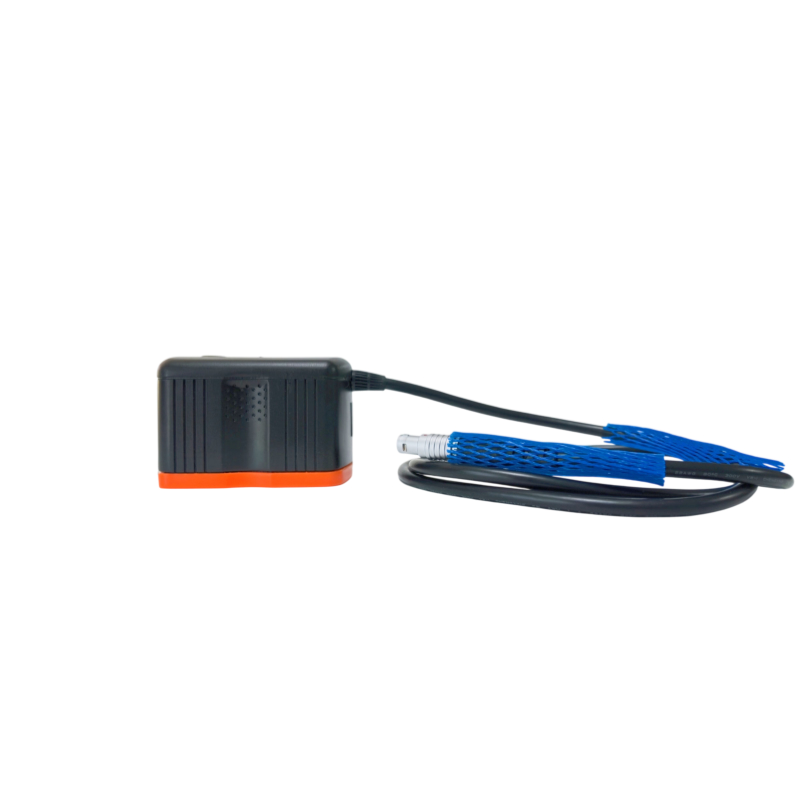

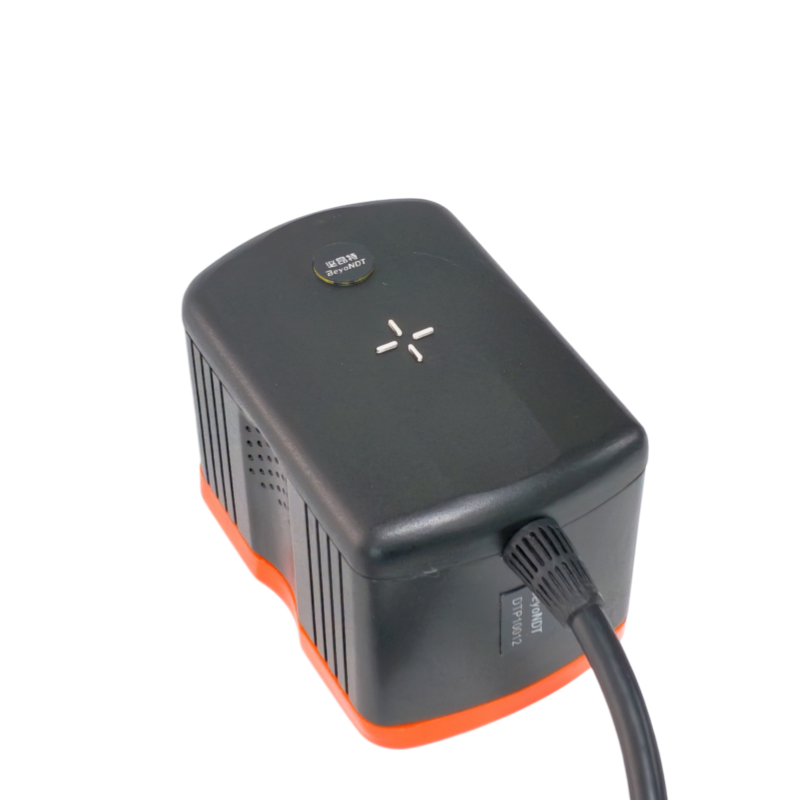

The BEONDT DTP10012 Pulsed Eddy Current (PEC) Sensor is a large-format, high-penetration inspection probe designed for corrosion detection in industrial equipment. Compatible with BEONDT's range of pulsed eddy current testing instruments, it provides an efficient and rapid solution for corrosion under insulation (CUI) screening in the oil and gas, petrochemical, power generation, energy, and heavy industrial sectors.
Item No :
DTP10012Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
BLACKShipping Port :
SHANGHAILead Time :
10DAYSFeaturing an optimized electromagnetic design, the DTP10012 measures 92 mm × 63 mm × 63 mm and weighs approximately 756 g. While remaining portable for field use, it delivers enhanced excitation capability and inspection sensitivity, making it suitable for assessing metal wall thickness beneath relatively thick insulation or cladding.
Based on Pulsed Eddy Current (PEC) technology, the DTP10012 enables rapid inspection of metallic structures through insulation or cladding without removing the insulation, grinding the surface, or using couplant. With a cladding thickness of approximately 60 mm, the sensor can detect a metal wall thickness of approximately 18 mm. As the cladding thickness decreases, the probe can detect thicker metal sections. For thinner metal structures, it can accommodate thicker cladding during corrosion screening, depending on the specific inspection conditions.
With its larger inspection coverage area and strong penetration capability, the DTP10012 is particularly suitable for rapid corrosion assessment of large industrial structures, including long-distance transmission pipelines, refinery and petrochemical process piping, storage tanks, and pressure equipment. It is especially well suited for corrosion under insulation (CUI) screening, corrosion assessment in concealed areas, and field inspection applications where conventional ultrasonic testing can be difficult to perform.
Compatible with BEONDT PEC instruments: Designed for use with BEONDT's range of pulsed eddy current testing instruments.
Large-format probe design: Provides enhanced penetration capability for demanding inspection conditions.
No insulation removal required: Enables inspection through insulation or cladding without removing it.
No couplant required: Supports efficient field inspection without ultrasonic couplant.
Suitable for thick insulation: Designed for corrosion screening beneath relatively thick insulation or cladding.
Efficient large-area scanning: Helps improve on-site inspection efficiency and coverage.
Wide industrial applications: Suitable for the oil and gas, petrochemical, power generation, energy, and pressure vessel industries.
The BEONDT DTP10012 Pulsed Eddy Current Sensor combines enhanced penetration capability with a larger inspection coverage area, providing reliable and efficient technical support for corrosion risk assessment in complex industrial environments.
Customize EMAT probe for clients according to your requirements.
Details
Customize EMAT high-temperature probe for clients according to your requirements.
Details
EMAT probe with wheels.Customize EMAT probe for clients according to clients' requirements.
Details
The BEONDT DTP10011 Pulsed Eddy Current (PEC) Sensor is a high-performance inspection probe developed for industrial corrosion detection applications. Compatible with BEONDT's range of pulsed eddy current testing instruments, it provides an efficient and rapid corrosion screening solution for the oil and gas, petrochemical, energy, pressure vessel, and pipeline industries.
Details
The BEONDT DTP10012 Pulsed Eddy Current (PEC) Sensor is a large-format, high-penetration inspection probe designed for corrosion detection in industrial equipment. Compatible with BEONDT's range of pulsed eddy current testing instruments, it provides an efficient and rapid solution for corrosion under insulation (CUI) screening in the oil and gas, petrochemical, power generation, energy, and heavy industrial sectors.
Details
The BEONDT PEC200804 is a dedicated ferromagnetic sensor designed for use with the DT2008 handheld pulsed eddy current (PEC) testing instrument. It is specifically calibrated and developed for ferromagnetic steel materials, including low-carbon steel, Grade 20 steel, Q245R, Q345B, 16Mn, and chromium-molybdenum alloy steel. Unlike probes designed for non-ferromagnetic stainless steel applications, this sensor is optimized specifically for carbon steel inspection.
Details

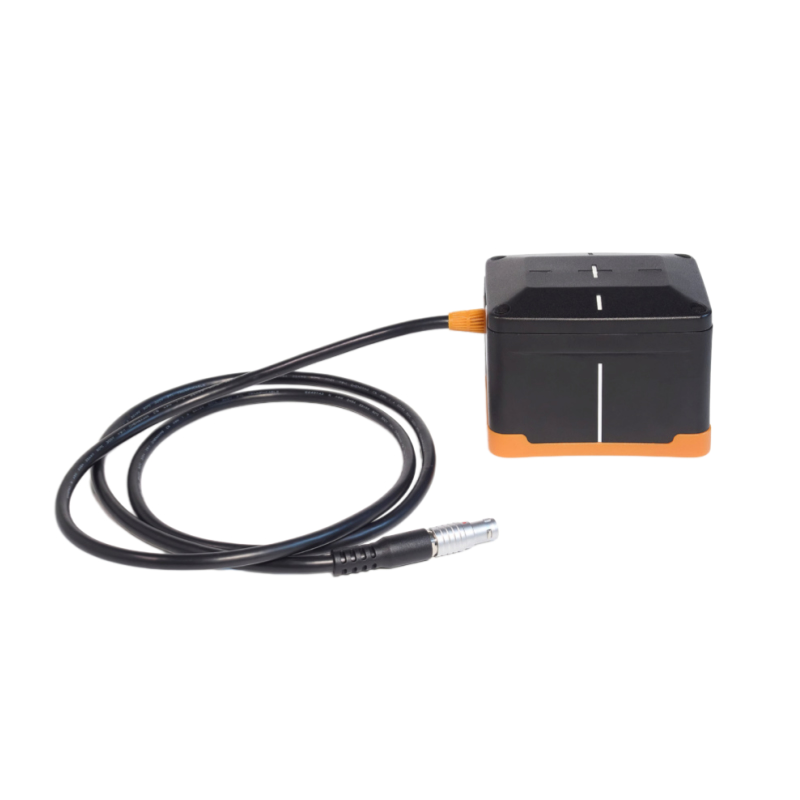

The BEONDT PEC200805 is a dedicated probe designed for use with the DT2008 handheld pulsed eddy current (PEC) testing instrument. It is independently calibrated and optimized by BEONDT for stainless steel materials, including austenitic, duplex, and ferritic stainless steels such as 304, 316L, 2205, 321, and 430.
