Customized EMAT Probe Up To 800℃

Customize EMAT high-temperature probe for clients according to your requirements.

Item No :
H800
Order(MOQ) :
1
Payment :
T/T
Product Origin :
CHINA
Color :
Customized
Shipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.
Lead Time :
2-30DAYS

Inquire Now

Product categories

New Products

Product Details

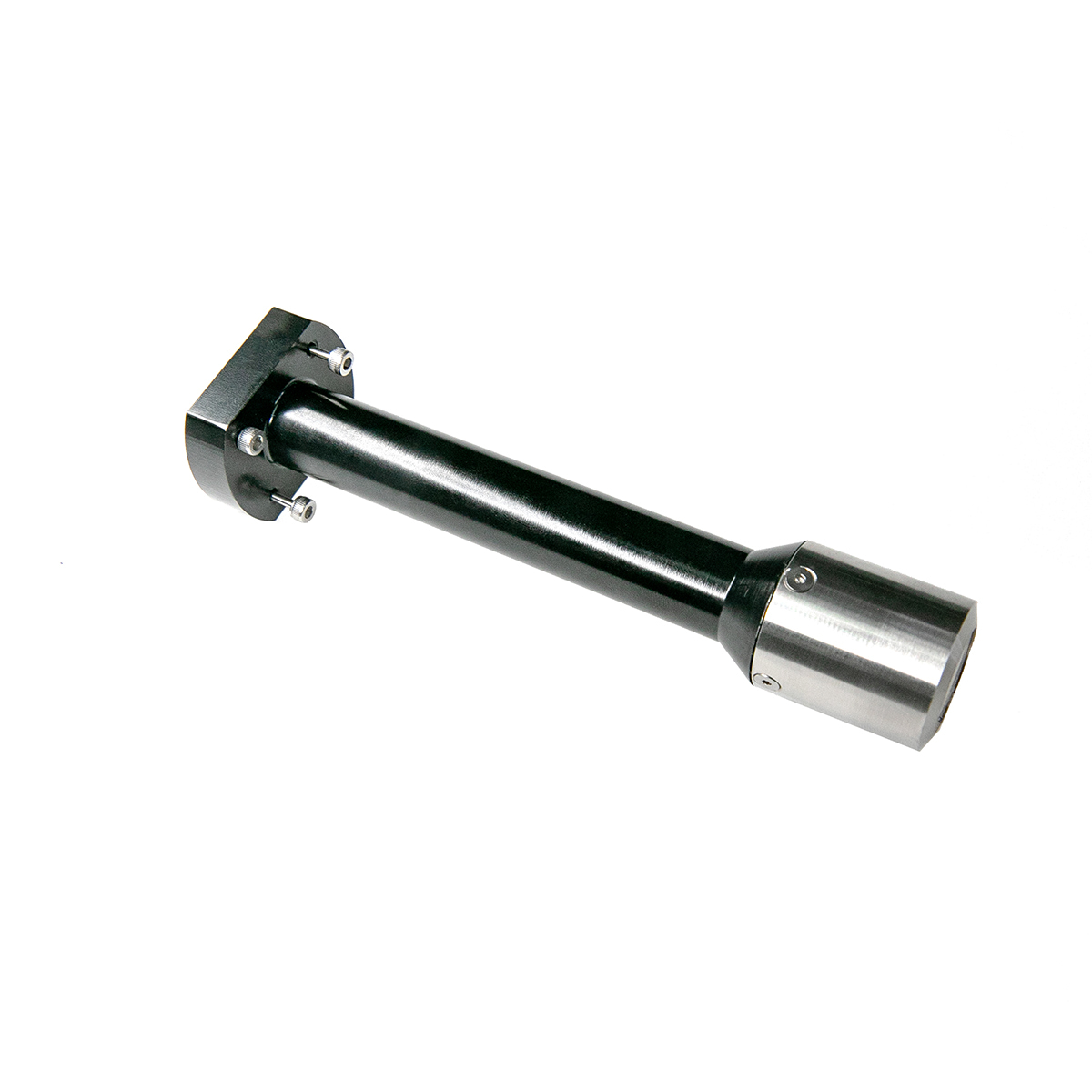

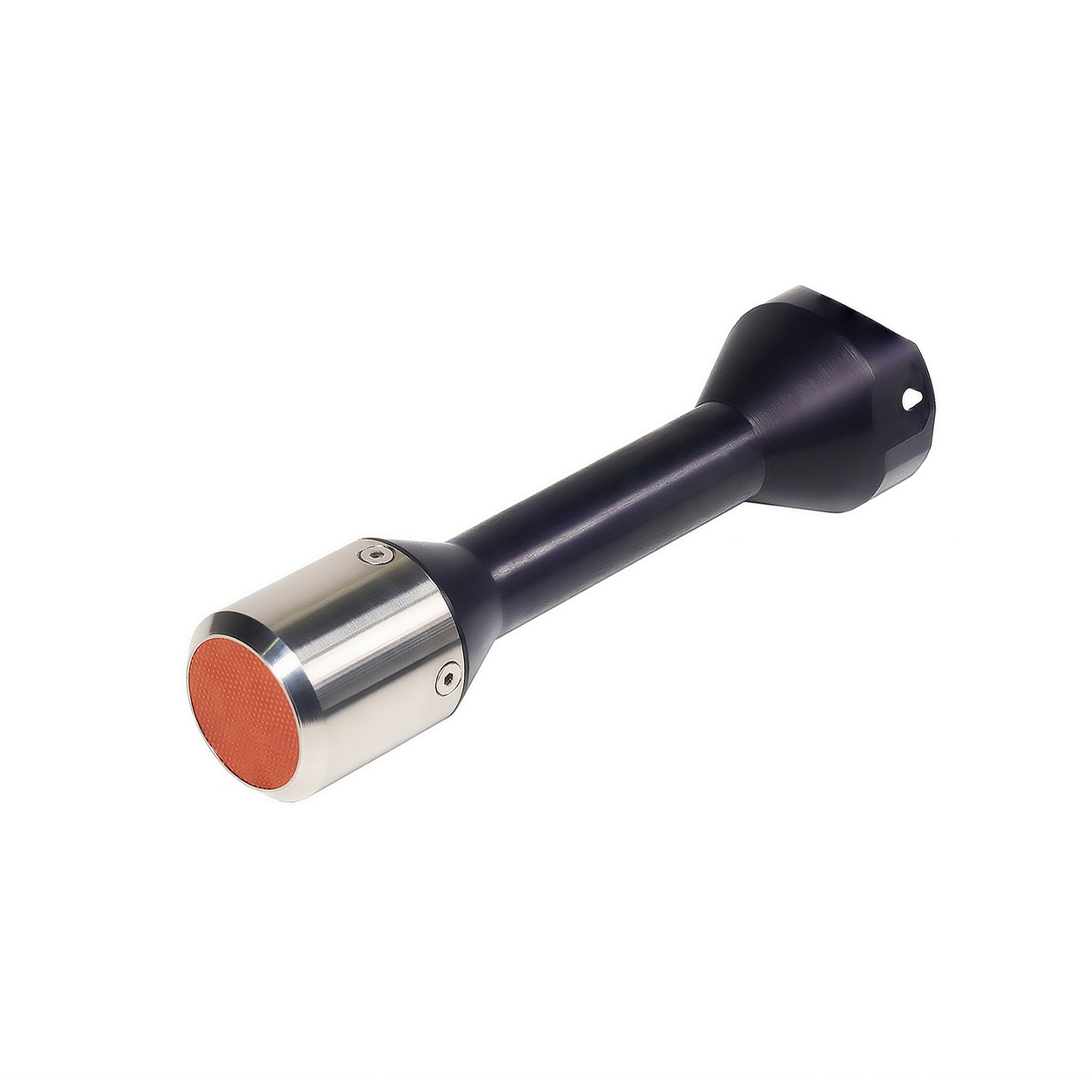

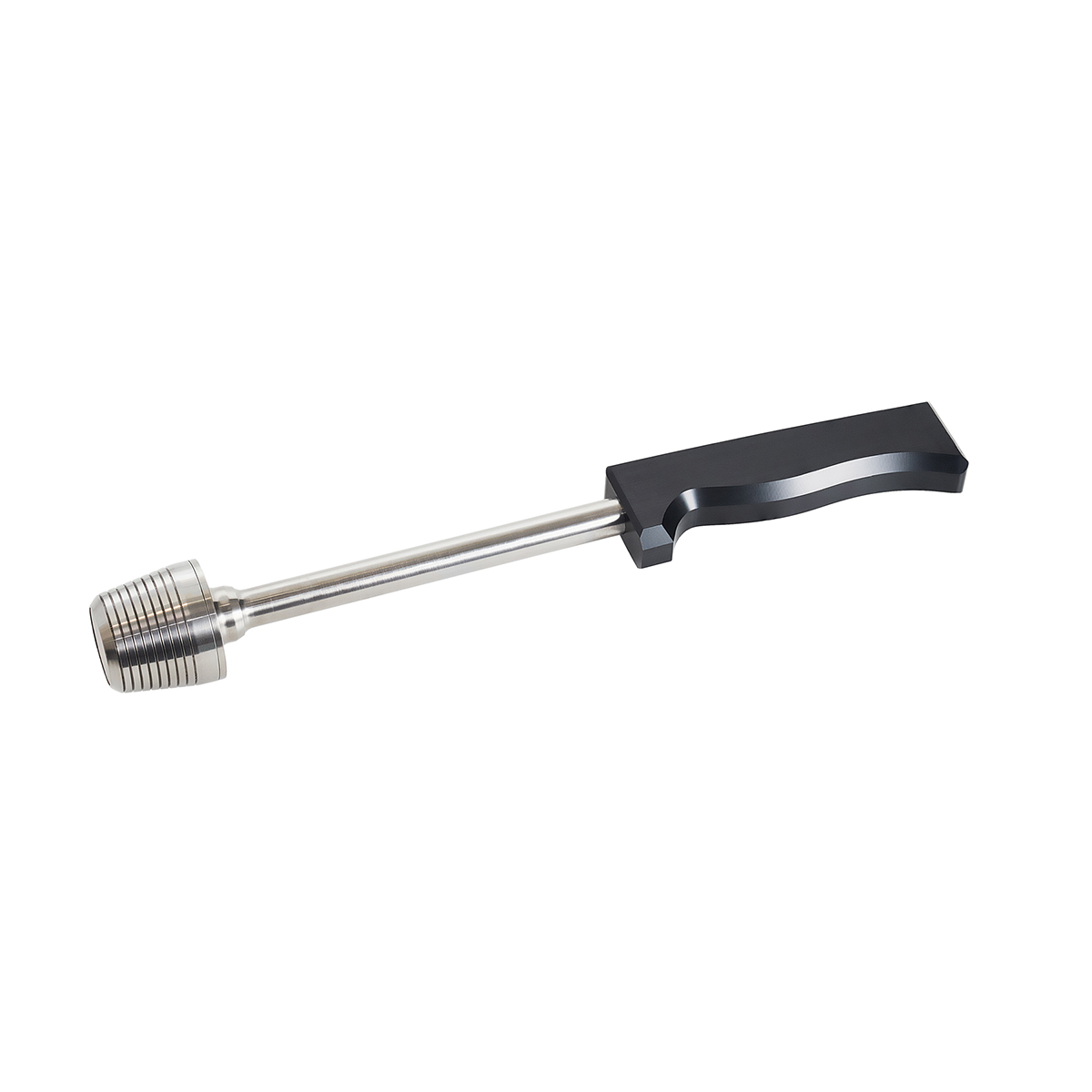

Customized EMAT Probe Up To 800℃

Customize EMAT probe for clients according to clients' requirements.Can measure on high-temperature objects up to 800℃.

Technical Parameter

Probe Diameter	≥φ20（customized）
Mesurement Range of metal	1-250mm
Accuracy	0.01mm
Measurement error	≤ 0.08mm
Gap between the sensor and the detected workpiece	2mm~4mm
Measurable coating thickness	0-12mm
Temperature range of objects	-20~+800℃
Weight	200g

Note:

Customized production can be carried out according to the customer's drawings and technical parameters.

Why choose BEYONDT?

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.

2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.

3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.

Hot Tags : high temperature emat probe electromagnetic acoustic transducer probe emat testing probe high temperature emat sensor electromagnetic acoustic transducer sensor emat thickness gauge probe
