Customized EMAT Probe With Wheels

EMAT probe with wheels.Customize EMAT probe for clients according to clients' requirements.

Item No :
6750
Order(MOQ) :
1
Payment :
T/T
Product Origin :
CHINA
Color :
Customized
Shipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.
Lead Time :
2-15days

Inquire Now

Product categories

New Products

Product Details

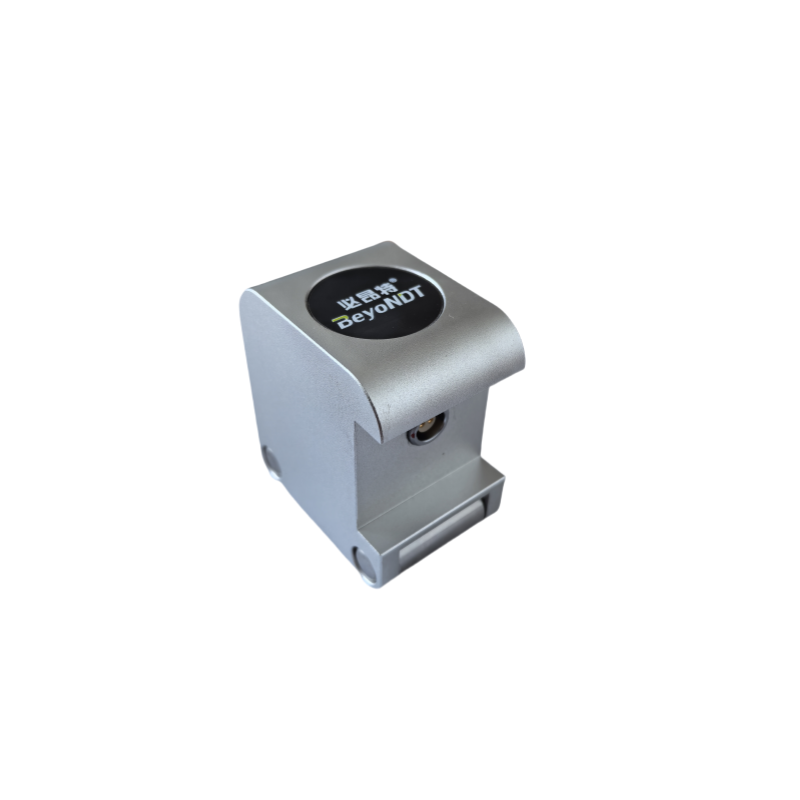

Customized EMAT Probe with wheels

Customize EMAT probe for clients according to clients' requirements.Can measure on high-temperature objects up to 200℃.

Technical Parameter

Probe with wheels	inspect auto（customized）
Mesurement Range of metal	1-250mm
Accuracy	0.01mm
Measurement error	≤ 0.08mm
Gap between the sensor and the detected workpiece	2mm~4mm
Temperature range of objects	-20~+200℃
Weight	200g

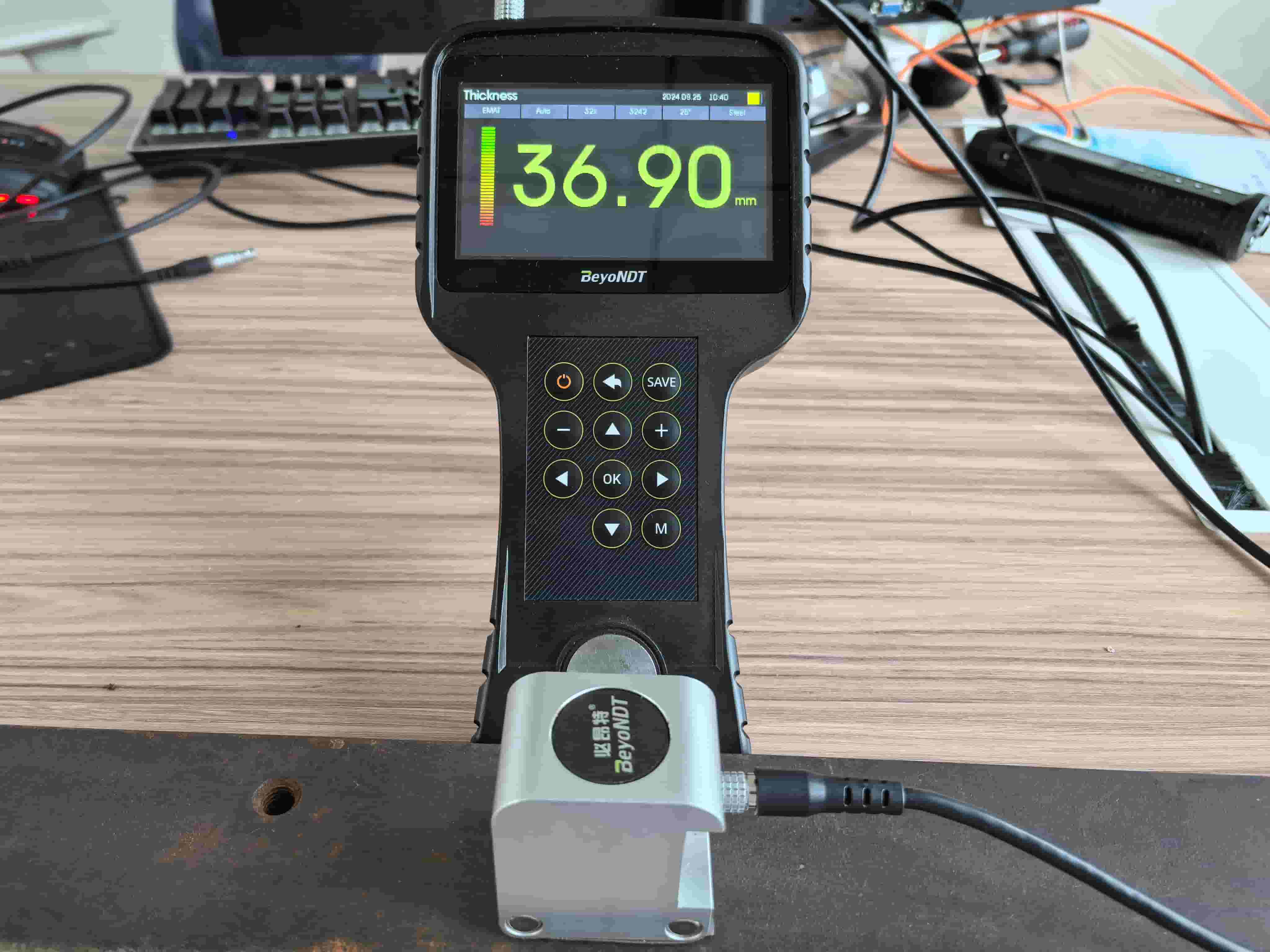

EMAT thickness gauge inspects as a scanner

Note:

Customized production can be carried out according to the customer's drawings and technical parameters.

Why choose BEYONDT?

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.

2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.

3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.

Hot Tags : emat probe emat inspection emat ultrasonic electromagnetic transducer emat ndt electromagnetic acoustic transducer
