This is an integrated solution for industrial and commercial energy storage. Its versatility extends to applications such as commercial energy storage, microgrid energy storage, power generation, and transmission and distribution energy storage. Offering seamless integration and cutting-edge technology, it’s engineered to address a wide array of energy storage requirements.
Item No :
ESS-200Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :

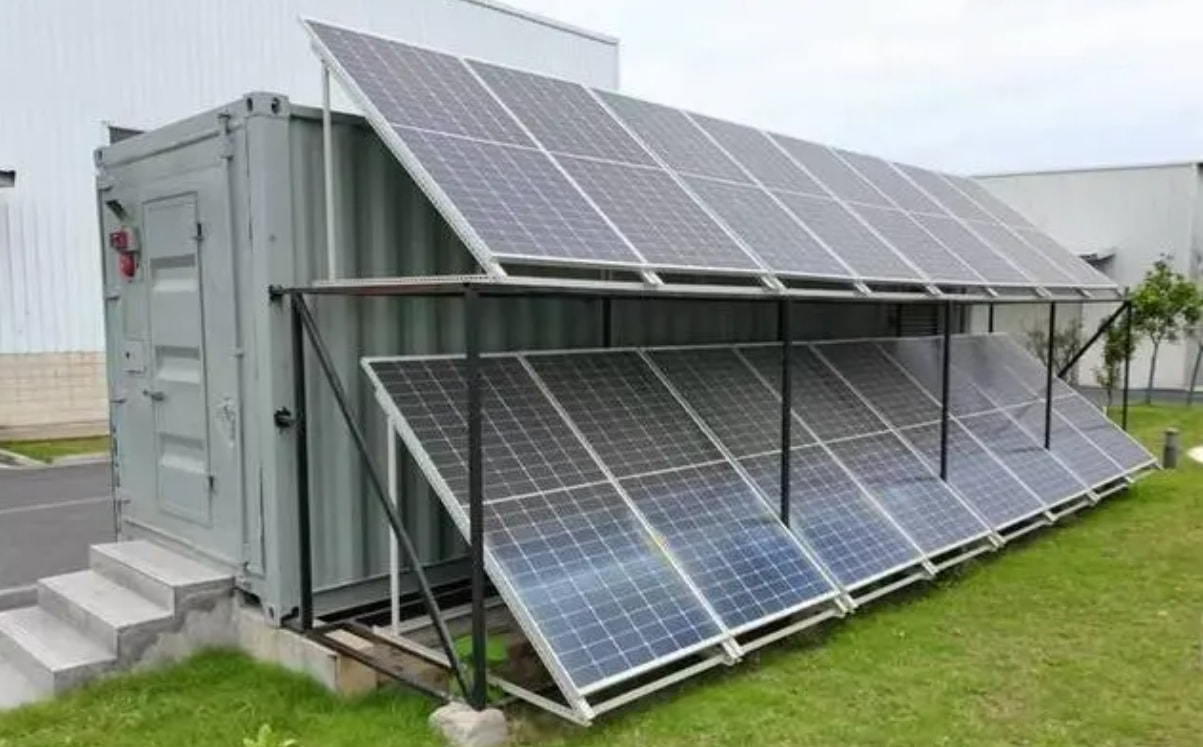

10-20Days200kW Solar Industrial Commercial Energy Storage System
The 200kW system is a high-performance off grid energy storage system independently developed by BEYONDT, using high-quality lithium iron phosphate batteries and equipped with an intelligent BMS battery management system,Long cycle life, high safety performance, good sealing, equipped with high-frequency off grid inverter, built-in MPPT controller, providing efficient and reliable energy solutions for photovoltaic off grid power generation systems, energy storage systems, home photovoltaic storage systems, and industrial and commercial energy storage systems.
This system is equipped with a self-developed APP, supports IOS/Android phones, remotely controls ESS system charging and discharging, real-time system operation data, and quickly eliminates faults in system operation to efficiently restore effective power supply.
It supports dedicated applications such as optimization of photovoltaics with self consumption, peak shaving, backup power, and EV charging infrastructure support. This series combines the economic returns of on-grid operation with the security of a microgrid when the grid may fail.
Technical Parameter
| No. | Item Name | Basic Parameter |
| 1 | Battery Type | LiFePO4 |
| 2 | Model | ESS-200 |
| 3 | Battery Cell Type | LFP 3.2V/280Ah |
| 4 | Rated capacity | 372kWh |
| 5 | System | 1P416S |
| 6 | Rated Voltage | 1331.2V |
| 7 | Battery voltage factor | 1123.2~1497.6V |
| 8 | Maximum output current | 184A |
| 9 | AC rated voltage | 690V |
| 10 | Container Size | 2300x2500X1400mm |
| 11 | Isolation method | Transformer isolation (standard configuration) |
| 12 | Weight | 4.5T |
| 13 | Protection level | IP54/55 |
| 14 | Corrosion protection level | C4/C5 |
| 15 | Operating temperature range | -30 to 60C |
| 16 | Degree range | 0-95% |
| 17 | Cooling method | Intelligent Liquid Cooling |
| 18 | Firefighting methods | Aerosol/perfluorohexadone (optional) |
| 19 | Maximum altitude | 4000M |
| 20 | Communication protocol | Modbus.TCP/ModbuS-RTU/EC104 |
| 21 | Communication method | RS485/Etheret |
Features
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
We have more than three decades of distinguished experience in UPS battery manufacturing, supply, testing, installation, and commissioning.
