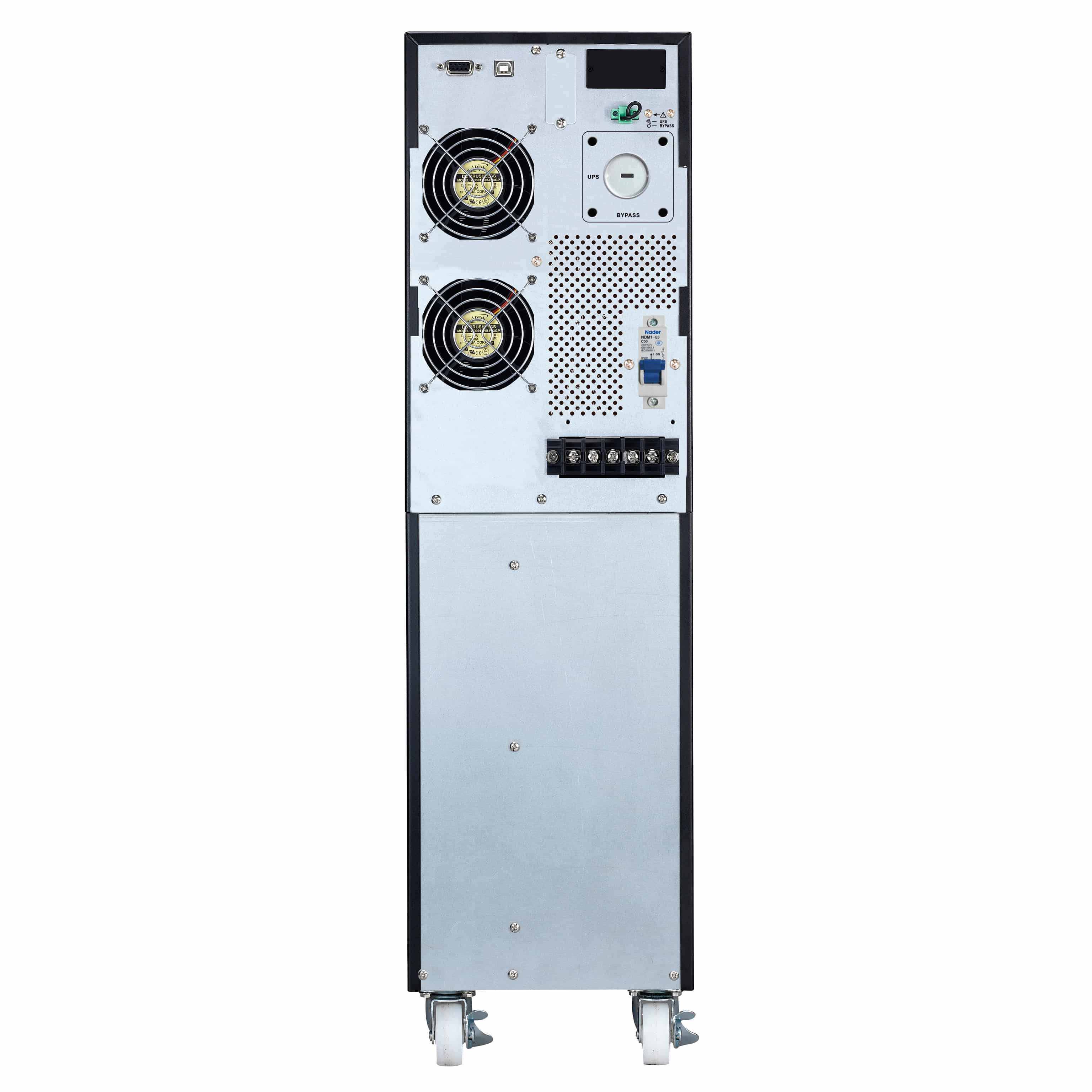

10kVA to 500kVA Battery Backup Modular UPS

10kVA to 500kVA Battery Backup Modular UPS

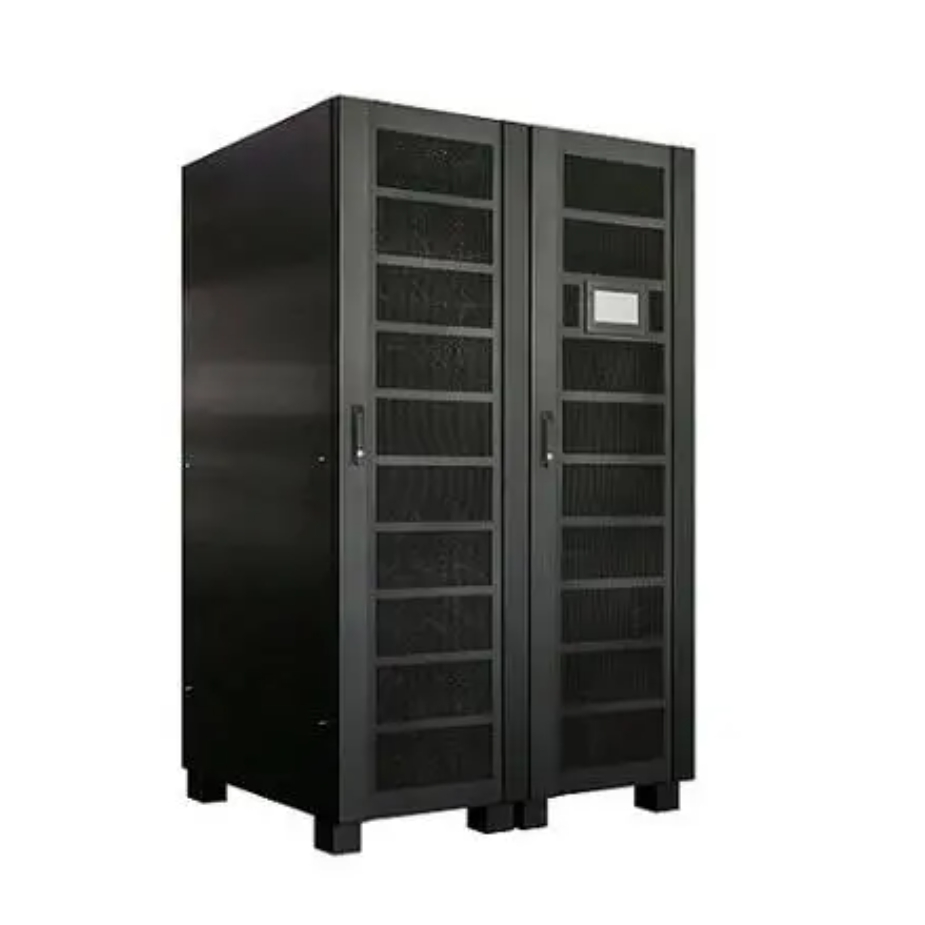

The AM91 series modular UPS power supply is a leading fully digital uninterruptible power supply product in the industry, adopting the most advanced technological achievements in the fields of power electronics and automatic control.

Performance Characteristics

• Intelligent digital control

Each power module is equipped with dual DSP controllers, which achieve fully digital control of rectification, inversion, charging, discharging, static bypass switching, etc. The power modules have independent current sharing control, with no single point of failure risk

The system has an independent charging unit, powerful charging capability, and the battery management process is managed by a comprehensive battery management solution built into the main monitoring system, effectively extending the battery's service life

• Energy conservation and environmental protection

The input power factor of the whole machine is greater than 0.99, the input harmonic is less than 3%, and the whole machine.

Efficiency reaches over 95%, and intelligent sleep function is adopted to effectively improve the overall operating efficiency of the machine.

• Superior architecture

+Adopting the most advanced decentralized control architecture, the entire system control is fully decoupled, avoiding the disadvantages of traditional master-slave control architecture where the main controller has heavy tasks and is prone to system paralysis. Each module is controlled separately, ensuring high system reliability.

The output power factor is 1, KV A=KW, with stronger load capacity. Can carry half wave load.

• Friendly interface

Large touch screen human-machine interface (standard 5.7-inch, optional 10.4-inch), rich in information and simple human-machine interaction.

• Easy maintenance

Each module can be hot plugged online, making the system maintenance and replacement process simple, taking only a few seconds to complete. The STS module and battery module are easy to update and maintain, reducing after-sales maintenance costs.

The system is designed for full frontal maintenance, allowing any part to be maintained from the front and providing a top-down approach for easy on-site installation and wiring.

• Other performance

The system comes with a built-in battery for cold start, which allows the system to be directly started from the battery in the absence of mains power.

The system comes with an EPO emergency stop button, which can instantly shut down the entire machine output in case of emergency.

• Application area

High end data application scenarios such as data centers and network management centers in government, communication, banking, hospitals, and large enterprises.

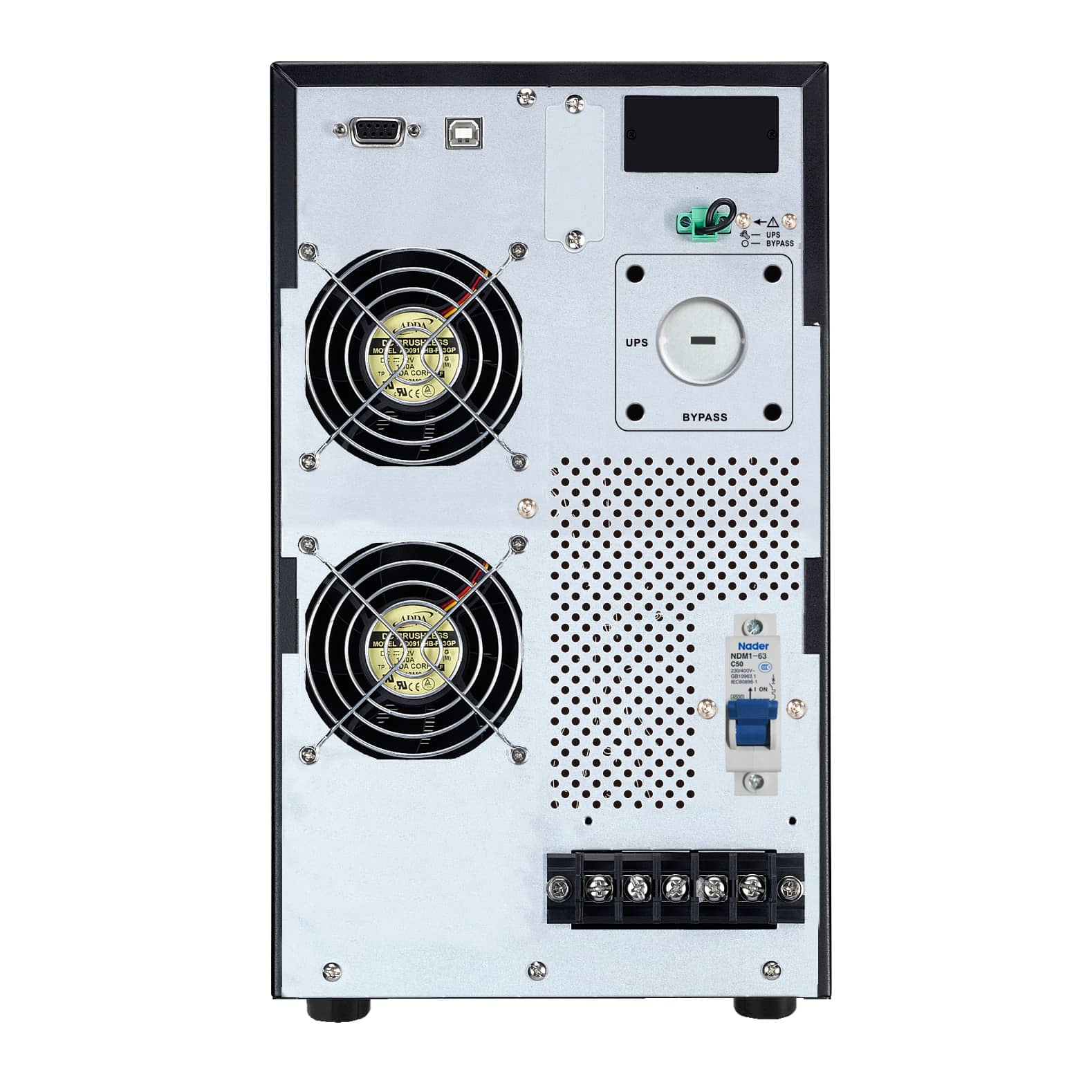

Technical Parameter

High performance index

1. Adopt advanced high frequency switching power supply rectification and PFC (power factor correction) technology, input power factor ≥ 0.99, input harmonic truth degree THDI ≤ 3.5%, is an energy-saving and environmentally friendly green power supply;

2. Wide input voltage range, 160-300Vac under the input single-phase full load condition (the load can reach 115Vac or even lower under 50% load); under the three-phase input full load condition 304～478Vac. The frequency of using the battery is greatly reduced, thereby extending the service life of the battery.

3. Using a new generation of IGBT inverter control technology, the output voltage and current performance is more excellent. Online single-input single-output double conversion structure, supporting 220/230/240Vac, 50/60Hz power grid system.

4. The efficiency of the whole machine is ≥90%, and the efficiency of the whole machine can reach more than 98% in the ECO state;

5. Super load adaptability and output overload and short circuit capacity, 1-3KVA: 120% load 60 seconds, 150% load alarm immediately transfer to bypass; 6-10KVA: 105% ~ 130% load 10 minutes, 130% load 1 second;

6. The temperature compensation and extremely low ripple charger under intelligent control extend the service life of the battery.

Note:

1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.

2. Customized production can be carried out according to the customer's drawings and technical parameters.

Why choose BEYONDT?

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.

2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.

3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
