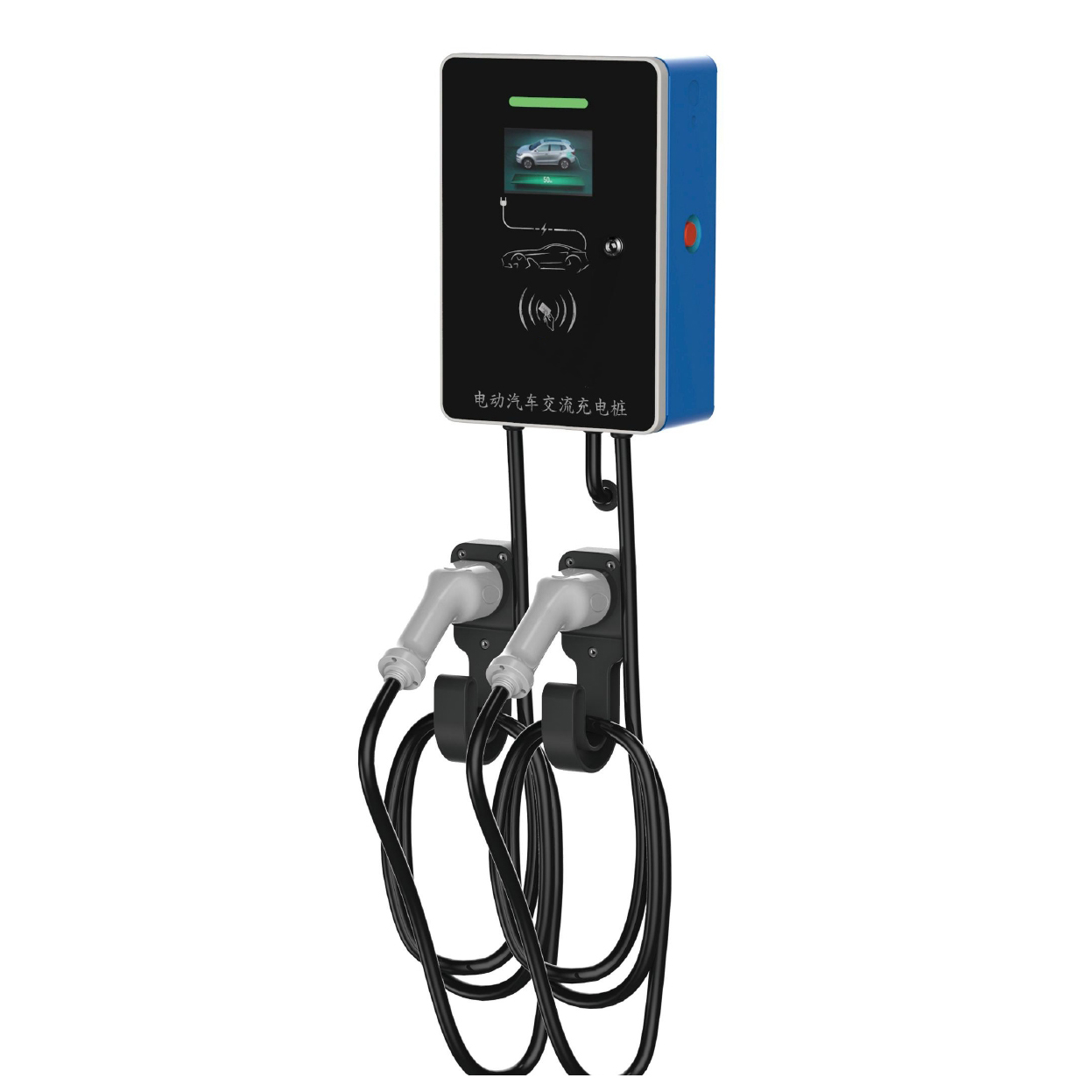

7kW/14kW EV Chargers with dual ports, wall mount, is a state-of-the-art solution for home electric vehicle (EV) charging, combining convenience, efficiency, and advanced technology. This charger is part of Home Charging Station series, is designed to meet the needs of modern EV owners seeking a reliable and smart charging experience.
Item No :
3567Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :
5-20Days7kW/14kW Wall Mount Dual Ports AC EV Chargers
7kW/14kW EV Chargers with dual ports, wall mount, is a state-of-the-art solution for home electric vehicle (EV) charging, combining convenience, efficiency, and advanced technology. This charger is part of Home Charging Station series, is designed to meet the needs of modern EV owners seeking a reliable and smart charging experience. With versatility in mind, the EV charger also provides an outdoor hardwire option, ensuring dependable power delivery for any preferred location, whether mounted on a garage wall or at an outdoor parking facility.Whether for personal use or for enhancing the amenities of a commercial establishment, this dual-port charger with retractors offers a seamless, powerful, and sleek charging experience for all electric vehicles.
Technical Parameter
|
Product name |
AC 7kW/14kW |
|
Input voltage (V) |
220V土15% |
|
Rated frequency (Hz) |
45-60 |
|
Output voltage (V) |
220土15% |
|
Rated current (A) |
16A*2/32A*2 |
|
Rated power (KW) |
7kW/7kW*2 |
|
Number of Outputs |
2 |
|
Charging way |
Swipe cards/Scan the code |
|
Networking mode |
RJ45/4G/LoRa |
|
Display&Touch-Screen Size |
4.3 Inches Touch Screen/screen-free |
|
Monitoring platform (mA) |
Offline management tool/YKC |
|
Dielectric strength |
≥2000v |
|
Leakage protection |
30 |
|
Protection grade |
IP54 |
|
Operating temperature (°C) |
-20~50 |
|
Storage Temperature (°C) |
-40~70 |
|
Type of connection |
Case C connection |
|
Billing method |
Integrated/independent metering |
|
MTBF |
50000h |
|
Safety Parameters |
ver Current, Under Voltage, Residual Current, Surge Protection,Leakage Protection,Short Circuit, etc. |
|
Installation method |
Wall mounted |
|
Material |
Metal |
Note:
1. Customized production can be carried out according to the customer's drawings and technical parameters.
2. Charging plug can be configured according to customer requirements.
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
This series of EV chargers is designed to meet the demands of businesses and public spaces. Convenient home charging.Customized for clients.
Details
7kW/14kW EV Chargers with dual ports, wall mount, is a state-of-the-art solution for home electric vehicle (EV) charging, combining convenience, efficiency, and advanced technology. This charger is part of Home Charging Station series, is designed to meet the needs of modern EV owners seeking a reliable and smart charging experience.
Details
Built to cater to the ever-growing needs of the modern EV owner, this single-port pedestal stands as a testament to the combination of state-of-the-art design and robust functionality.
Details
7kW/14kW EV Chargers with dual ports, pedestal, is a state-of-the-art solution for home electric vehicle (EV) charging, combining convenience, efficiency, and advanced technology. This charger is Home Charging Station series, is designed to meet the needs of modern EV owners seeking a reliable and smart charging experience.
Details
This series of EV chargers is designed to meet the demands of businesses and public spaces. Convenient home charging.Customized for clients.
Details
Smart Charge Connectivity is a standout feature of this charger. Through a mobile app, users can effortlessly manage charge times, schedule charging sessions, track history and usage, and control multiple stations. This smart technology brings convenience to your fingertips, allowing for efficient management of your EV charging needs.
Details
This series of EV fast chargers is designed to meet the demands of businesses and public spaces.We are as a qualified supplier of charging stations for State Grid Corporation of China.
Details
This series of EV fast chargers is designed to meet the demands of businesses and public spaces.
