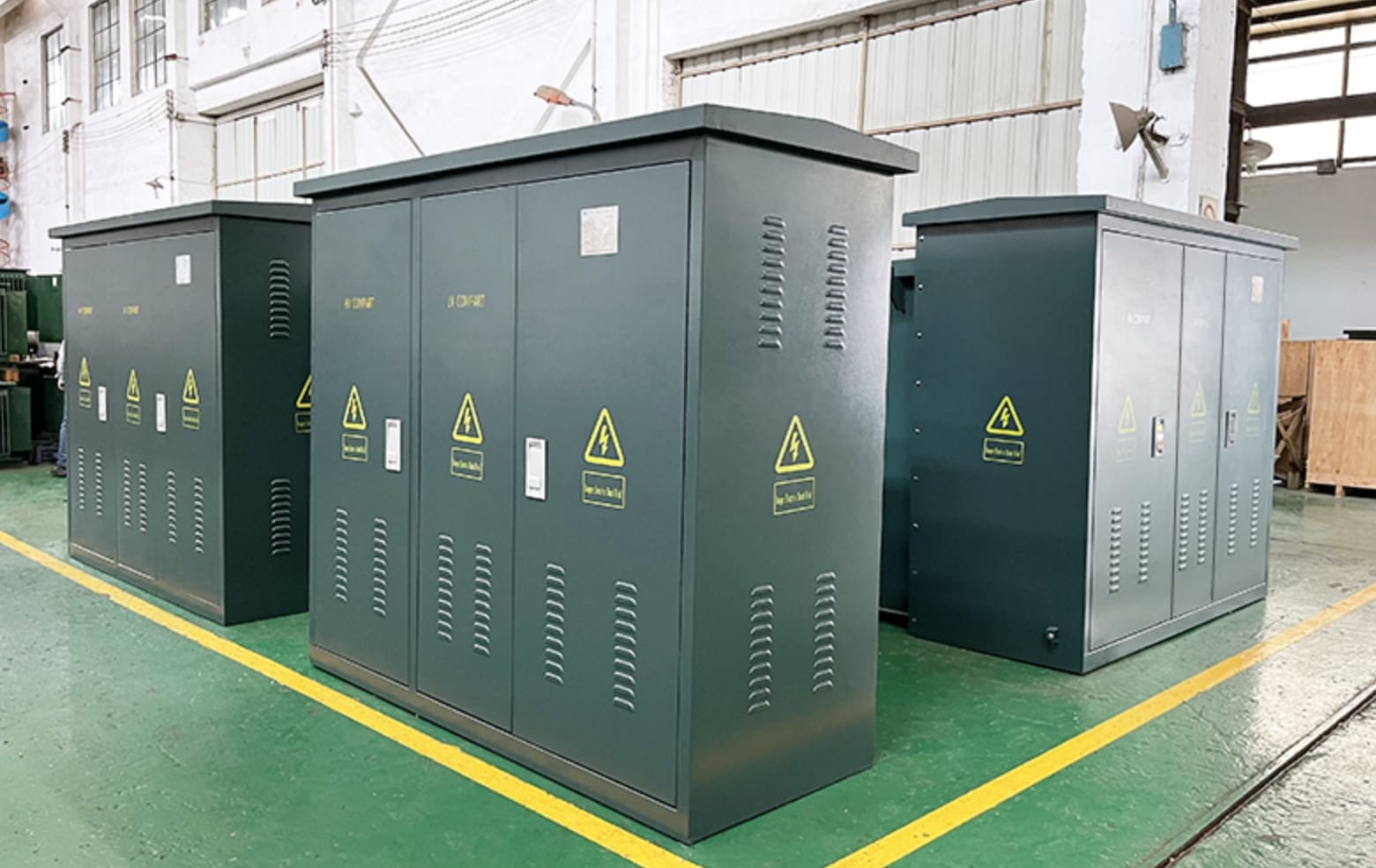

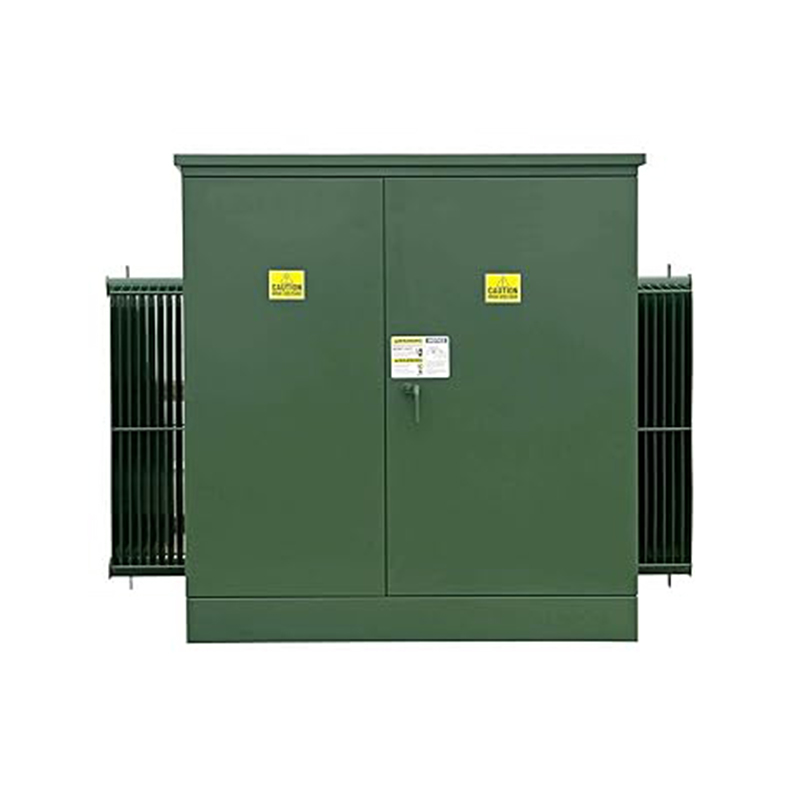

13.2/15/34.5/35kV Three Phase Pad Mounted Transformer

13.2/15/34.5/35kV Three Phase Pad Mounted Transformer

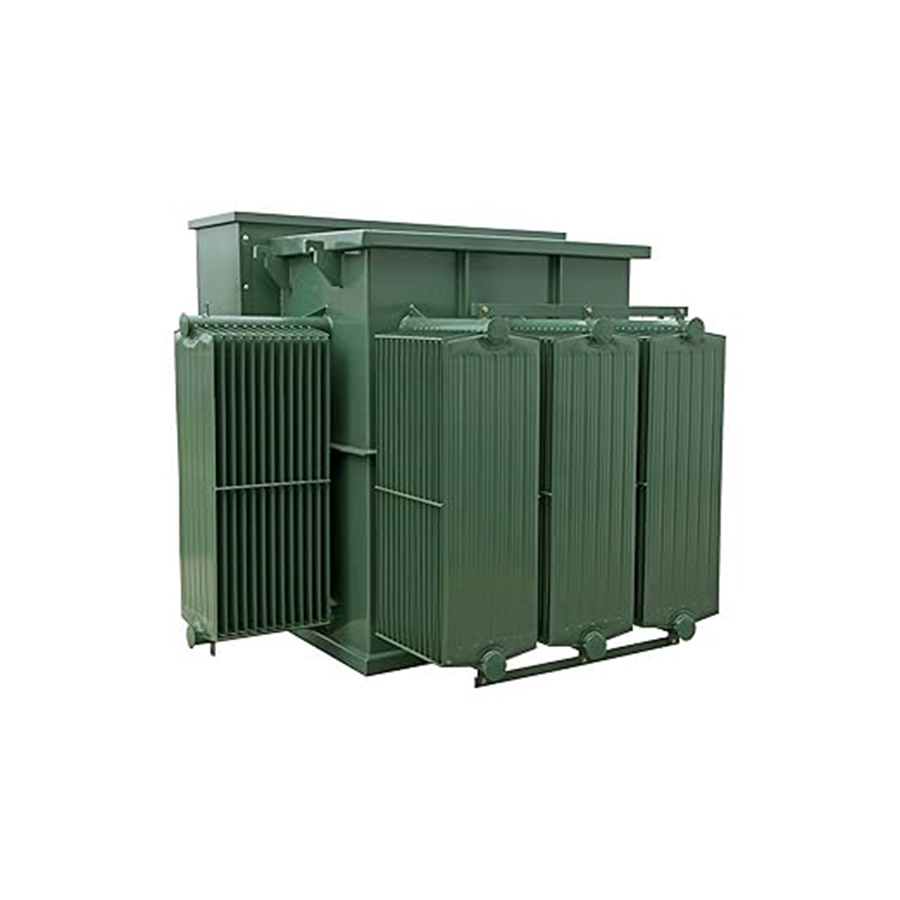

The fuse wire, multi station ring network load switch, and non excited voltage regulating tap changer of this transformer are all installed as components of the transformer in the transformer oil tank. It is easy to replace the fuse wire or operate the load switch outside the oil tank to change the operating conditions of the transformer. The high-voltage side is powered by elbow shaped cables that can be plugged and unplugged with load, and a low-voltage outlet compartment is installed outside the fuel tank. There is space inside the compartment to install protective devices and measuring instruments as required. All live parts are inside the box, with no exposed live parts. Because the main components are all inside the oil tank, we call it a combination transformer instead of a box type substation. But the combination transformer also has the function of a box type substation. There are six cable sockets installed on the high-voltage side, which can connect the transformer to the ring network power supply system and form a ring network power supply system with cabinet type ring mesh boxes or cable branch boxes. So, combination transformers, pedestal transformers, or pad mounted transformer all refer to the same product, with the main body being transformers, not substations.

Features

1. Fully sealed, compact in structure, fully insulated, aesthetically pleasing in appearance, with a volume only about one-third of that of a box type substation (European box type substation). Without the need for a power distribution room, it can be directly placed indoors or outdoors, as well as on both sides of the street and in green belts, reliably ensuring personal safety. It is not only a power supply facility, but also a decoration for the environment.

2. Adopting a dual fuse full range protection method greatly reduces operating costs.

3. It can be used for terminal power supply and ring network power supply, and the conversion is very convenient, ensuring the reliability and flexibility of power supply.

The 4.10kV conduit cable head can be plugged and unplugged multiple times under a load current of 200A, and can be used as a load switch in emergency situations, with the characteristics of an isolation switch.

5. Adopting domestic 9-type and 11 type distribution transformers, with low loss, low noise, and long service life.

Application scope

pad mounted transformer concentrate traditional transformers in a box type housing, with characteristics such as small size, light weight, low noise, low loss, and high reliability. They are widely used in residential communities, commercial centers, light stations, airports, factories, mines, enterprises, hospitals, schools, and other places

Technical parameter

Note:

1. If you need more information about specifications, please contact us.

2. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.

3. Customized production can be carried out according to the customer's drawings and technical parameters.

Why choose BEYONDT?

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.

2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.

3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
